Xantrex Renewable Energy Catalogue
Xantrex Renewable Energy Catalogue
Xantrex is a leader in advanced power electronics, specializing in renewable energy systems ranging from 600 Watts to 1.5 Mega Watts. Their technology efficiently converts raw electrical energy from sources like solar, wind, or microhydro into high-quality power. Xantrex products are used in mobile, backup, and test and measurement applications. The company is publicly listed on the Toronto Stock Exchange and had revenues of US$143 million in 2005. Headquartered in Vancouver, British Columbia, Xantrex has facilities in the USA, Spain, and England.
Xantrex offers a range of products including inverters, inverter/chargers, system components, battery chargers, and powerpacks. These products are designed to increase energy efficiency and provide reliable electricity for homes and businesses worldwide.
An inverter transforms DC power from renewable sources into AC electricity. Inverter/chargers combine an inverter, battery charger, and transfer switch, allowing for conversion of AC power from a generator into DC power to recharge batteries. These devices are popular for off-grid applications due to their ability to process multiple forms of incoming power.
Inverters produce two types of AC power: modified sine wave and sine wave. Modified sine wave inverters are less expensive and can power most household appliances, but may not be suitable for certain loads. Sine wave inverters replicate utility power and are suitable for sensitive electrical equipment.
The document includes a glossary explaining terms such as alternating current (AC), direct current (DC), grid, and photovoltaic (PV) array, among others.
Xantrex provides solutions for both off-grid and grid-tie systems. Off-grid systems consist of a renewable energy source, a battery bank, and an inverter, allowing for independent power production. Grid-tie systems use solar cells and a grid-tie inverter to convert solar energy into utility-grade AC power, which can be sold to the utility grid.
The GT Series inverters are designed for high performance and easy installation. They offer features such as superior PV energy harvest, peak inverter efficiency, and excellent thermal performance. The inverters are lightweight, compact, and suitable for both outdoor and indoor installations.
The document provides detailed specifications for various models of GT Series inverters, including electrical and mechanical specifications, operating temperature range, and warranty information.
- Models: GT100E, GT250E, GT500E.
- Specifications: Power ratings from 100 kW to 500 kW, nominal AC voltage of 400 Vac, and efficiency up to 97.2%.
- Features: Include DSP-based controls, anti-islanding protection, and remote monitoring capabilities.
- Compliance: CE marked and TÜV Rheinland approved, meeting various European directives.
- Models: Available in 24 and 48 Vdc models with power ratings of 3300 and 4500 watts.
- Features: Utility-grade sine wave power, programmable features, and three-stage battery charging.
- Applications: Suitable for off-grid and backup power solutions, with options for remote control and monitoring.
- Models: DR1512E, DR1524E, DR1548E, DR2424E.
- Specifications: Power ratings from 1500 VA to 2400 VA, with modified sine wave output.
- Features: High surge capacity, three-stage battery charging, and low idle current.
- Options: Include remote battery temperature sensor and remote control panel.
- All models feature protective functions against over/under voltage and frequency, over temperature, and over current.
- Cooling methods include forced convection cooling.
- Communication interfaces for remote monitoring and control are available.
The document outlines a range of solar inverters and inverter/chargers designed for efficient energy conversion and management, with a focus on reliability, compliance with safety standards, and adaptability to various power needs.
Models are available with different power outputs and configurations, including CR Series, Prosine Inverters, XPower Inverters, and XPower Micro Inverters. Each model has specific continuous output power, surge capability, output voltage, frequency, and waveform characteristics. Efficiency and input voltage ranges are also specified for each model.
The operating temperature range for most models is 0°C to 40°C (32°F to 104°F). Enclosures are typically indoor, ventilated, with a steel chassis and powder coat finish. Unit weights and dimensions vary by model, with warranties ranging from one to two years.
Models offer features such as automatic transfer switches, built-in battery charging, low and high battery voltage protection, audible alarms, and LED indicators. Optional accessories include remote controls, battery temperature sensors, and conduit boxes.
Products comply with CE mark standards and other regulatory directives, ensuring safety and compatibility with electrical systems.
Provides uninterrupted AC power with automatic transfer to battery power during outages. Available in 1000, 1500, and 2400 W models, suitable for common household loads.
Offer true sine wave output with less than 3% total harmonic distortion, suitable for sensitive electronic loads. Available in 1000 W and 1800 W models with high-frequency switching technology.
Convert 12 V DC battery power to 230 V AC power, available in 150, 300, and 500 W models. Suitable for recreational and mobile office equipment.
Compact inverters for mobile office equipment, converting vehicle battery power to standard utility power. Available in 75 W and 175 W models.
Designed to extend battery life with smart charging capabilities, available in various amperage ratings.
XC Chargers are advanced battery chargers designed for marine applications, capable of charging up to three different battery chemistries simultaneously. They are available in 12V and 24V models and are known for their reliability and safety features, including a drip-proof design and fuseless reverse polarity protection. The chargers support a wide range of input voltages (100-260 Vac), making them suitable for international use.
- Available in 12V (30A and 50A) and 24V (15A and 25A) models.
- Microprocessor-controlled, multi-stage charging algorithms.
- Three independently controlled output banks for different battery chemistries.
- Settings for various battery types including flooded, gel, AGM, and lead-calcium.
- Power Factor Corrected for efficient charging and battery equalization feature.
- Upgradeable for network communications with an invertible and detachable digital display.
- True reverse polarity protection.
- IP32 environmental enclosure rating.
- Over temperature and DC over voltage protection.
- Ignition protection.
- Output current ranges from 15A to 50A depending on the model.
- Input voltage compatibility: 100-260 Vac, 47-63 Hz.
- Charger efficiency ranges from 80% to 83%.
- Recommended battery size varies by model.
- Operating temperature range: 0 - 50°C.
- Storage temperature: -40°C to 80°C.
- Dimensions: 10.6 x 24 x 36.8 cm.
- Weight varies from 11 lb to 13.2 lb.
- Warranty: 2 years.
- Meets CSA, UL, and EMC standards.
- CE marked, meeting LVD and EMC directives.
The XPower Powerpack series provides portable power solutions for various applications, including emergency situations and outdoor activities. They feature built-in inverters, air compressors, and jump-start capabilities.
- Provides 175 watts of power with a built-in light and air compressor.
- Includes a sealed, non-spillable 12 amp-hour AGM battery.
- Features reverse polarity detection and jumper clips for vehicle jump-starting.
- Offers 300 watts of power with a 20 amp-hour AGM battery.
- Includes a 17 bar air compressor and built-in fluorescent lights.
- Smart circuitry protects against reverse polarity connections.
- Delivers 400 watts of power with a 20 amp-hour AGM battery.
- Features a 17 bar air compressor and built-in light.
- Designed for safe and efficient jump-starting with overload protection.
- Operating temperature: 0°C - 40°C.
- Storage temperature: 0°C - 30°C.
- Warranty: 2 years.
This document provides technical specifications and features of the C Series charge controllers, including models C12, C35, C40, and C60, as well as various accessories and options for battery charging and monitoring.
- C12 Model: Functions as a charge controller and lighting controller with adjustable lighting run time. It includes field adjustable low voltage disconnect and reconnect points, and a five-minute low battery disconnect warning.
- C Series Models (C35, C40, C60): Configurable for different voltage operations (12, 24, and 48 Vdc). They can be used as charge, diversion, or load controllers and feature a multi-color charge status LED.
- Protection: All models include electronic protection against short-circuit, overload, over temperature, and reverse polarity conditions.
- Optional Accessories: Include digital meters (CM and CM/R) for displaying volts, amps, and cumulative amp hours, and a battery temperature sensor (BTS) for increased charging precision.
- Voltage Configurations: C35 and C60 support 12 and 24 Vdc, while C40 supports 12, 24, and 48 Vdc.
- Max PV Open Circuit Array Voltage: Ranges from 55 Vdc to 125 Vdc depending on the model.
- Charging/Load Current: Varies from 35 amps DC to 60 amps DC.
- Operating Temperature Range: 32°F to 104°F (0°C to 40°C).
- Enclosure Type: Indoor, ventilated, powder-coated steel.
- Warranty: 2 years.
- UL Listed to UL 1741 and CSA standards, CE compliant.
- Parallel Stacking Capability: Allows connecting two identical SW Inverters in parallel for increased output power.
- DC Disconnects and Breakers: Provide safety and meet electrical code requirements for circuit protection.
- Ground Fault Breakers: Disconnect the solar array if a ground fault occurs.
- Battery Charging and Monitoring: Includes Truecharge Battery Chargers and Battery Temperature Sensors for precise charging.
The document outlines the technical specifications, features, and optional accessories for the C Series charge controllers, emphasizing their versatility, protection features, and compliance with regulatory standards.
Catalog excerpts

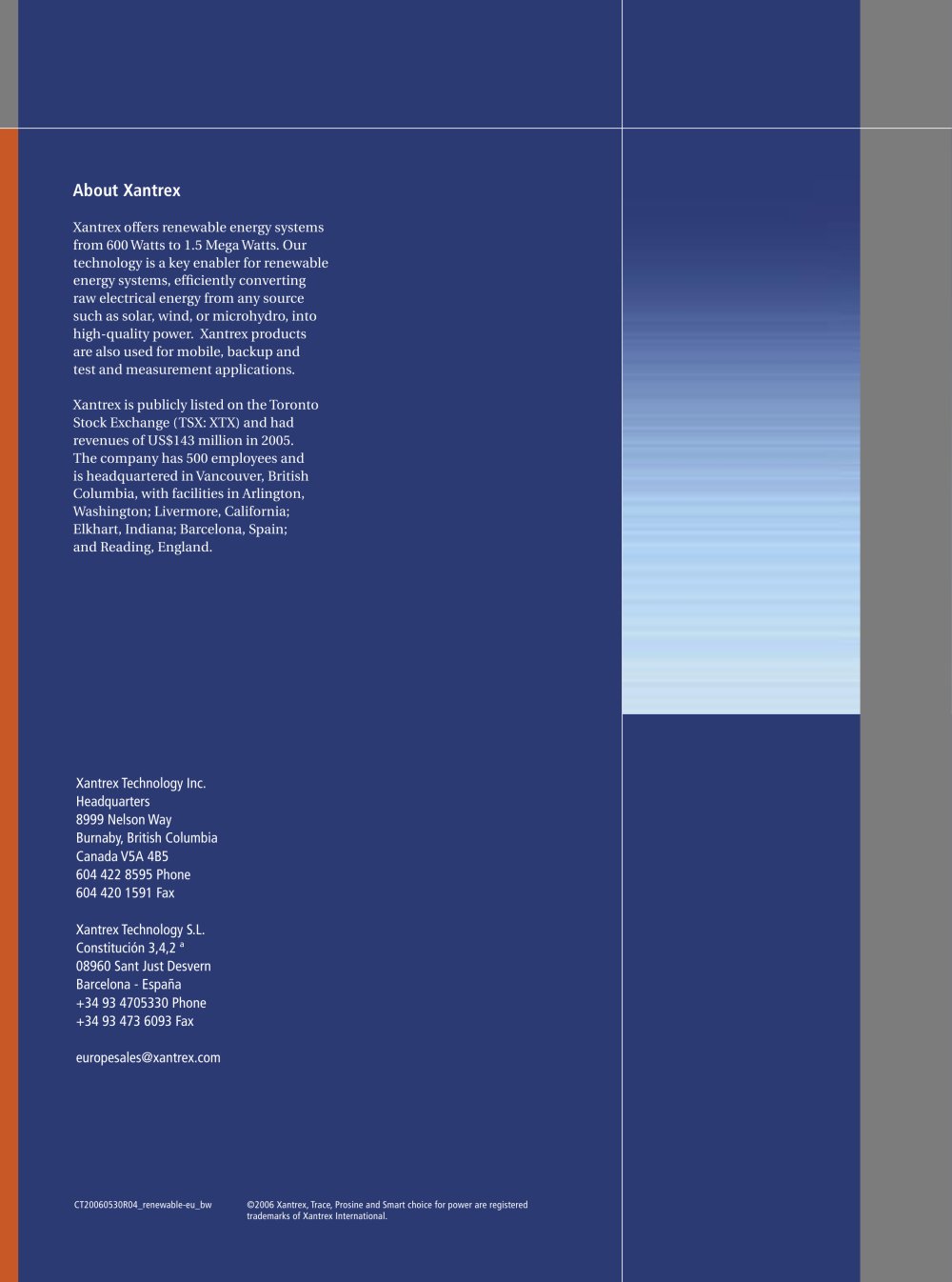

About Xantrex Xantrex offers renewable energy systems from 600 Watts to 1.5 Mega Watts. Our technology is a key enabler for renewable energy systems, efficiently converting raw electrical energy from any source such as solar, wind, or micro hydro, into high-quality power. Xantrex products are also used for mobile, backup and test and measurement applications. Xantrex is publicly listed on the Toronto is headquartered in Vancouver, British Columbia, with facilities in Arlington, Washington; Livermore, California; Elkhart, Indiana; Barcelona, Spain; Burnaby, British Columbia 08960 Sant Just Desvern Barcelona - España CT20060530R04_renewable-eu_bw ©2006 Xantrex, Trace, Prosine and Smart choice for power are registered trademarks of Xantrex International.
Open the catalog to page 1
Smart choice for power Renewable Energy
Open the catalog to page 2
Renewable Energy & Backup Power Catalog About Xantrex Xantrex Technology Inc. is a world leader in advanced power electronics. Our technology is a key enabler for renewable energy systems, efficiently converting raw electrical energy from any source such as solar, wind, or micro hydro, into high-quality household power. More than 200,000 homes and businesses rely on Xantrex power electronics to bring them electricity anytime, anywhere. Xantrex products allow customers around the world to increase energy efficiency and freedom, while making a positive impact on Almost a quarter century of experience...
Open the catalog to page 3
Modern inverters have caused a quiet revolution in the way we live with indepen- dent power systems, providing silent AC electricity anytime, anywhere. An inverter is a sophisticated microprocessor controlled device that transforms the DC power collected from your renewable energy source into household (AC) electricity. An inverter that is connected to the grid allows you to sell the excess renewable power you harvest to the utility company. An inverter/charger combines an inverter, battery charger, and transfer switch in one box. In addition to converting DC power from the renewable energy source...
Open the catalog to page 4
The type of electricity supplied by the utility company. The unique characteristic of this form of electricity is that it reverses direction at regular power reverses flow 50 times a second, hence the rating 50 Hz (cycles). electrical current. flowing for one hour. Expresses the relationship between current (amps) A group of solar electric modules wired together. The rate of flow of electrical charge. The flow of amps is often expressed as The type of electricity stored in batteries and generated by solar electric devices. Current flows in a single direction. A conductive medium in which the...
Open the catalog to page 5
A control circuit that stops the flow of electricity from batteries to loads when battery voltage drops to dangerously low Modified Sine Wave Also called a modified square wave, this type of waveform emulates a sine wave using a series of small steps to create An electrical system that is not connected to a utility distribution grid. Overload/Overcurrent Protection A control circuit designed to protect an inverter or similar device from loads exceeding its output capacity. (A fuse, protection device.) Parallel Wiring Batteries or PV modules, wired together to increase ampacity, while voltage...
Open the catalog to page 6
System Basics Off-grid system with battery and generator backup Solar (PV) Panels Controller DC Disconnect Batteries Basic Off-Grid System With a Xantrex off-grid system, you can easily produce your own power without the expense and environmental impact of extending power lines, or relying A basic off-grid system consists of a renewable energy source, which generates DC power, a battery bank that stores the DC power, and a Xantrex inverter. Our inverter is the intelligent center of a renewable power system, seamlessly converting DC power to clean, reliable AC electricity for your needs. The system...
Open the catalog to page 7
Grid tie system using GT Series Inverter Utility Grid Utility Meter Basic Grid Tie System A basic grid tie system consists of solar cells and a Xantrex grid-tie inverter. Solar cells take the sun's energy and turn it into DC electricity. The Xantrex inverter turns the DC electricity generated by the solar cells into utility grade AC power which can be sold to the utility grid. A grid tie system is an effective way to obtain economical benefits, increase green energy production and improve Large-scale solar electrical systems play an important part in conservation and energy production, and Xantrex...
Open the catalog to page 8
GT Series Grid Tie Inverters (Single phase) Xantrex new inverters make installation easier and more affordable When Xantrex set out to develop the Grid Tie Solar Inverters we listened to the experts - renewable energy dealers and installers. The result is high performance inverters that make utility interactive installations easier and more cost effective. Our high performance PV string inverters offer high efficiency, lower installed cost, improved aesthetics and high reliability. The GT Series inverters are high quality products that offer the best price/performance ratio in High Performance...
Open the catalog to page 9
Maximum AC power output 2500W 3800W 2800W 3800W Nominal AC power output 2300W 3500W 2500W 3300W DC input voltage range 195to600Vdc 195to600Vdc 195to600Vdc 195to600Vdc Peak power tracking voltage range 195 to 550Vdc 195 to 550Vdc 195 to 550Vdc 195 to 550Vdc Peak inverter efficiency 95.0% (includes transformer) 95.30% (includes transformer) 95.0% (includes transformer) 95.30% (includes transformer) Euro efficiency 94.0% (includes transformer) 94.50% (includes transformer) 94.0%(includes transformer) 94.50% (includes transformer) Maximum continuous output current 12.5ampsAC 19ampsAC 14.5ampsAC 19ampsAC...
Open the catalog to page 10
From 100 kW to 500 kW Three-Phase Power Conversion Center Multiple GT100E inverters can be paralleled for large power installations. The Xantrex Grid Tie Inverters are based on a reliable platform that is used in grid-connected photovoltaic and wind turbine applications in North America and Europe. Designed to be easy to install and operate, the GT three-phase invert- ers automate start-up, shutdown, and fault detection. They incorporate advanced Maximum Power Point Tracking Technology to maximize the energy harvested from a PV array. To minimize power losses during the conversion process, the...
