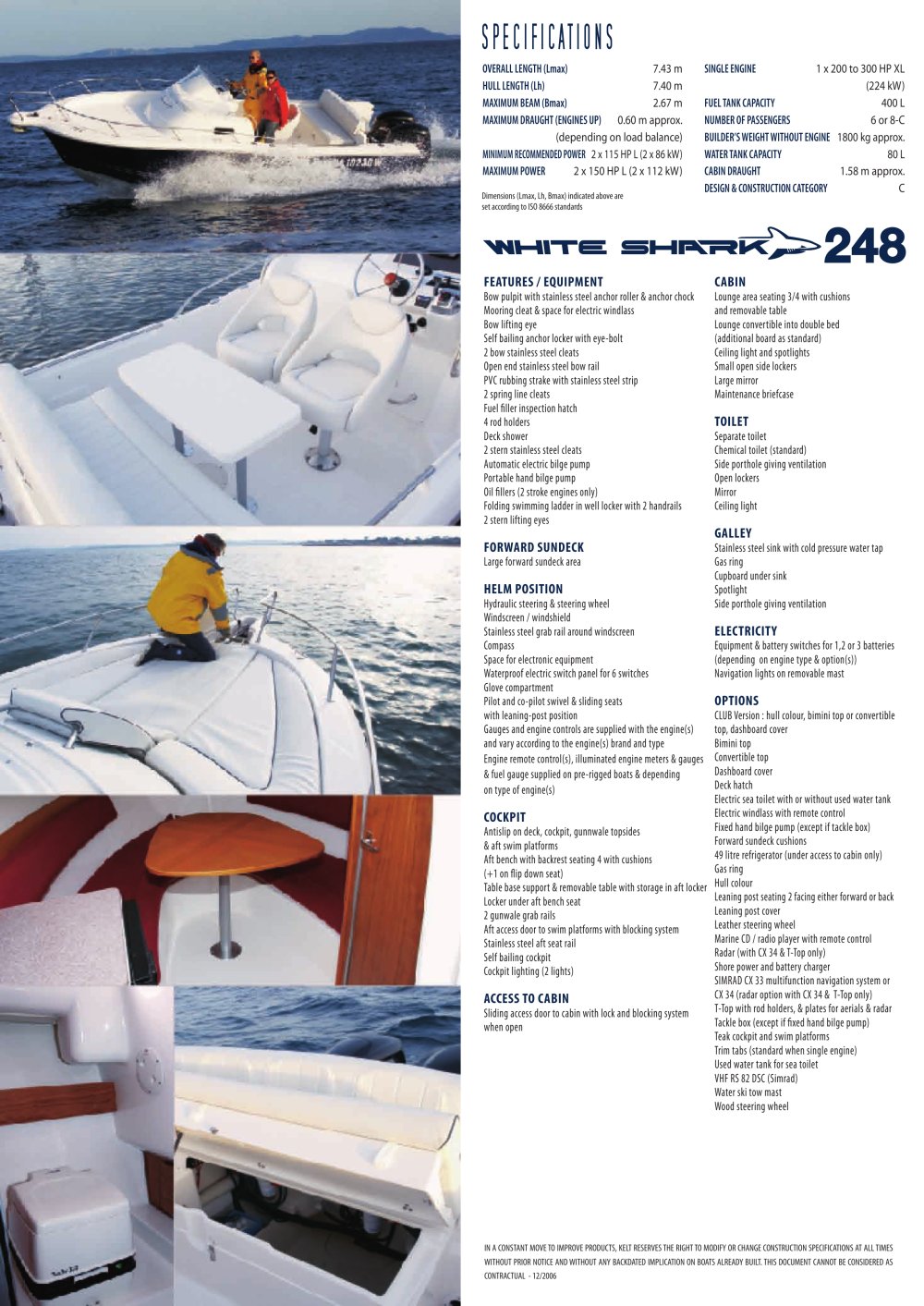

OVERALL LENGTH (Lmax) 7.43 m MAXIMUM BEAM (Bmax) 2.67 m MAXIMUM DRAUGHT (ENGINES UP) 0.60 m approx. (depending on load balance) MINIMUM RECOMMENDED POWER 2 x 115 HP L (2 x86 kW) Dimensions (Lmax, Lh, Bmax) indicated above are Bow pulpit with stainless steel anchor roller & anchor chock Mooring cleat & space for electric windlass Self balling anchor locker with eye-bolt 2 bow stainless steel cleats Open end stainless steel bow rail PVC rubbing strake with stainless steel strip 2 spring line cleats Fuel filler Inspection hatch Deck shower 2 stern stainless steel cleats Automatic electric bilge pump Portable hand bilge pump Oilfillers (2 stroke engines only) Folding swimming ladder in well locker with 2 handrails 2 stern lifting eyes FORWARD SUNDECK Large forward sundeckarea HELM POSITION Hydraulic steering & steering wheel Stainless steel grab rail around windscreen Space for electronic equipment Waterproof electric switch panel for 6 switches Glove compartment Pilot and co-pilot swivel & sliding seats with leaning-postposition Gauges and engine controls are supplied with the englne(s) and vary according to the englne(s) brand and type Engine remote control(s), illuminated engine meters & gauges & fuel gauge supplied on pre-rlgged boats & depending Sliding access door to cabin with lock and blocking system when open FUEL TANK CAPACITY 400 L BUILDER'S WEIGHT WITHOUT ENGINE 1800 kg approx. WATER TANK CAPACITY 80 L CABIN DRAUGHT 1.58 m approx. DESIGN & CONSTRUCTION CATEGORY C Lounge area seating 3/4 with cushions Lounge convertible Into double bed (additional board as standard) Celling light and spotlights Small open side lockers Large mirror Maintenance briefcase Separate toilet Chemical toilet (standard) Side porthole giving ventilation Open lockers Celling light Stainless steel sink with cold pressure watertap Cupboard under sink Side porthole giving ventilation Equipments battery switches for 1,2 or 3 batteries (depending on engine type & optlon(s)) Navigation lights on removable mast CLUB Version : hull colour, blminl top or convertible top,dashboard cover Dashboard cover Deck hatch Electric sea toilet with or without used water tank Electric windlass with remote control Fixed hand bilge pump (except if tackle box) Forwardsundeck cushions 49 litre refrigerator (under access to cabin only) Hull colour Leaning post seating 2 facing either forward or back Leaning post cover Leather steering wheel Marine CD / radio player with remote control Radar (with CX 34 & T-Top only) Shore power and battery charger SIMRAD CX 33 multifunction navigation system or CX 34 (radar option with CX 34 & T-Top only) I-Top with rod holders, & plates for aerials & radar Tackle box (except If fixed hand bilge pump) leak cockpit and swim platforms Trim tabs (standard when single engine) Used watertankforsea toilet Wood steering wheel Antlsllp on deck, cockpit, gunnwale topsides Aft bench with backrest seating 4 with cushions (+1 on flip down seat) lable base support & removable table with storage in aft locker Locker under aft bench seat 2 gunwale grab rails Aft access door to swim platforms with blocking system Stainless steel aft seat rail Self balling cockpit Cockpit lighting (2 lights) IN A CONSTANT MOVE TO IMPROVE PRODUCTS, KELT RESERVES THE RIGHT TO MODIFY OR CHANGE CONSTRUCTION SPECIFICATIONS AT ALL TIMES WITHOUT PRIOR NOTICE AND WITHOUT ANY BACKDATED IMPLICATION ON BOATS ALREADY BUILT. THIS DOCUMENT CANNOT BE CONSIDERED AS
