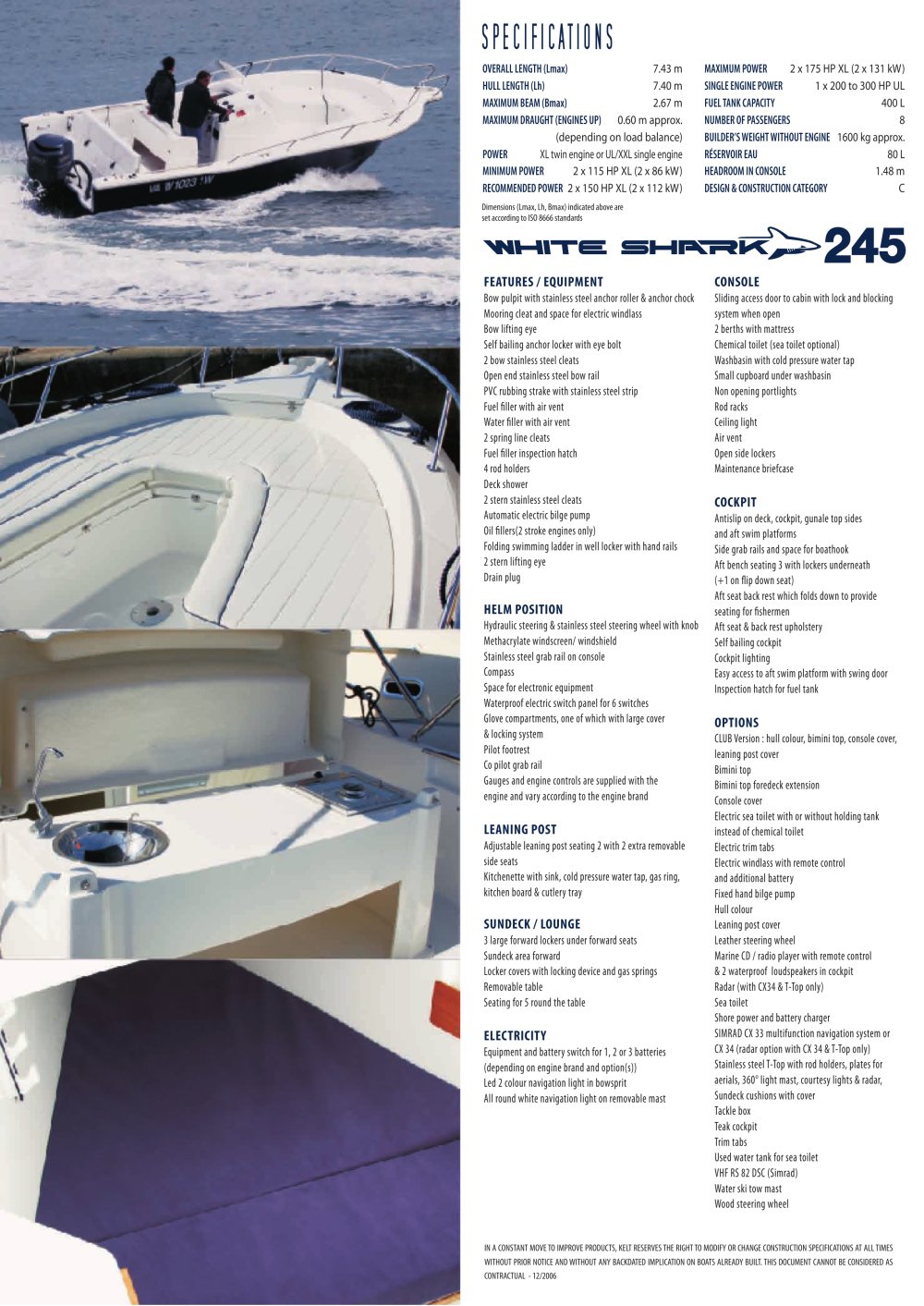

245 GB
1Pages

OVERALL LENGTH(Lmax] HULL LENGTH(Lh) MAXIMUM BEAM (Bmax] MAXIMUM DRAUGHT (ENGINES U (depending on load balance) POWER XLtwin engine or UL/XXL single engine Dimensions (Lmax, Lh, Bmax) indicated above are SINGLE ENGINE POWER 1 x 200 to 300 HP UL FUEL TANK CAPACITY 400 L BUILDER'S WEIGHT WITHOUT ENGINE 1600 kg approx. DESIGN & CONSTRUCTION CATEGORY C Bow pulpit with stainless steel anchor roller & anchor chock Mooring cleat and space for electric windlass Self bailing anchor locker with eye bolt 2 bow stainless steel cleats Open end stainless steel bow rail PVC rubbing strake with stainless steel strip Fuel filler with air vent Water filler with air vent 2 spring line cleats Fuel filler inspection hatch Deck shower 2 stern stainless steel cleats Automatic electric bilge pump Oil fi I le rs (2 stroke engines only) Folding swimming ladder in well locker with hand rails Drain plug HELM POSITION Hydraulic steering & stainless steel steering wheel with knob Methacrylate windscreen/ windshield Stainless steel grab rail on console Space for electronic equipment Waterproof electric switch panel for 6 switches Glove compartments, one of which with large cover Slocking system Pilot footrest Co pilot grab rail Gauges and engine controls are supplied with the engine and vary according to the engine brand LEANING POST Adjustable leaning post seating 2 with 2 extra removable side seats Kitchenette with sink, cold pressure water tap, gas ring, kitchen boards cutlery tray 3 large forward lockers underforward seats Sundeck area forward Locker covers with locking device and gas springs Removable table Seating for 5 round the table Equipment and battery switch for 1,2 or 3 batteries (depending on engine brand and option(s)) Led 2 colour navigation light in bowsprit All round white navigation light on removable mast Sliding access doorto cabin with lock and blocking system when open 2 berths with mattress Chemical toilet (sea toilet optional) Washbasin with cold pressure water tap Small cupboard under washbasin Ceiling light Open side lockers Maintenance briefcase Antislip on deck, cockpit, gunale top sides Side grab rails and space for boathook Aft bench seating 3 with lockers underneath (+1 on flip down seat) Aft seat back rest which folds down to provide Aft seat& back rest upholstery Self bailing cockpit Cockpit lighting Easy access to aft swim platform with swing door Inspection hatch for fuel tank CLUB Version : hull colour, biminitop, console cover, leaning post cover Console cover Electric sea toilet with or without holding tank Instead of chemical toilet Electric trim tabs Electric windlass with remote control Fixed hand bilge pump Hull colour Leaning post cover Leather steering wheel Marine CD / radio player with remote control & 2 waterproof loudspeakers in cockpit Radar (with CX34 & T-Top only) Shore power and battery charger SIMRAD CX 33 multifunction navigation system or CX 34 (radar option with CX 34 & T-Top only) Stainless steel T-Top with rod holders, plates for aerials, 360° light mast, courtesy lights & radar, Sundeckcushions with cover leak cockpit Trim tabs Used watertankforsea toilet Wood steering wheel IN A CONSTANT MOVE TO IMPROVE PRODUCTS, KELT RESERVES THE RIGHT TO MODIFY OR CHANGE CONSTRUCTION SPECIFICATIONS AT ALL TIMES WITHOUT PRIOR NOTICE AND WITHOUT ANY BACKDATED IMPLICATION ON BOATS ALREADY BUILT. THIS DOCUMENT CANNOT BE CONSIDERED AS
