W50 ACE

Product catalog summary

Principal Characteristics
The Warwick 50 EXL is a sportcruiser with a length overall (LOE) of 15.240m (50ft 00in) and a length overall (LOA) of 14.825m (48ft 08in). It has a draft of 0.600m (2ft 00in) and a beam of 4.400m (14ft 05in). The displacement is 9,367kg (9.2 tons), with a water capacity of 1,000 litres (220 gal) and a fuel capacity of 1,400 litres (310 gal). The vessel is powered by two 184KW (247 hp) engines, achieving a speed of 27 knots.

Design and Construction
The Warwick 50 is designed for flexibility, accommodating various building methods and engine configurations. It can be constructed using materials such as alloy, wood composite, GRP, or high-tech composites. The standard model features a composite of glass/ply/glass. The design allows for speeds ranging from 25 to 50 knots, making it suitable for applications like coastal patrols and police work.

Features and Amenities
The sportcruiser includes an airy and bright saloon with large sliding windows and an optional electric sunroof. The interior is low-maintenance, with lacquered finishes requiring minimal upkeep. The saloon and cockpit are on a single level, separated by a stainless steel and glass sliding door. A transom platform facilitates easy water access, and a rigid bottom inflatable tender is stored in an aft locker.

Accommodations
The vessel offers a spacious owner's cabin with a king-size bed and a double guest cabin. An additional 'dungeon' under the main saloon provides a playful space for children. The galley and accommodations are located forward and down from the saloon.

Performance
The Warwick 50 features a light displacement and shallow draft, with a constant deadrise hull shape that performs well in coastal conditions. It is designed for high-speed cruising with a focus on comfort and elegance, providing a low-maintenance, high-performance experience for those who enjoy life with verve and vigor.

Catalog excerpts

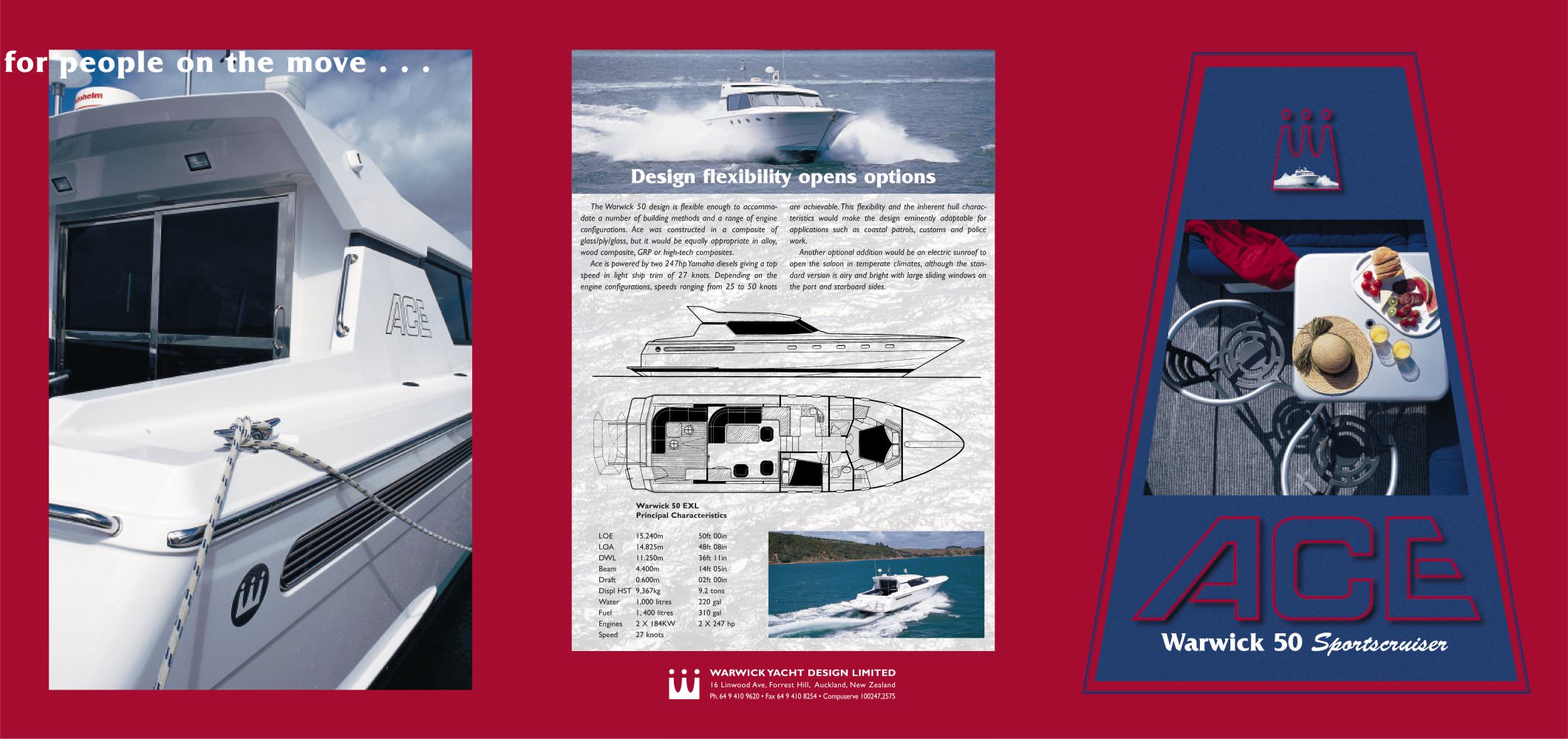

for people on the move . . . Design flexibility opens options The Warwick 50 design is flexible enough to accommodate a number of building methods and a range of engine configurations. Ace was constructed in a composite of glass/ply/glass, but it would be equally appropriate in alloy, wood composite, GRP or high-tech composites. Ace is powered by two 247hp Yamaha diesels giving a top speed in light ship trim of 27 knots. Depending on the engine configurations, speeds ranging from 25 to 50 knots are achievable. This flexibility and the inherent hull characteristics would make the design eminently adaptable for applications such as coastal patrols, customs and police work. Another optional addition would be an electric sunroof to open the saloon in temperate climates, although the standard version is airy and bright with large sliding windows on the port and starboard sides. Warwick 50 EXL Principal Characteristics LOE LOA DWL Beam Draft Displ HST Water Fuel Engines Speed 15.240m 14.825m 11.250m 4.400m 0.600m 9,367kg 1,000 litres 1, 400 litres 2 X 184KW 27 knots 50ft 00in 48ft 08in 36ft 11in 14ft 05in 02ft 00in 9.2 tons 220 gal 310 gal 2 X 247 hp Warwick 50 Sportscruiser WARWICK YACHT DESIGN LIMITED 16 Linwood Ave, Forrest Hill, Auckland, New Zealand Ph. 64 9 410 9620 • Fax 64 9 410 8254 • Compuserve 100247,2575

Open the catalog to page 1

I Effortless high speed or people of all ages who enjoy life with a dash of verve and vigour.This low-profile sportcruiser concentrates on the essentials. In a busy world, time is precious. For those who want to range beyond the herd, but still have to main tain schedules, high performance cruising in a low-maintenance package is the answer. At 50ft the Ace design has big-boat attributes of power and performance, but is easily manageable. For couples who like to escape alone on occasions, this is perfectly feasible. In more gregarious moods, there is always space for children or guests. Constructed...

Open the catalog to page 2

W50 ACE

W50 ACE
