Product catalog summary

Overview: The document provides a detailed list of components and accessories for the Safeflame paraffin stove 90, categorized into electronics, wire sets, combustion blower, burner, fuel systems, structure parts, and accessories.

Electronics: This section includes various electronic components such as thermostats, control units, and relays. Key items include the aftercooling thermostat (80°C), overheat thermostat (120°C), and a glow relay by Omron.

Wire Sets: The document lists power cables and wire sets for control panels, specifying lengths of 4 meters and 2 meters respectively.

Combustion Blower: A single combustion blower is listed, essential for the stove's operation.

Burner: Components include a ceramic burner bottom pot, burner cylinder, cork gasket plate, and various filters and pipes necessary for fuel vaporization and soot management.

Fuel Systems: This section details connectors, fuel filters, hoses, and pumps. Notable items include the fuel pump FC 1, which comes with an assembly plate, and various connector nuts and extension connectors.

Structure Parts: Includes ceramic plates, gasket sets, and heat insulation components, crucial for maintaining the stove's structural integrity and thermal efficiency.

Accessories: A range of accessories such as fuel tanks of different capacities, exhaust pipes, heat insulation materials, and mounting kits are listed. These accessories support the stove's functionality and user convenience.

Catalog excerpts

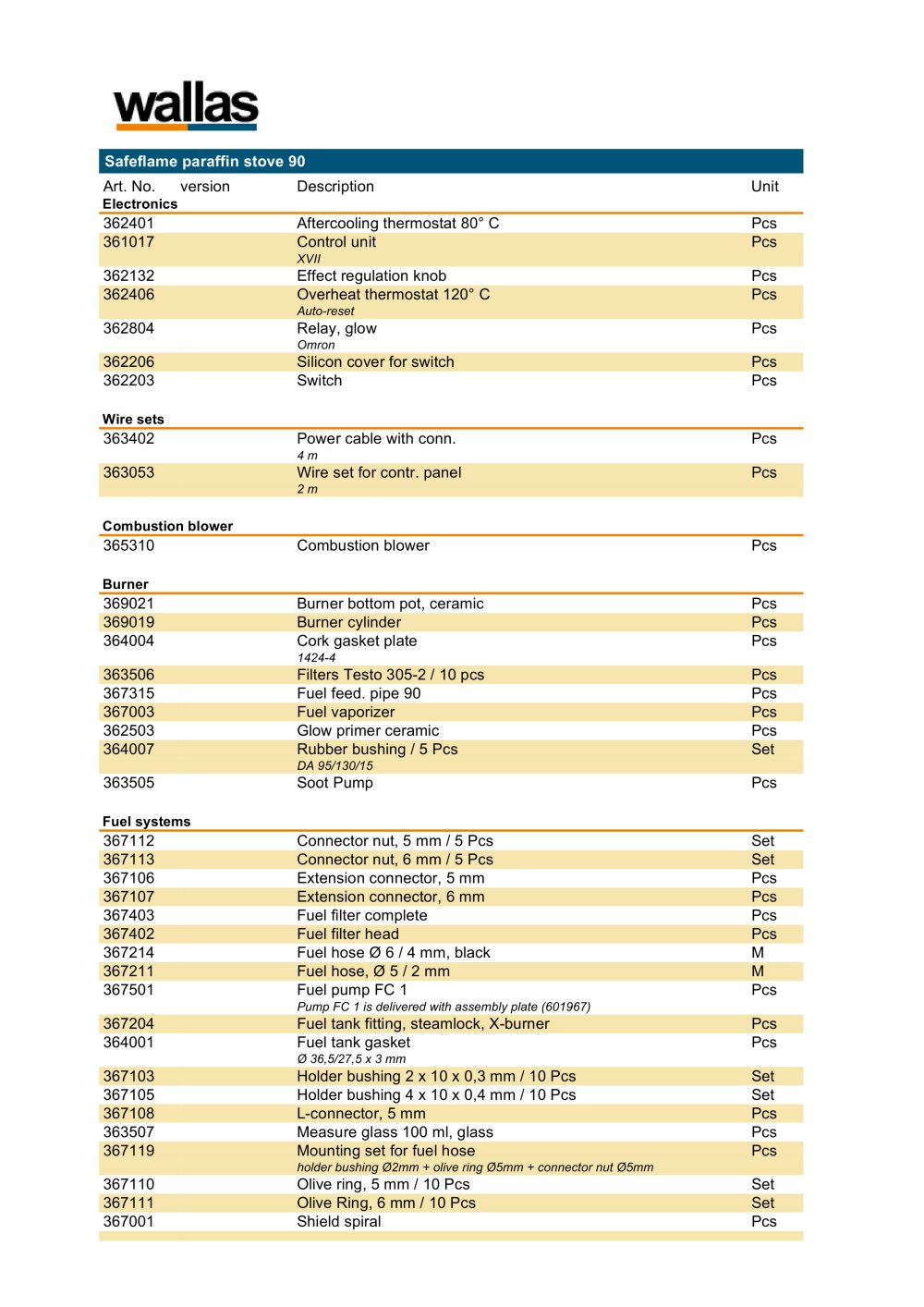

Art. No. version Description Unit 362132 Effect regulation knob Pes 362206 Silicon cover for switch Pes Wire sets_ 363402 Power cable with conn. Pes 363053 Wire set for contr. panel Pes Combustion blower_ 369021 Burner bottom pot, ceramic Pes 364004 Cork gasket plate Pes 367315 Fuel feed, pipe 90 Pes 362503 Glow primer ceramic Pes Fuel systems_ 367403 Fuel filter complete Pes 367402 Fuel filter head Pes 367214 Fuel hose 0 6 IA mm, black M Pump FC 1 is delivered with assembly plate (601967) 367204 Fuel tank fitting, steamlock, X-burner Pes 364001 Fuel tank gasket Pes 363507 Measure glass 100 ml, glass Pes 367119 Mounting set for fuel hose Pes holder bushing 02mm + olive ring 05mm + connector nut 05mm

Open the catalog to page 1

367208 Tank fitting compi. Pes Structure parts_ 364026 Gasket set for Ceramic plates Pes 1028 Exhaust pipe, 0 28 mm, Stainless M 1030 Heat insulation 0 30 mm, fiber glass M 2466 Sealable deck lead-through Pes 30016 Solid Fuel Filter Pes

Open the catalog to page 2
