Overview: This document provides a detailed list of components and accessories for the Diesel stove-oven combination model 87D. It includes electronics, wire sets, burners, fuel systems, main blower, structure parts, and accessories.

Electronics: The electronics section lists components such as a jumper set, pump boost switch, and a relay kit specific to the 87D model.

Wire Sets: Includes a control panel wire set measuring 0.8 meters.

Burner Components: Key parts include a bottom mat with a diameter of 85 mm, filters for Testo 305-2, a radiation element, and a soot pump.

Fuel Systems: This section details various connectors, fuel filters, hoses, and tubes. Notable items include a complete fuel filter, external standard fuel filter, and copper fuel tubes of different lengths.

Main Blower: Features an intermediate blower specific to the 87D model.

Structure Parts: Includes a rubber gasket with specified dimensions.

Accessories: A comprehensive list of accessories such as cables, caps for fuel tanks of various sizes, drainage locks, electrical insulation sets, exhaust pipes, fuel filter sets, and more. It also includes a toaster grill and solenoid valve specifications.

Critical Information: The document highlights essential components for the operation and maintenance of the diesel stove-oven combination, emphasizing the importance of compatible parts and accessories for optimal performance.

Catalog excerpts

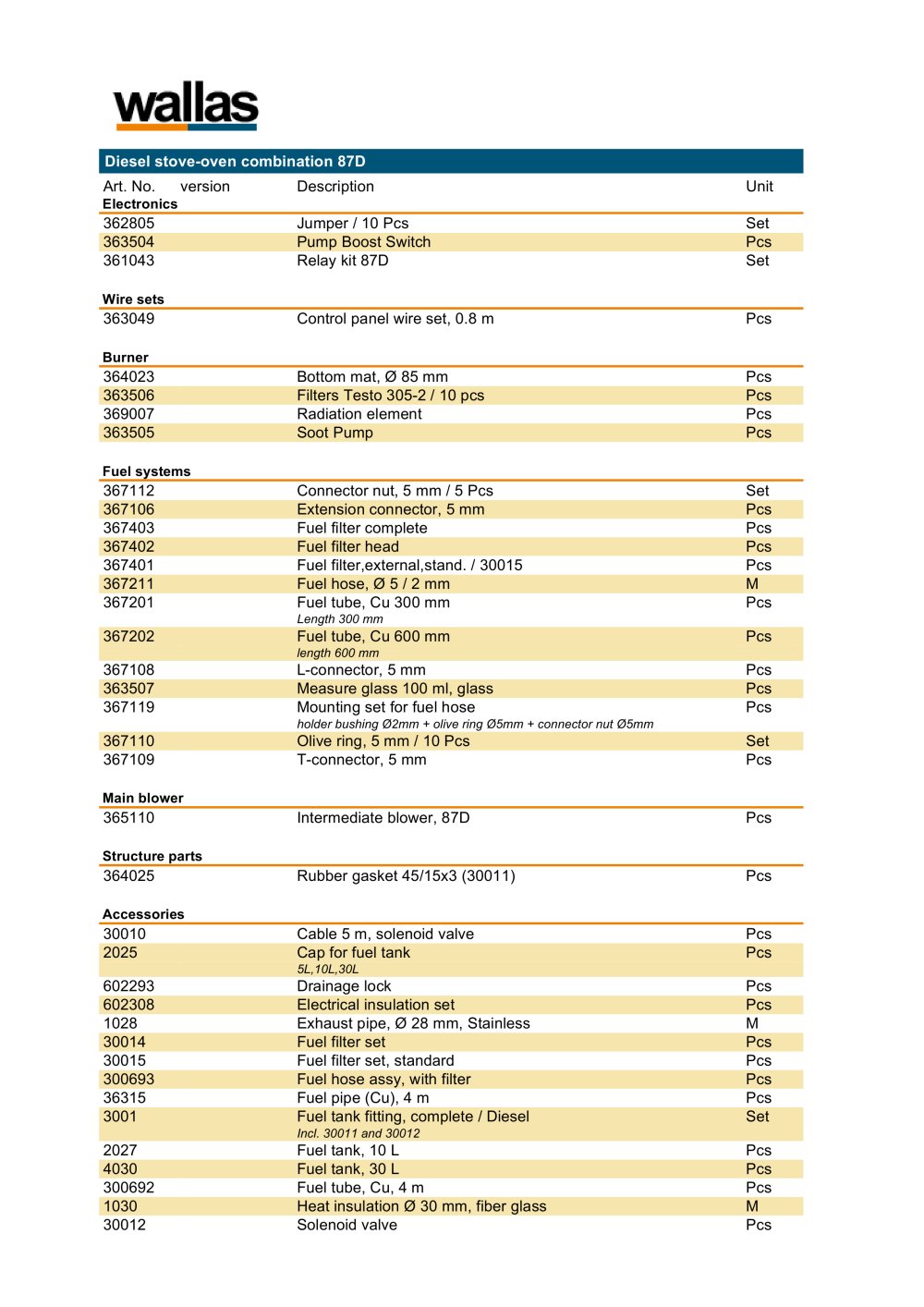

Diesel stove-oven combination 87D Art. No. version Description Unit 363504 Pump Boost Switch Pes Wire sets_ 363049 Control panel wire set, 0.8 m Pes Fuel systems_ 367403 Fuel filter complete Pes 367402 Fuel filter head Pes 363507 Measure glass 100 ml, glass Pes 367119 Mounting set for fuel hose Pes holder bushing 02mm + olive ring 05mm + connector nut 05mm Main blower_ Structure parts_ 30010 Cable 5 m, solenoid valve Pes 1028 Exhaust pipe, 0 28 mm, Stainless M 30015 Fuel filter set, standard Pes 300693 Fuel hose assy, with filter Pes 3001 Fuel tank fitting, complete / Diesel Set 1030 Heat insulation 0 30 mm, fiber glass M
