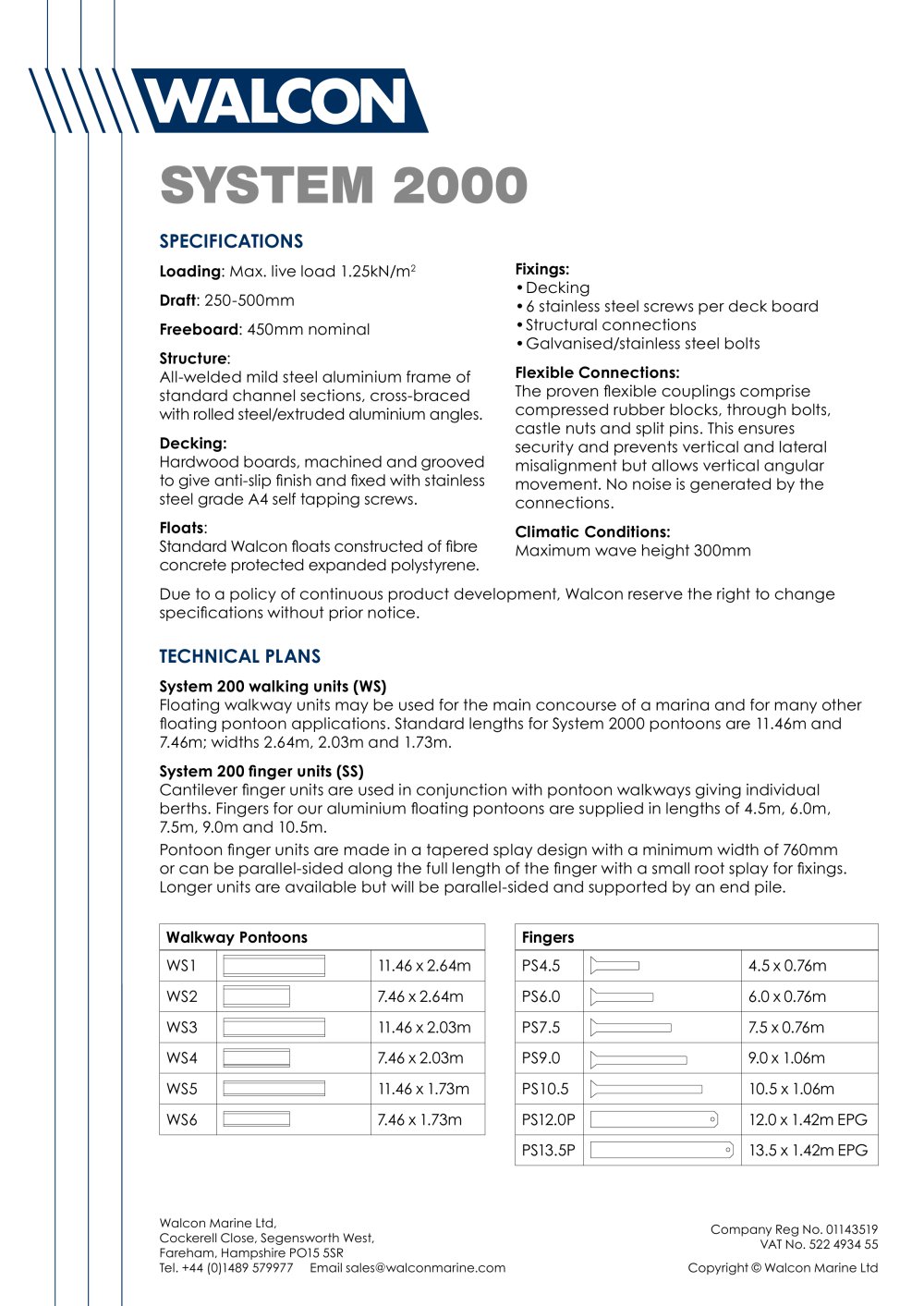

System 2000
1Pages

Fixings: • Decking • 6 stainless steel screws per deck board • Structural connections • Galvanised/stainless steel bolts Flexible Connections: The proven flexible couplings comprise compressed rubber blocks, through bolts, castle nuts and split pins. This ensures security and prevents vertical and lateral misalignment but allows vertical angular movement. No noise is generated by the connections. Climatic Conditions: Maximum wave height 300mm WALCON SYSTEM 2000 SPECIFICATIONS Loading: Max. live load 1.25kN/m2 Draft: 250-500mm Freeboard: 450mm nominal Structure: All-welded mild steel aluminium frame of standard channel sections, cross-braced with rolled steel/extruded aluminium angles. Decking: Hardwood boards, machined and grooved to give anti-slip finish and fixed with stainless steel grade A4 self tapping screws. Floats: Standard Walcon floats constructed of fibre concrete protected expanded polystyrene. Due to a policy of continuous product development, Walcon reserve the right to change specifications without prior notice. TECHNICAL PLANS System 200 walking units (WS) Floating walkway units may be used for the main concourse of a marina and for many other floating pontoon applications. Standard lengths for System 2000 pontoons are 11.46m and 7.46m; widths 2.64m, 2.03m and 1.73m. System 200 finger units (SS) Cantilever finger units are used in conjunction with pontoon walkways giving individual berths. Fingers for our aluminium floating pontoons are supplied in lengths of 4.5m, 6.0m, 7.5m, 9.0m and 10.5m. Pontoon finger units are made in a tapered splay design with a minimum width of 760mm or can be parallel-sided along the full length of the finger with a small root splay for fixings. Longer units are available but will be parallel-sided and supported by an end pile. Company Reg No. 01143519 VAT No. 522 4934 55 Copyright © Walcon Marine Ltd Walcon Marine Ltd, Cockerell Close, Segensworth West, Fareham, Hampshire PO15 5SR Tel. +44 (0)1489 579977 Email sales@walconmarine.com
