Catalog excerpts

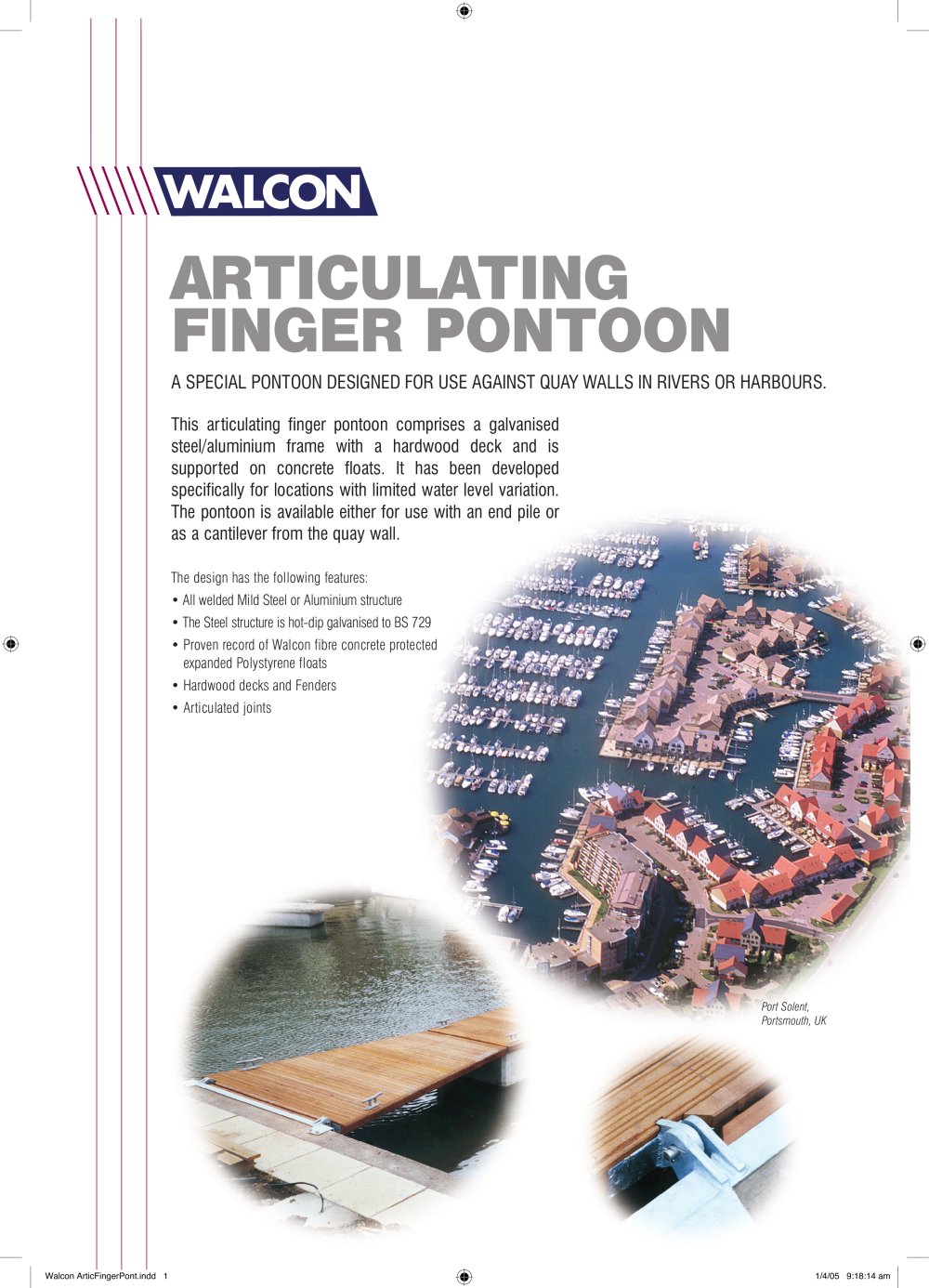

Artic Finger Pont - 1

ARTICULATING FINGER PONTOON A SPECIAL PONTOON DESIGNED FOR USE AGAINST QUAY WALLS IN RIVERS OR HARBOURS. This articulating finger pontoon comprises a galvanised steel/aluminium frame with a hardwood deck and is supported on concrete floats. It has been developed specifically for locations with limited water level variation. The pontoon is available either for use with an end pile or as a cantilever from the quay wall. The design has the following features: • All welded Mild Steel or Aluminium structure • The Steel structure is hot-dip galvanised to BS 729 • Proven record of Walcon fibre concrete protected expanded Polystyrene floats • Hardwood decks and Fenders • Articulated joints Port Solent, Portsmouth, UK Walcon ArticFingerPont.indd 1 1/4/05 9:18:14 am

Open the catalog to page 1
Artic Finger Pont - 2

TECHNICAL SPECIFICATION Maximum live load 1.25kN/m2. All-welded mild steel/aluminium frame of standard channel sections, cross-braced with rolled steel/extruded aluminium angles. Ex 150x25 hardwood boards, planed, grooved to give anti slip surface and screwed to fenders and spines using grade A4 stainless steel screws. Standard Walcon floats constructed of fibre concrete protected expanded 6.N0. stainless steel screws per deck board. Structural connections. Galvanised/stainless steel bolts. FLEXIBLE CONNECTIONS The proven flexible couplings comprise compressed rubber blocks, through bolts,...

Open the catalog to page 2
