VideoRay Product Comparison Matrix

VideoRay Product Comparison Matrix

Product catalog summary

Product Overview: The document provides a detailed comparison of various VideoRay ROV models, including Scout, Scout X3, Explorer, Explorer X3, Pro, Pro 3, Pro 3XE, Pro 3XE GTO, and Deep Blue. Each model is evaluated based on specifications such as depth rating, speed, dimensions, weight, payload, camera capabilities, and more.

Specifications:

Depth Rating: Ranges from 250 ft (76m) for Scout models to 1000 ft (305m) for Deep Blue.
Maximum Speed: Varies from 1.9 knots for Scout models to 4.1 knots for Pro 3XE GTO and Deep Blue.
Dimensions: Most models share dimensions of 12 x 9 x 8.5 inches, with Pro 3XE GTO and Deep Blue slightly larger at 14.2 x 11 x 8.5 inches.
Weight: In-air weight ranges from 8.0 lbs (3.6 kgs) to 10.6 lbs (4.8 kgs).
Payload: Consistent across models at 2 lbs (0.9 kgs).

Camera and Video:

Front Camera: Resolution ranges from 420 lines for Scout models to 570 lines for others.
Rear Camera: Consistent resolution of 430 lines across applicable models.
Display Options: Video display monitors range from 7 inches to 15 inches, depending on the model.

Navigation and Control:

All models include on-board compass and depth sensors, with varying levels of control consoles from Economy to Professional.
PC control and interface for computer and sensors are available in higher-end models.

Tether and Accessories:

Standard tether length is 250 ft (76m), with performance tether at 131 ft (40m) and extension tether up to 1000 ft (305m).
Accessory support includes a 9-pin connector and various control kits.

Packaging and Warranty:

Shipping containers range from 2 to 3 cases, with system weights from 70 lbs (32kgs) to 180 lbs (81kgs).
All models come with a one-year limited warranty and an optional comprehensive support program.

Pricing: Prices range from $5,995 for the Scout to $46,500 for the Deep Blue, reflecting the capabilities and features of each model.

Catalog excerpts

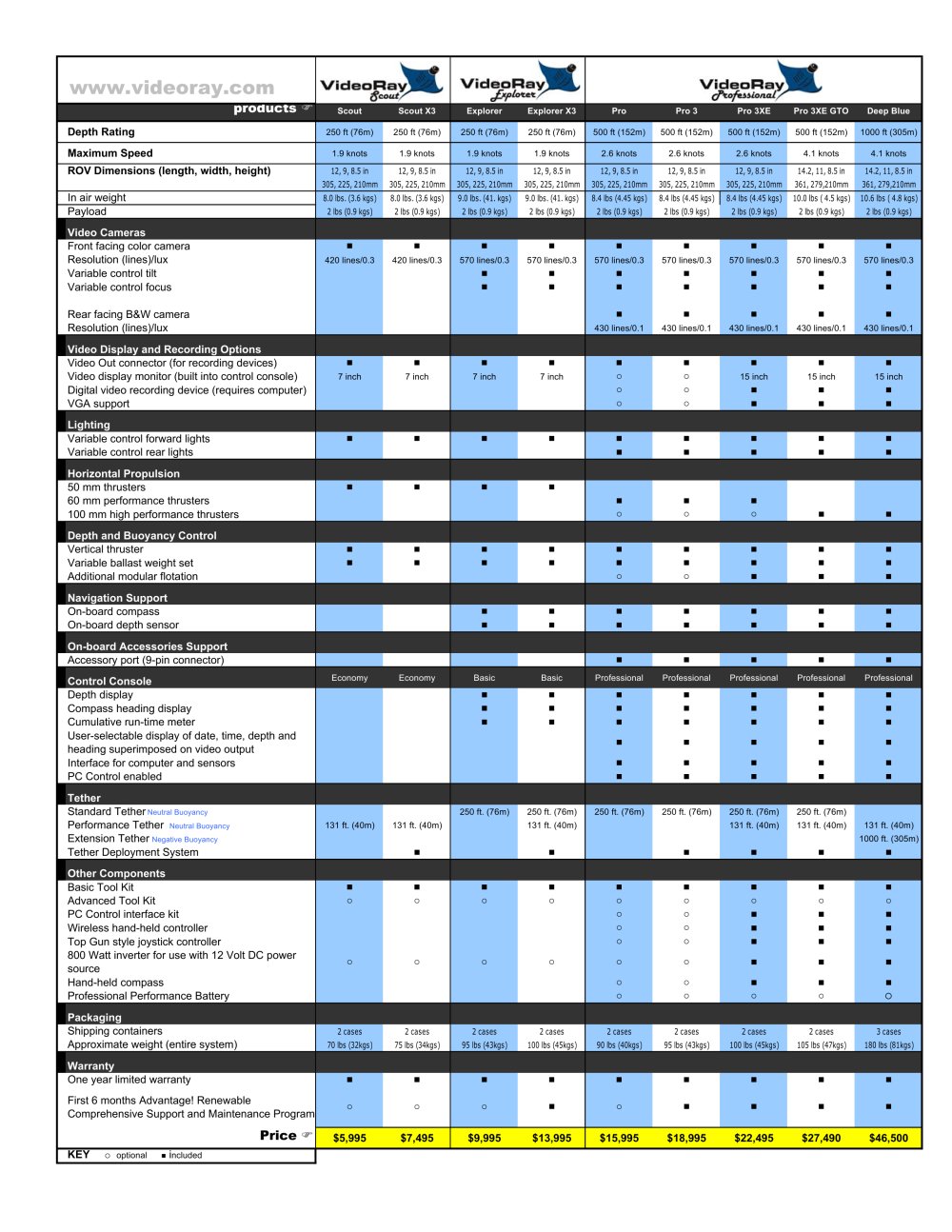

www.videoray.com products Scout Scout X3 Explorer Explorer X3 Pro Pro 3 Pro 3XE Pro 3XE GTO Deep Blue 250 ft (76m) Depth Rating 250 ft (76m) 250 ft (76m) 250 ft (76m) 500 ft (152m) 500 ft (152m) 500 ft (152m) 500 ft (152m) 1000 ft (305m) Maximum Speed 1.9 knots 1.9 knots 1.9 knots 1.9 knots 2.6 knots 2.6 knots 2.6 knots 4.1 knots 4.1 knots ROV Dimensions (length, width, height) 12, 9, 8.5 in 12, 9, 8.5 in 12, 9, 8.5 in 12, 9, 8.5 in 12, 9, 8.5 in 12, 9, 8.5 in 12, 9, 8.5 in 14.2, 11, 8.5 in 14.2, 11, 8.5 in 305, 225, 210mm 305, 225, 210mm 305, 225, 210mm 305, 225, 210mm 305, 225, 210mm 305, 225, 210mm 305, 225, 210mm 361, 279,210mm 361, 279,210mm 8.0 lbs. (3.6 kgs) 8.0 lbs. (3.6 kgs) 9.0 lbs. (41. kgs) 9.0 lbs. (41. kgs) 8.4 lbs (4.45 kgs) 8.4 lbs (4.45 kgs) 8.4 lbs (4.45 kgs) 10.0 lbs ( 4.5 kgs) 10.6 lbs ( 4.8 kgs) 2 lbs (0.9 kgs) 2 lbs (0.9 kgs) 2 lbs (0.9 kgs) 2 lbs (0.9 kgs) 2 lbs (0.9 kgs) 2 lbs (0.9 kgs) 2 lbs (0.9 kgs) 2 lbs (0.9 kgs) 2 lbs (0.9 kgs) 420 lines/0.3 420 lines/0.3 570 lines/0.3 570 lines/0.3 570 lines/0.3 570 lines/0.3 570 lines/0.3 570 lines/0.3 570 lines/0.3 430 lines/0.1 430 lines/0.1 430 lines/0.1 430 lines/0.1 430 lines/0.1 15 inch 15 inch 15 inch Professional Professional Professional In air weight Payload Video Cameras Front facing color camera Resolution (lines)/lux Variable control tilt Variable control focus Rear facing B&W camera Resolution (lines)/lux Video Display and Recording Options Video Out connector (for recording devices) Video display monitor (built into control console) Digital video recording device (requires computer) VGA support 7 inch 7 inch 7 inch 7 inch Economy Economy Basic Basic Professional Professional 250 ft. (76m) 250 ft. (76m) 250 ft. (76m) 250 ft. (76m) 131 ft. (40m) 131 ft. (40m) Lighting Variable control forward lights Variable control rear lights Horizontal Propulsion 50 mm thrusters 60 mm performance thrusters 100 mm high performance thrusters Depth and Buoyancy Control Vertical thruster Variable ballast weight set Additional modular flotation Navigation Support On-board compass On-board depth sensor On-board Accessories Support Accessory port (9-pin connector) Control Console Depth display Compass heading display Cumulative run-time meter User-selectable display of date, time, depth and heading superimposed on video output Interface for computer and sensors PC Control enabled Tether Standard Tether Neutral Buoyancy Performance Tether Neutral Buoyancy Extension Tether Negative Buoyancy Tether Deployment System 250 ft. (76m) 250 ft. (76m) 131 ft. (40m) 131 ft. (40m) 131 ft. (40m) 131 ft. (40m) 1000 ft. (305m) Other Components Basic Tool Kit Advanced Tool Kit PC Control interface kit Wireless hand-held controller Top Gun style joystick controller 800 Watt inverter for use with 12 Volt DC power source Hand-held compass Professional Performance Battery Packaging Shipping containers Approximate weight (entire system) 2 cases 2 cases 2 cases 2 cases 2 cases 2 cases 2 cases 2 cases 3 cases 70 lbs (32kgs) 75 lbs (34kgs) 95 lbs (43kgs) 100 lbs (45kgs) 90 lbs (40kgs) 95 lbs (43kgs) 100 lbs (45kgs) 105 lbs (47kgs) 180 lbs (81kgs) $5,995 $7,495 $9,995 $13,995 $15,995 $18,995 $22,495 $27,490 $46,500 Warranty One year limited warranty First 6 months Advantage! Renewable Comprehensive Support and Maintenance Program Price KEY optional included
