VideoRay Product Catalogue

VideoRay Product Catalogue

Product catalog summary

Product Overview
The document provides comprehensive details on various models of the VideoRay Submersible Robot, focusing on their recommended applications, system components, specifications, and pricing.

Recommended Uses
The submersible robots are versatile, suitable for applications such as recreation, aquaculture, diver monitoring, search and recovery, accident and CSI, port and waterway security, advanced inspections, offshore surveys, science and research, film production, and wreck surveys.

System Components
Each model includes a VideoRay Submersible Robot with a forward-facing wide-angle color camera, high-efficiency halogen lights, horizontal and vertical thrusters, and a control console with various display and control features. The package also includes a tether, owner's manual, ballast weight set, spare parts, and a basic tool kit, all designed to fit into water-tight Pelican cases for easy transport.

Camera Specifications
The cameras offer resolutions from 420 to 570 lines, with low light sensitivity (0.3 lux) and options for NTSC or PAL video standards. Some models feature a rear-facing black and white camera.

Lighting and Propulsion
The lighting system includes forward halogen lights and, in some models, a rear LED light array. Propulsion is provided by horizontal and vertical thrusters, with advanced thrusters available in some models for increased speed and maneuverability.

Control Console
Features integrated video displays, depth and compass gauges, joystick controls for movement and lighting, and options for camera tilt and focus. Some models offer PC Pilot computer control options.

Tether and Other Components
The tether systems vary in length and buoyancy, with a maximum voltage of 48 volts DC. Additional components include calibration tools, strain relief, and optional accessories like manipulators.

Warranty and Pricing
The products come with a one-year limited warranty covering manufacturing and component defects, with options for comprehensive support and maintenance programs. Prices range from $5,995 to $27,490, depending on the model and features.

Additional Information
For more details, customers are directed to visit the VideoRay website or contact local dealers for pricing outside the US, other video standards, and CE marked versions. Prices and specifications are subject to change without notice.

Detailed System Components
The VideoRay Submersible Robot includes a forward-facing wide-angle color camera with 570 lines and 0.3 lux, and a rear-facing black & white camera with 430 lines and 0.1 lux. It features two 20 Watt high-efficiency halogen lights at the front and an ultra-high-intensity LED light array at the rear. The propulsion system consists of two horizontal GTO thrusters and one vertical thruster.

Control Console Features
The console includes a 15” integrated video display with tilt adjustment, LCD depth gauge, compass, and cumulative hour meter displays. It offers composite video output and options to superimpose date, time, depth, and heading information on the video display. Controls include joystick for horizontal movement, vertical depth control, lighting, camera tilt and focus, and manipulator control.

Tether Specifications
The system includes an Extended Capacity Tether Deployment System with 305 m of negatively buoyant tether and 40 m of Performance tether. The maximum voltage in the tether is 48 volts DC.

Other Components and Accessories
The system is covered by a one-year comprehensive warranty, renewable annually. It has a depth rating of 305 m, a total system weight of 81 kgs, and a speed of 4.1 knots. The price is $46,500. Additional accessories include a brass ballast weight set, calibration tool, spare parts, basic tool kit, compass, additional modular flotation, tether strain relief, and fits into two water-tight Pelican cases. The XE Accessory Package includes a power kit, 12 Volt DC 800 Watt inverter, VideoRay PC Pilot Kit, software CD, USB video capture/DVD authoring, wireless game pad, desktop joystick, serial to USB converter, and USB hub.

Pricing and Specifications
Contact VideoRay or local dealers for pricing outside the US, other video standards, and CE marked versions. Prices and specifications are subject to change without notice. For more information, visit www.videoray.com/products.

Catalog excerpts

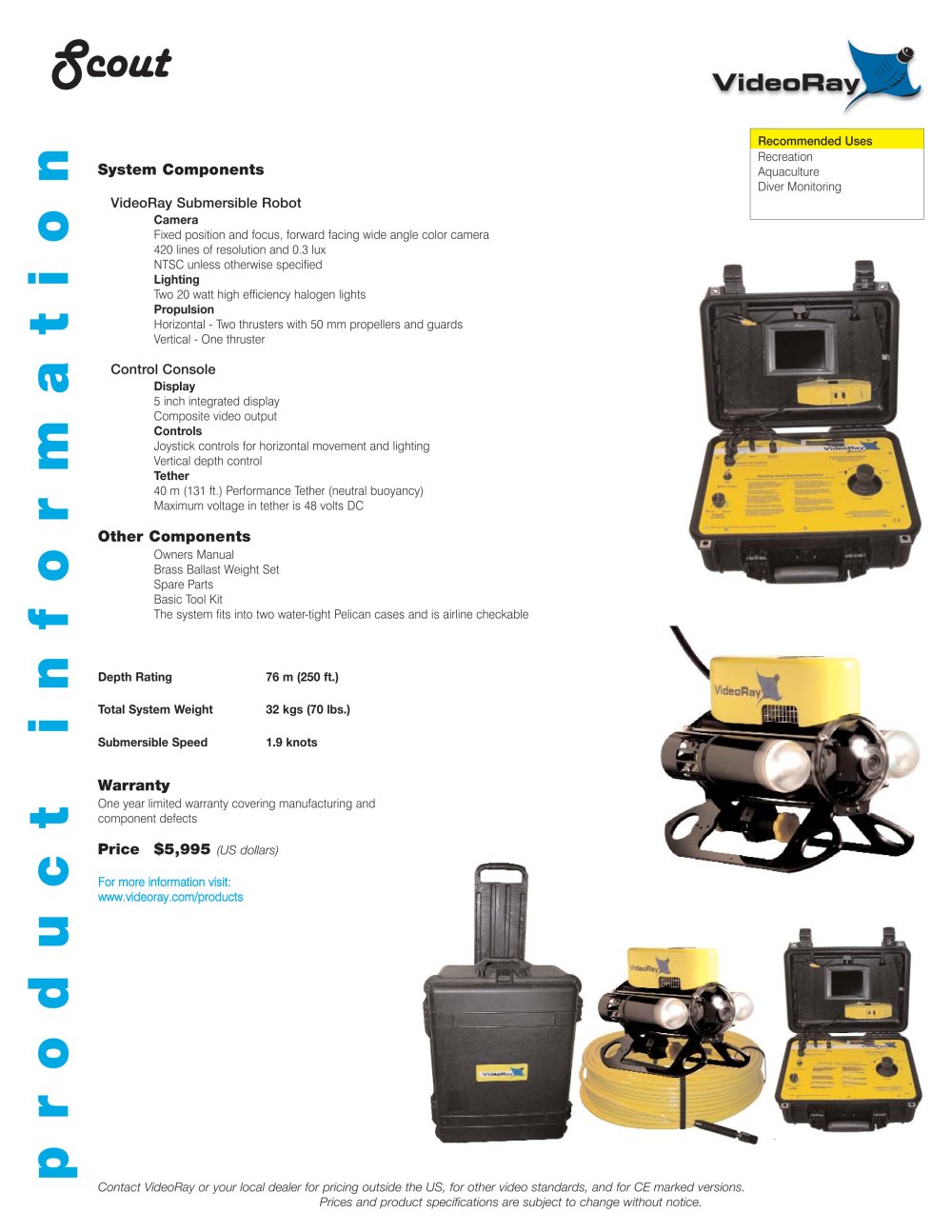

System Components VideoRay Submersible Robot Fixed position and focus, forward facing wide angle color camera NTSC unless otherwise specified Two 20 watt high efficiency halogen lights Horizontal - Two thrusters with 50 mm propellers and guards Control Console 5 inch integrated display Composite video output Joystick controls for horizontal movement and lighting Vertical depth control 40 m (131 ft.) Performance Tether (neutral buoyancy) Maximum voltage in tether is 48 volts DC Other Components Owners Manual Brass Ballast Weight Set Spare Parts The system fits into two water-tight Pelican cases and is airline checkable Recommended Uses Diver Monitoring Depth Rating Total System Weight Submersible Speed One year limited warranty covering manufacturing and component defects For more information visit: Contact VideoRay or your local dealer for pricing outside the US, for other video standards, and for CE marked versions. Prices and product specifications are subject to change without notice.
