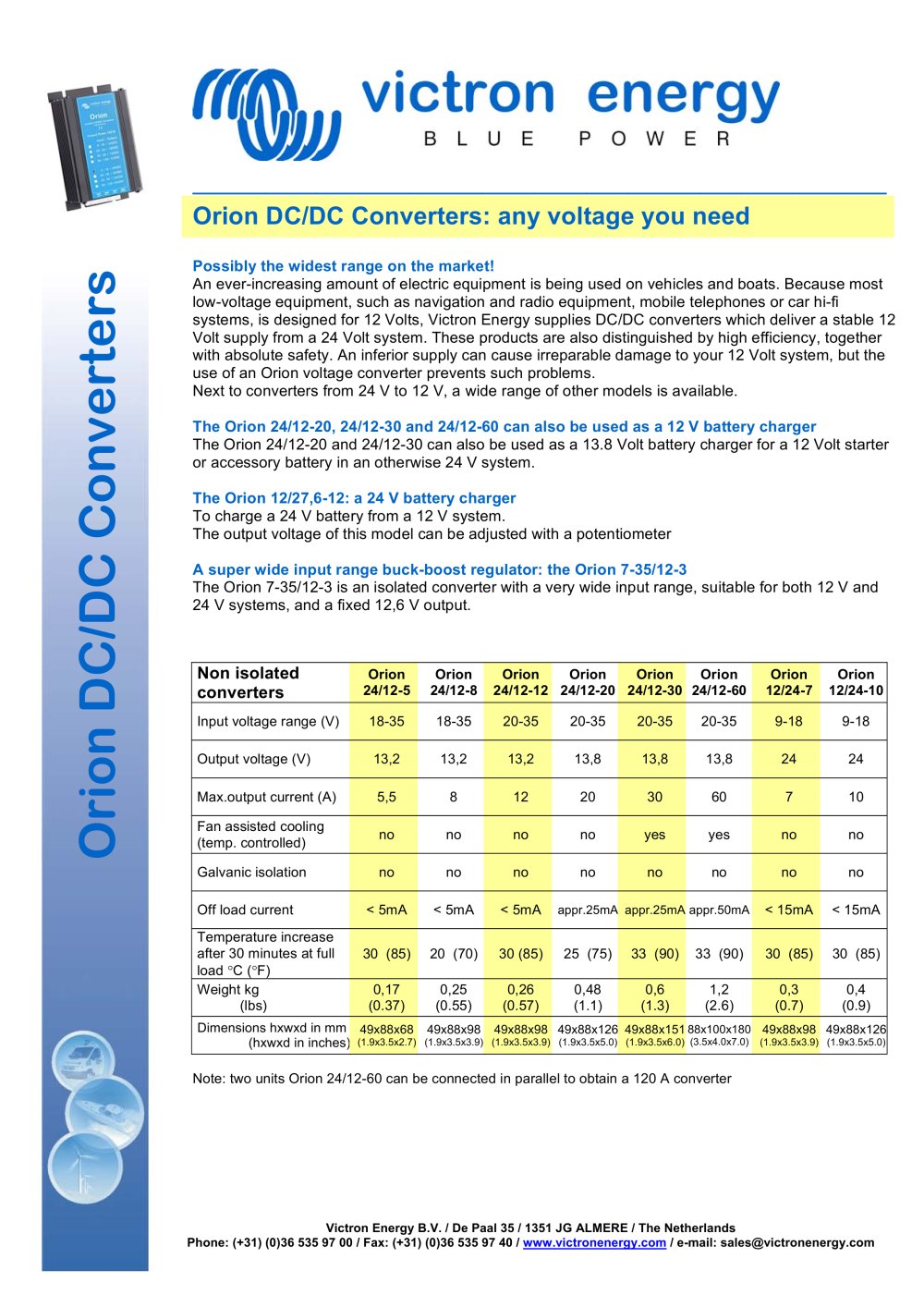

___________________________________________________________________ Orion DC/DC Converters Orion DC/DC Converters: any voltage you need Possibly the widest range on the market! An ever-increasing amount of electric equipment is being used on vehicles and boats. Because most low-voltage equipment, such as navigation and radio equipment, mobile telephones or car hi-fi systems, is designed for 12 Volts, Victron Energy supplies DC/DC converters which deliver a stable 12 Volt supply from a 24 Volt system. These products are also distinguished by high efficiency, together with absolute safety. An inferior supply can cause irreparable damage to your 12 Volt system, but the use of an Orion voltage converter prevents such problems. Next to converters from 24 V to 12 V, a wide range of other models is available. The Orion 24/12-20, 24/12-30 and 24/12-60 can also be used as a 12 V battery charger The Orion 24/12-20 and 24/12-30 can also be used as a 13.8 Volt battery charger for a 12 Volt starter or accessory battery in an otherwise 24 V system. The Orion 12/27,6-12: a 24 V battery charger To charge a 24 V battery from a 12 V system. The output voltage of this model can be adjusted with a potentiometer A super wide input range buck-boost regulator: the Orion 7-35/12-3 The Orion 7-35/12-3 is an isolated converter with a very wide input range, suitable for both 12 V and 24 V systems, and a fixed 12,6 V output. Non isolated converters Orion 24/12-5 Orion 24/12-8 18-35 18-35 20-35 20-35 20-35 Output voltage (V) 13,2 13,2 13,2 13,8 Max.output current (A) 5,5 8 12 Fan assisted cooling (temp. controlled) no no Galvanic isolation no Input voltage range (V) Off load current Temperature increase after 30 minutes at full load °C (°F) Weight kg (lbs) Orion Orion Orion Orion 24/12-12 24/12-20 24/12-30 24/12-60 Orion 12/24-7 Orion 12/24-10 20-35 9-18 9-18 13,8 13,8 24 24 20 30 60 7 10 no no yes yes no no no no no no no no no < 5mA < 5mA < 5mA < 15mA < 15mA 30 (85) 20 (70) 30 (85) 25 (75) 33 (90) 33 (90) 30 (85) 30 (85) 0,17 (0.37) 0,25 (0.55) 0,26 (0.57) 0,48 (1.1) 0,6 (1.3) 1,2 (2.6) 0,3 (0.7) 0,4 (0.9) appr.25mA appr.25mA appr.50mA Dimensions hxwxd in mm 49x88x68 49x88x98 49x88x98 49x88x126 49x88x151 88x100x180 49x88x98 49x88x126 (hxwxd in inches) (1.9x3.5x2.7) (1.9x3.5x3.9) (1.9x3.5x3.9) (1.9x3.5x5.0) (1.9x3.5x6.0) (3.5x4.0x7.0) (1.9x3.5x3.9) (1.9x3.5x5.0) Note: two units Orion 24/12-60 can be connected in parallel to obtain a 120 A converter Victron Energy B.V. / De Paal 35 / 1351 JG ALMERE / The Netherlands Phone: (+31) (0)36 535 97 00 / Fax: (+31) (0)36 535 97 40 / www.victronenergy.com / e-mail: sales@victronenergy.com

Open the catalog to page 1

Isolated converters Orion DC/DC Converters Power rating (W) Orion xx/yy-100W Orion xx/yy-200W Orion xx/yy-360W 100 (12,5V/8A or 24V/4A) yes 200 (12,5V/16A or 24V/8A) yes 360 (12,5V/30A or 24V/15A) yes Galvanic isolation Temperature increase after 25 30 30 30 minutes at full load (°C) Fan assisted cooling no yes yes (temp. controlled) Weight kg (lbs) 0,5 (1.1) 0,6 (1.3) 1,4 (3.1) 49 x 88 x 182 Dimensions hxwxd in mm 49 x 88 x 152 64 x 163 x 160 (1.9 x 3.5 x 6.0) (1.9 x 3.5 x 7.2) (2.5 x 6.4 x 6.3) (hxwxd in inches) Input voltage (xx): 12 V (9 – 18 V) or 24 V (20 – 35 V) or 48 V (30 – 60 V)...
