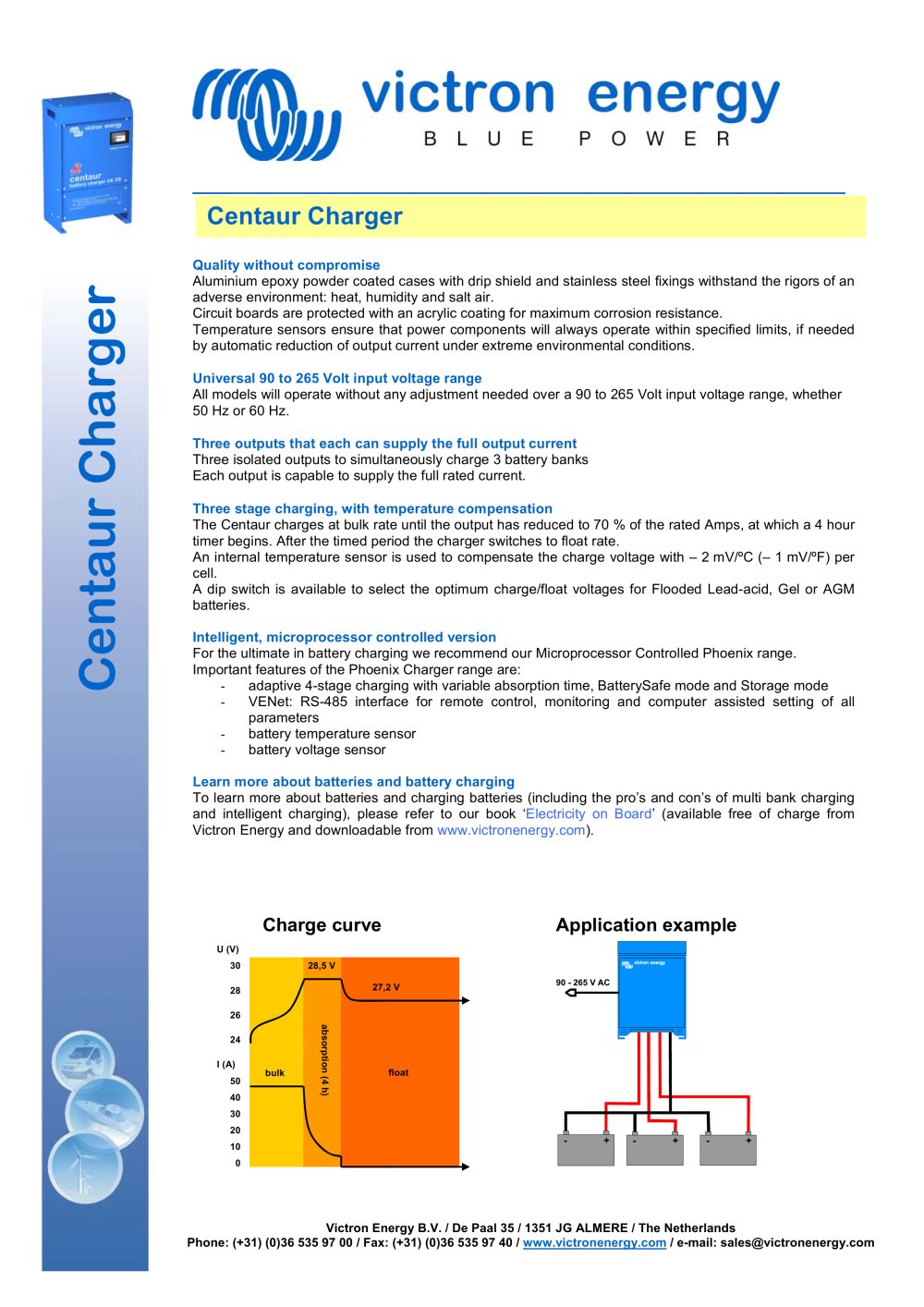

Centuar Charger - 1

_______________________________________________________________ Centaur Charger Centaur Charger Quality without compromise Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions. Universal 90 to 265 Volt input voltage range All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz. Three outputs that each can supply the full output current Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current. Three stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70 % of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A dip switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries. Intelligent, microprocessor controlled version For the ultimate in battery charging we recommend our Microprocessor Controlled Phoenix range. Important features of the Phoenix Charger range are: adaptive 4-stage charging with variable absorption time, BatterySafe mode and Storage mode VENet: RS-485 interface for remote control, monitoring and computer assisted setting of all parameters battery temperature sensor battery voltage sensor Learn more about batteries and battery charging To learn more about batteries and charging batteries (including the pro’s and con’s of multi bank charging and intelligent charging), please refer to our book ‘Electricity on Board’ (available free of charge from Victron Energy and downloadable from www.victronenergy.com). Charge curve Application example U (V) 28,5 V 30 27,2 V 28 26 I (A) 50 40 bulk absorption (4 h) 24 float 30 20 10 0 Victron Energy B.V. / De Paal 35 / 1351 JG ALMERE / The Netherlands Phone: (+31) (0)36 535 97 00 / Fax: (+31) (0)36 535 97 40 / www.victronenergy.com / e-mail: sales@victronenergy.com

Open the catalog to page 1
Centuar Charger - 2

Specifications Centaur Charger 12/20 Centaur Charger Common characteristics 12/30 24/16 12/40 12/50 Input voltage: 90 – 265 V 12/60 24/30 12/80 24/40 Input frequency: 45 – 65 Hz Charge voltage ‘absorption’ (V DC) 24/80 12/200 24/100 Power factor: 1 14,3 / 28,5 (1) Charge voltage ‘float’ (V DC) 12/100 24/60 13,5 / 27,0 (1) Output banks Charge current (A) (2) 3 20 30 / 16 40 50 60 / 30 80 / 40 Total output ammeter Charge characteristic 100 / 60 80 200 / 100 400 - 1000 240 - 600 320 - 800 800 - 2000 400 - 1000 M8 studs M8 studs M8 studs Yes IUoU (Three stage charging) Recommended battery...

Open the catalog to page 2
