U700
1 / 2Pages

Catalog excerpts

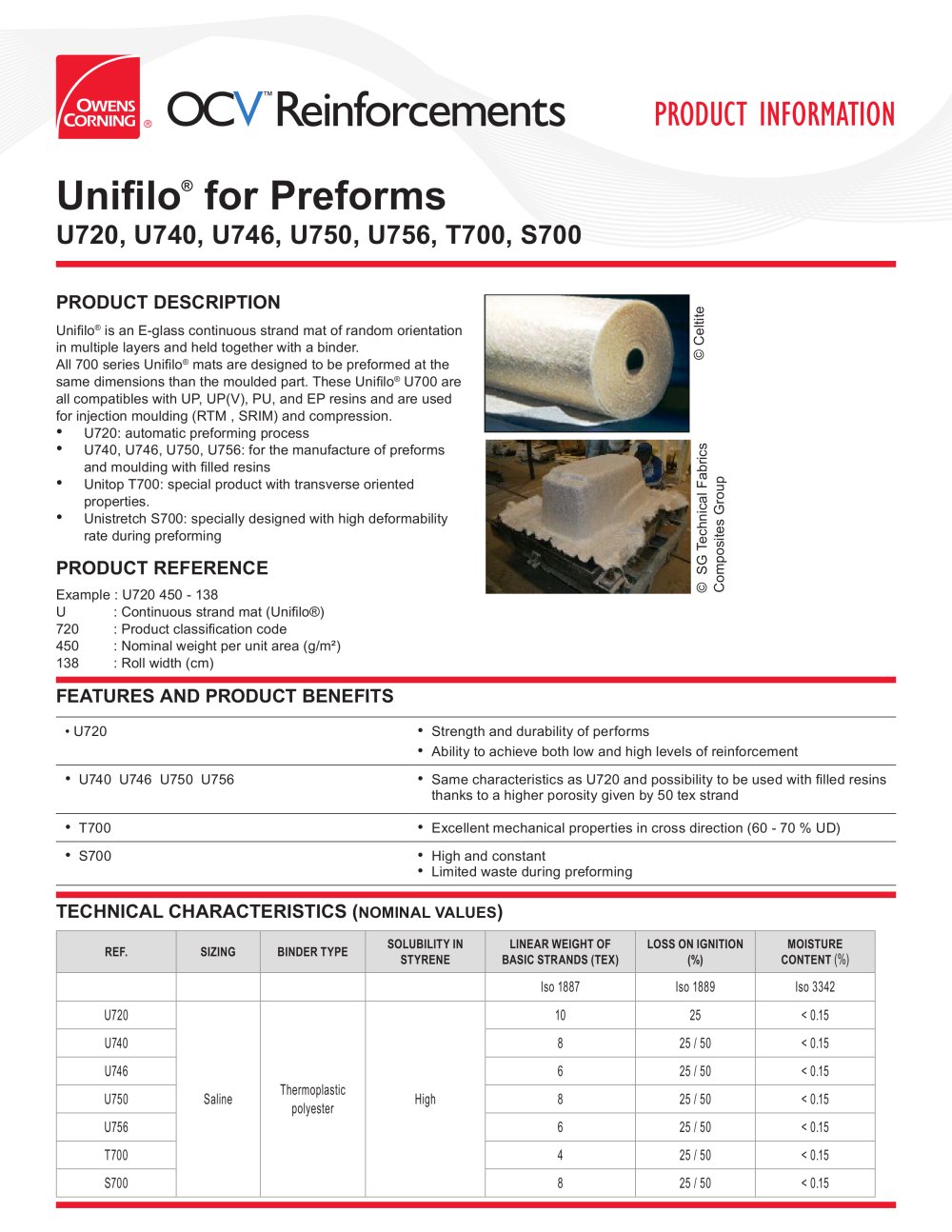

U700 - 1

OCV™Reinforcements PRODUCT INFORMATION PRODUCT DESCRIPTION Unitilo® is an E-glass continuous strand mat of random orientation in multiple layers and held together with a binder. All 700 series Unifilo® mats are designed to be preformed at the same dimensions than the moulded part. These Unifilo® U700 are all compatibles with UP, UP(V), PU, and EP resins and are used for injection moulding (RTM , SRIM) and compression. • U720: automatic preforming process and moulding with filled resins • Unitop T700: special product with transverse oriented • Unistretch S700: specially designed with high deformability rate during preforming PRODUCT REFERENCE U : Continuous strand mat (Unitilo®) 720 : Product classification code 450 : Nominal weight per unit area (g/m2) FEATURES AND PRODUCT BENEFITS • U720 • Strength and durability of performs • Ability to achieve both low and high levels of reinforcement • U740 U746 U750 U756 • Same characteristics as U720 and possibility to be used with filled resins thanks to a higher porosity given by 50 tex strand • T700 • Excellent mechanical properties in cross direction (60 - 70 % UD) • Limited waste during preforming TECHNICAL CHARACTERISTICS (NOMINAL VALUES)

Open the catalog to page 1
U700 - 2

VISUAL CHARACTERISTICS Type A: coarse strands Type B: cluster of glass fiber Type C: water spots Type D: binder spots, dirt and foreign matters Maximum number of defects allowed: each 100 Im Unifilo® rol section may contain at most 5 of the above listed defects. PRODUCT AVAILABILITY Available widths from 50 to 300 cm ROLL STANDARD APPROXIMATE DIMENSIONS OF FULL* ROLL, 'll>: a roll having a guaranteed length of at least 90% of the value Indicated above. • Each roll of Unifilo® is wound up onto a cardboard tube of 0.7 kg/m with 103 mm internal diameter, then individually wrapped with a...

Open the catalog to page 2
