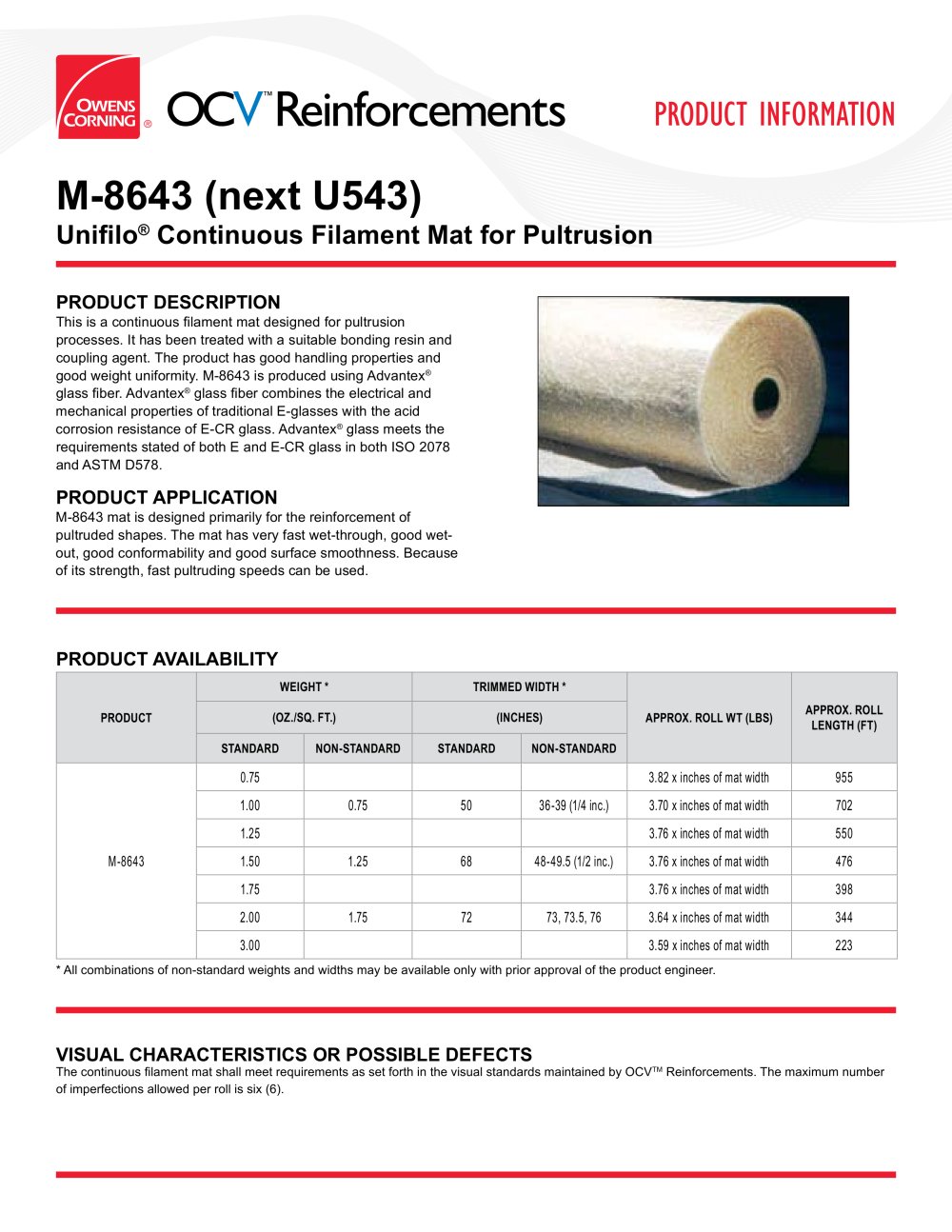

OCV™Reinforcements PRODUCT INFORMATION Unifilo® Continuous Filament Mat for Pultrusion PRODUCT DESCRIPTION This is a continuous filament mat designed for pultrusion processes. It has been treated with a suitable bonding resin and coupling agent. The product has good handling properties and good weight uniformity. M-8643 is produced using Advantex® glass fiber. Advantex® glass fiber combines the electrical and mechanical properties of traditional E-glasses with the acid corrosion resistance of E-CR glass. Advantex® glass meets the requirements stated of both E and E-CR glass in both ISO 2078 PRODUCT APPLICATION M-8643 mat is designed primarily for the reinforcement of pultruded shapes. The mat has very fast wet-through, good wet- out, good conformability and good surface smoothness. Because of its strength, fast pultruding speeds can be used. PRODUCT AVAILABILITY * All combinations of non-standard weights and widths may be available only with prior approval of the product engineer. VISUAL CHARACTERISTICS OR POSSIBLE DEFECTS The continuous filament mat shall meet requirements as set forth in the visual standards maintained by OCV™ Reinforcements. The maximum number of imperfections allowed per roll is six (6).

Open the catalog to page 1

Unifilo® Continuous Filament Mat for Pultrusion TECHNICAL CHARACTERISTICS Mat weight includes glass binder and is measured on a 12" x 12" piece. Values stated are grams per 2" x 12" sample. Values stated are based on 3" x 12" test specimans. The mat is wound on a 4" inside diameter paper tube, having a length the same as the mat width with the following tolerances: For rolls 68" and greater, the tube length tolerances are plus 0", minus 1/2" For rolls less than 68", the tube length tolerances are plus 0", minus 1" The mat will be so wound that the maximum length of mat telescoping will not...

Open the catalog to page 2
