Product catalog summary
Product Description: PZ is a multi-end roving made from Advantex® glass fiber, which combines the properties of traditional E-glass with the acid corrosion resistance of E-CR glass. It features a silane coupling agent sizing system, designed for spray-up applications.
Features and Benefits: The product offers easy rolling and de-airing capabilities.
Technical Characteristics: The nominal values include a linear weight of 2400 tex, a loss on ignition of 1% +/- 0.15, and moisture content of ≤ 0.15%, as per ISO standards.
Disclaimer: The information provided is based on laboratory data and field tests. Users are responsible for testing the product's suitability for their applications. No warranties are provided regarding merchantability or fitness for a particular purpose.
Contact Information: Owens Corning Composite Materials, LLC, Toledo, Ohio, with regional offices in Brussels, Belgium, and Shanghai, China. Contact emails are provided for different regions.
Packaging: The product is packaged on pallets measuring 114 x 114 cm, with 4 levels per pallet, 16 cheeses per level, totaling 64 cheeses. The approximate height is 119 cm, with a net weight of 1300 kg.
Storage Recommendations: Store PZ roving dry in its original packaging at temperatures between 10 and 35ºC and relative humidity between 35 and 85%. If stored below 15ºC, acclimate the pallets for 24 hours before use. Static stacking is possible with precautions.
See more

Catalog excerpts

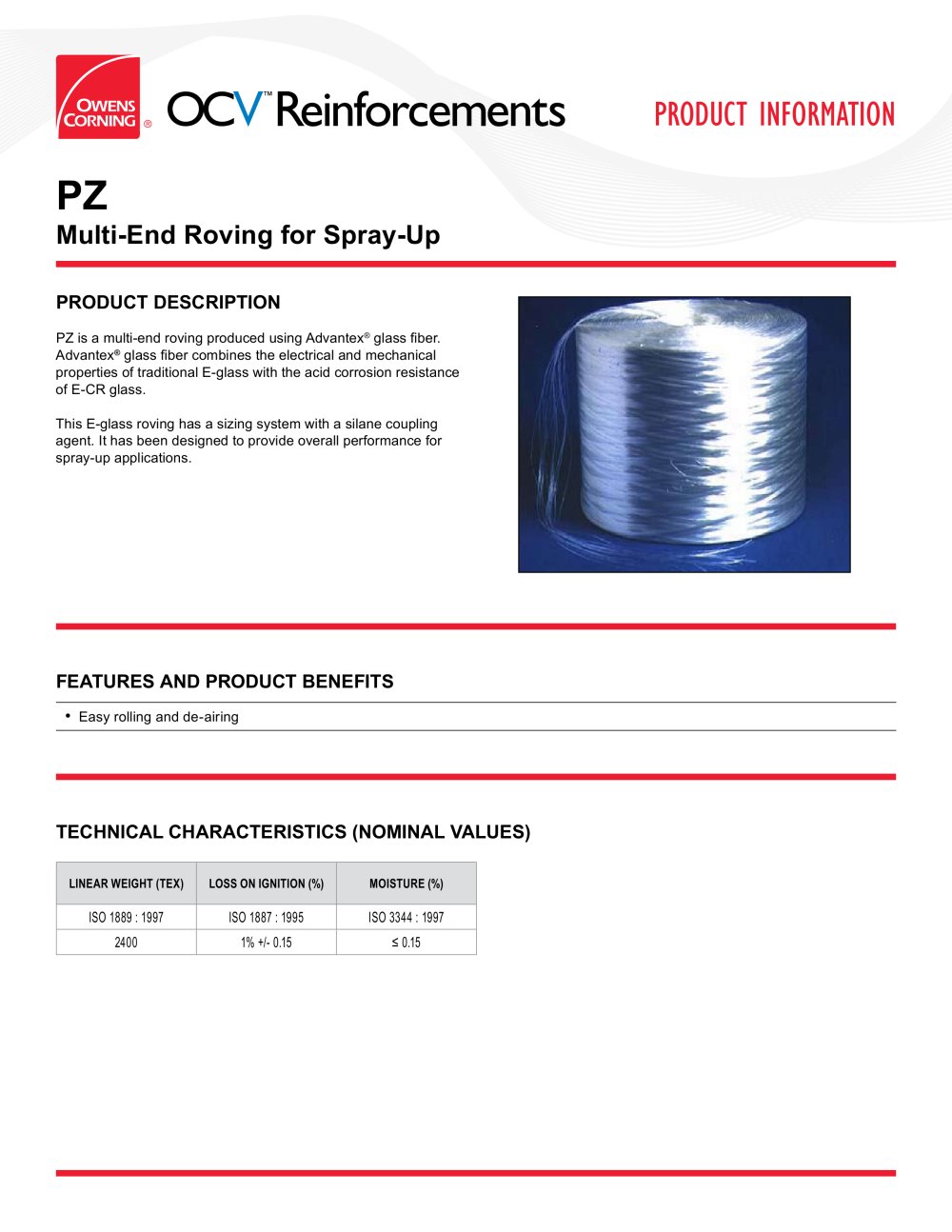

PZ-1

PRODUCT INFORMATION Multi-End Roving for Spray-Up PRODUCT DESCRIPTION PZ is a multi-end roving produced using Advantex® glass fiber. Advantex* glass fiber combines the electrical and mechanical properties of traditional E-glass with the acid corrosion resistance This E-glass roving has a sizing system with a silane coupling agent. It has been designed to provide overall performance for spray-up applications. FEATURES AND PRODUCT BENEFITS • Easy rolling and de-airing TECHNICAL CHARACTERISTICS (NOMINAL VALUES)

 Open the catalog to page 1
PZ-2

Multi-End Roving for Spray-Up * Add 35 to 45 kg to obtain gross weight PZ roving should be stored dry and in its original packaging. The best conditions are temperature between 10 and 35°C and at a relative humidity between 35 and 85%. If the product is stored at low temperature (below 15°C) it is necessary to put the pallets to be processed for at least 24 hours prior their use into processing area and remove a part of protective cover of the pallet to prevent condensation of humidity. Static stacking of the pallets is possible one plus one (1/1), but it is recommended to use a plywood plate...

 Open the catalog to page 2
