Product catalog summary
Product Description
P218 is a multi-end roving made from Advantex® glass fiber, which combines the properties of traditional E-glass with the acid corrosion resistance of E-CR glass. It features a silane coupling agent sizing system for optimal performance in spray-up applications.
Product Reference
Example: EC 2400 P218
- E: Glass type
- C: Continuous process
- 2400: Roving linear weight (tex)
- P218: Product classification code
Features and Benefits
- Easy rolling and air release
Technical Characteristics (Nominal Values)
- Linear Weight: 2400 tex
- Loss on Ignition: 1.0% +/- 0.15 (ISO 1887: 1995)
- Moisture: ≤ 0.15% (ISO 3344: 1997)
Packaging
Each P218 cheese is protected by shrink-wrap polythene film and identified by an individual label. Do not remove the film during use.
Pallet Information
- Dimensions: 114 x 114 cm
- Layers per pallet: 4
- Cheeses per layer: 16
- Total cheeses: 64
- Approx. height: 119 cm
- Net weight: 1300 kg (add 35 to 45 kg for gross weight)
Storage
Store in original packaging in a dry, cool place with temperatures between 10 to 35°C and humidity between 35 to 85%. If stored at lower temperatures, move pallets to the production area 24 hours before use. Pallets can be stacked with a plywood plank between them.
Disclaimer
The information is based on laboratory data and field tests. It is reliable but not guaranteed for all processes. Users should test applications for suitability before production. No warranty is provided for merchantability or fitness for a particular purpose.
See more

Catalog excerpts

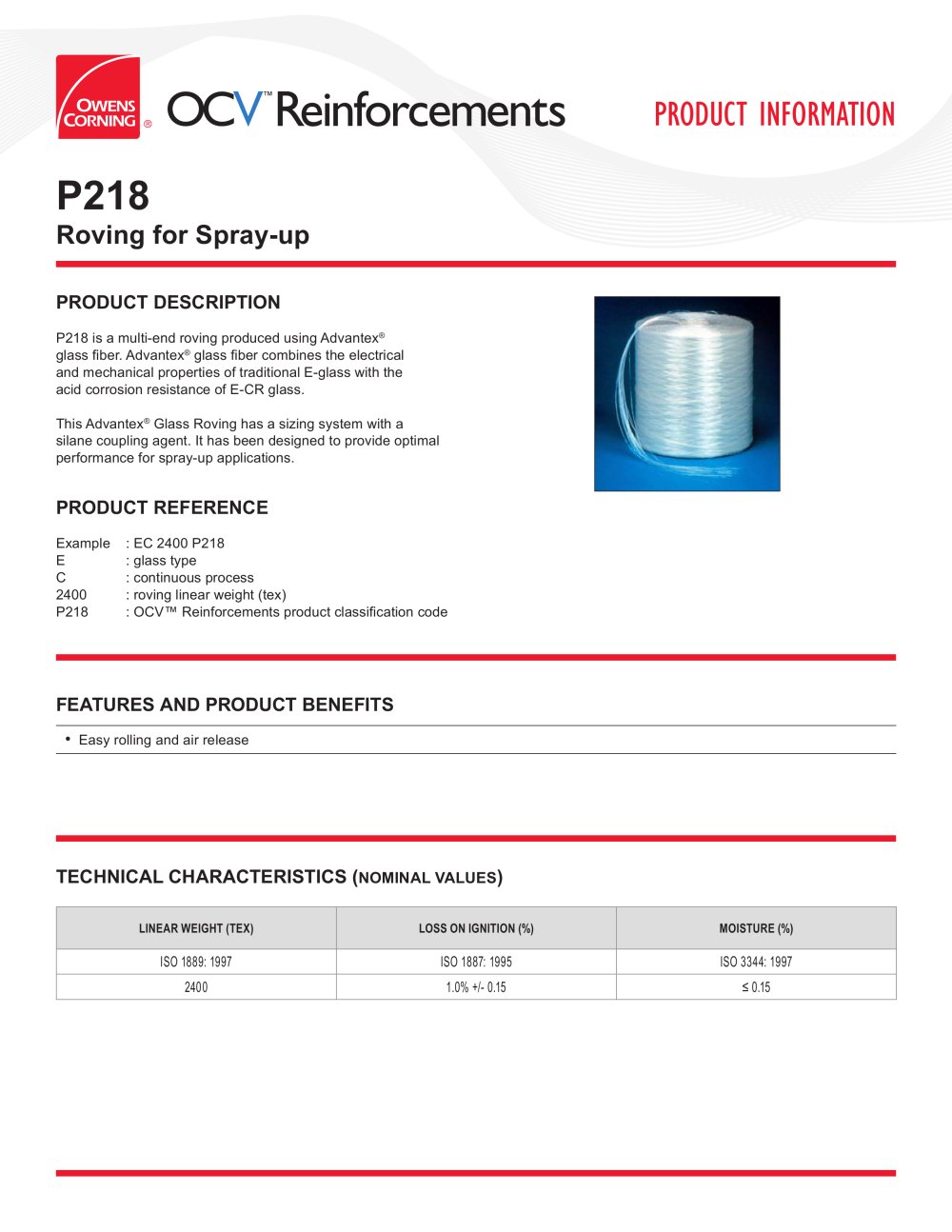

P218-1

PRODUCT INFORMATION PRODUCT DESCRIPTION P218 is a multi-end roving produced using Advantex® glass fiber. Advantex® glass fiber combines the electrical and mechanical properties of traditional E-glass with the acid corrosion resistance of E-CR glass. This Advantex® Glass Roving has a sizing system with a silane coupling agent. It has been designed to provide optimal performance for spray-up applications. PRODUCT REFERENCE glass type continuous process roving linear weight (tex) OCV™ Reinforcements product classification code FEATURES AND PRODUCT BENEFITS • Easy rolling and air release TECHNICAL CHARACTERISTICS (NOMINAL VALUES)

 Open the catalog to page 1
P218-2

• Each P218 cheese is protected by a shrink-wrap polythene film and identified by an individual label. Please do not remove film (*) Add 35 to 45 kg to obtain gross weight. The P218 roving should be stored in its original packaging in a dry and cool place. Best conditions are at temperature from 10 to 35°C and humidity between 35 and 85%. If you store the product at lower temperatures, please move the soon-to-be-processed pallets to the production area 24 hours ahead ottime. You can stock pallets one on one with a plywood plank between the two. OCV™ Reinforcements OWENS CORNING ONE OWENS CORNING...

 Open the catalog to page 2
