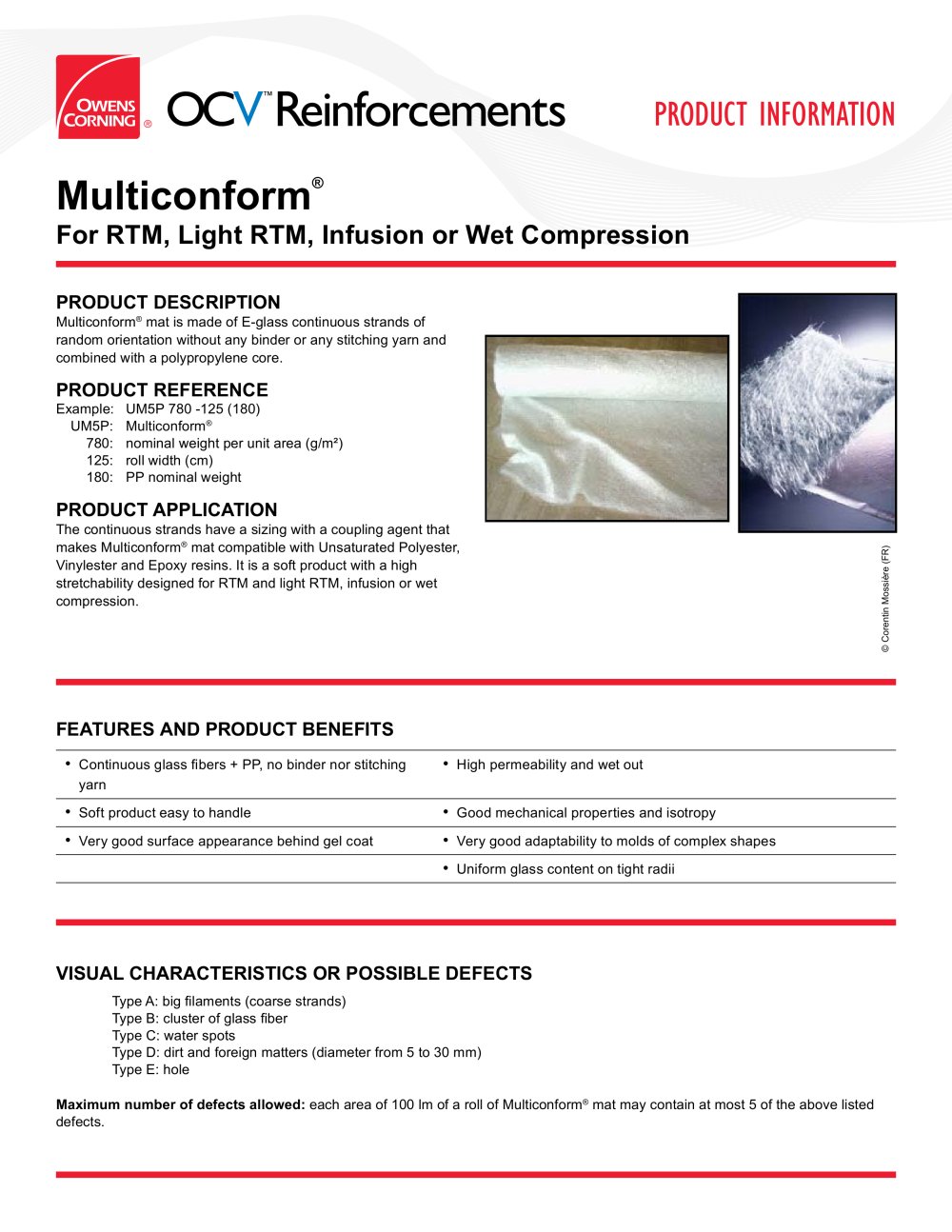

OCV™Reinforcements PRODUCT INFORMATION For RTM, Light RTM, Infusion or Wet Compression PRODUCT DESCRIPTION Multiconform® mat is made of E-glass continuous strands of random orientation without any binder or any stitching yarn and combined with a polypropylene core. PRODUCT REFERENCE nominal weight per unit area (g/m2 PRODUCT APPLICATION The continuous strands have a sizing with a coupling agent that makes Multiconform® mat compatible with Unsaturated Polyester, Vinylester and Epoxy resins. It is a soft product with a high stretchability designed for RTM and light RTM, infusion or wet FEATURES AND PRODUCT BENEFITS • Continuous glass fibers + PP, no binder nor stitching • High permeability and wet out • Soft product easy to handle • Good mechanical properties and isotropy • Very good surface appearance behind gel coat • Very good adaptability to molds of complex shapes • Uniform glass content on tight radii VISUAL CHARACTERISTICS OR POSSIBLE DEFECTS Type A: big filaments (coarse strands) Type B: cluster of glass fiber Type C: water spots Type D: dirt and foreign matters (diameter from 5 to 30 mm) Maximum number of defects allowed: each area of 100 Im of a roll of Multiconform® mat may contain at most 5 of the above listed

Open the catalog to page 1

For RTM, Light RTM, Infusion or Wet Compression TECHNICAL CHARACTERISTICS (NOMINALVALUES) PRODUCTS AVAILABLE Each roll of Multiconform® mat is wound onto a cardboard tube of 0.7 kg/m and internal diameter 103 mm, then individually wrapped with a transparent stretch film Pallet type: - For rolls with a width 125 cm, a standard pallet is used (vertical rolls) - For rolls with a width 250 cm, a wooden crate is used (horizontal rolls) Protection type: - Standard pallet = cardboard base and cover, fully wrapped in stretch film - Wooden crate = each roll packaged in a polyethylene bag Each roll...

Open the catalog to page 2
