Product catalog summary
Product Description
REV Milled Fibers are E-glass fibers designed for reinforcing thermoset and thermoplastic resins, including polyester, epoxy, phenolic, and engineering plastic compounds like PTFE. They are also recommended for anti-crack applications in coatings and gel-coatings. The fibers can be coated to enhance mechanical properties or left uncoated to prevent carbonation and improve color in PTFE applications.
Features and Benefits
  • Excellent processability with good dry flow and dispersion characteristics.
  • High-quality molded parts with no coloration, high pigmentability, and good mechanical properties.
  • Easy impregnation and very good color retention.
Technical Characteristics
ProductFiber Diameter (µm)Sizing AgentMoisture Content (%)Average Residual Length (µm)
REV1none0.1 max.35
REV4none0.1 max.70
REV7acryl-silane0.05 min.70
REV8amino-silane0.03 min.0.3 max.70
Packaging
REV Milled Fibers are packed in paper bags, with pallets wrapped in stretched film. Each bag has a sticker indicating the product reference, net weight, and production lot number. Example packaging includes 20.0 kg per bag, with 50 bags per pallet, and pallet dimensions of 1100 x 1200 x 1080 mm, totaling a nominal net weight of 1000 kg.
Storage
Store REV Milled Fibers dry in original packaging at temperatures between 15 and 35°C and relative humidity between 35 and 85%. If stored below 15°C, condition the product in the workshop for at least 24 hours before use to prevent condensation. Stacking is possible with a plywood board between pallets to avoid damage.
Contact Information
Owens Corning Composite Materials, LLC, Toledo, Ohio, USA. Contact via [email protected]. European and Asia Pacific contact details are also provided.
See more

Catalog excerpts

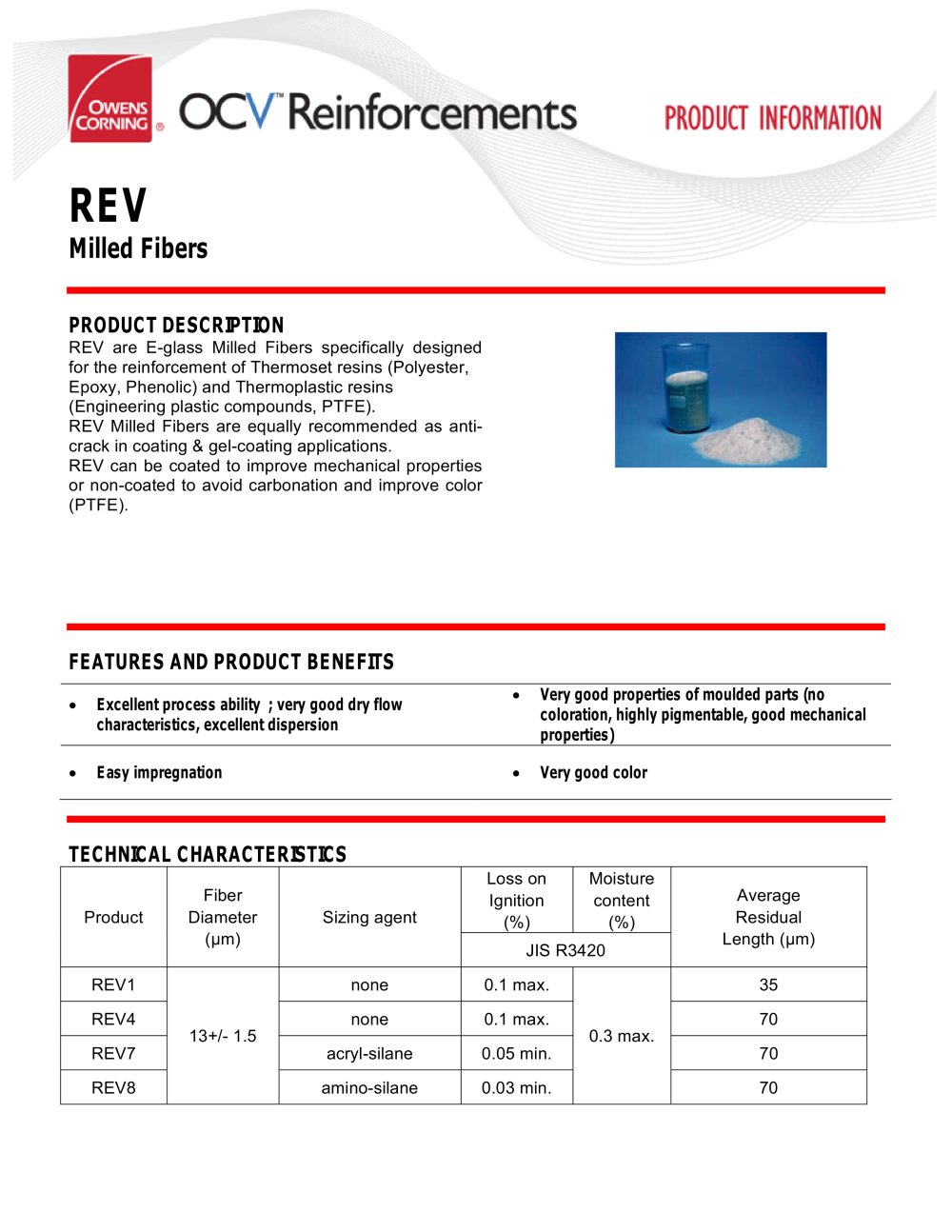

Milled fibers REV-1

OCV Reinforcements PRODUCT INFORMATION REV are E-glass Milled Fibers specifically designed for the reinforcement of Thermoset resins (Polyester, Epoxy, Phenolic) and Thermoplastic resins (Engineering plastic compounds, PTFE). REV Milled Fibers are equally recommended as anti- crack in coating & gel-coating applications. REV can be coated to improve mechanical properties or non-coated to avoid carbonation and improve color

 Open the catalog to page 1
Milled fibers REV-2

• REV Milled Fibers are packed in paper bag. • Pallets are wrapped in stretched film. Add 50Kg to obtain the approximate gross weight. Each bag bears a sticker indicating the product reference, net weight and production lot number. REV Milled Fiber should be stored dry, in its original packaging. The ideal conditions are temperature between 15 and 35°C and at a relative humidity between 35 and 85%. If the product is stored at low temperature (below 15°C) it is advisable to condition it in the workshop, for at least 24 hours before use, to prevent condensation. The product can be stacked (1/1)...

 Open the catalog to page 2
