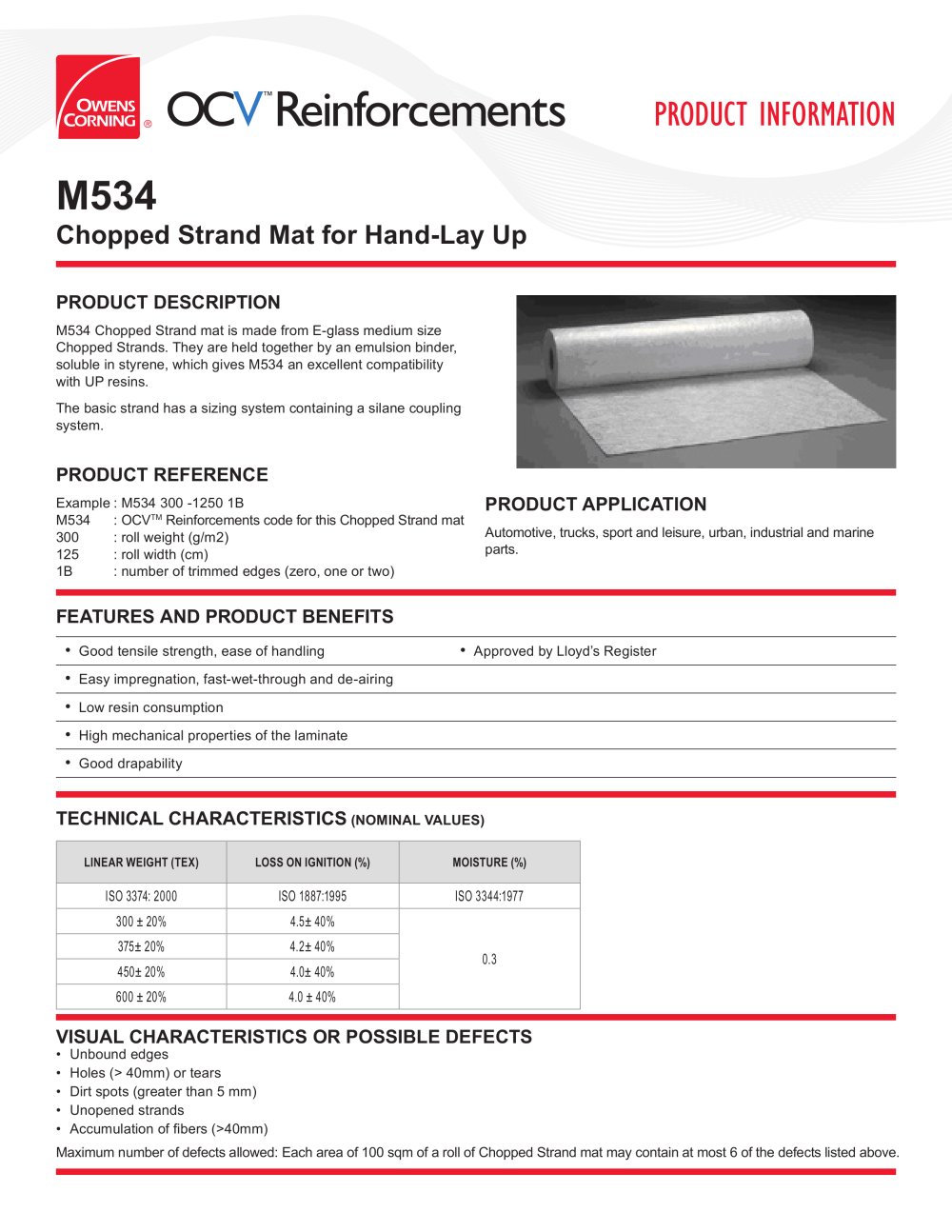

PRODUCT INFORMATION Chopped Strand Mat for Hand-Lay Up PRODUCT DESCRIPTION M534 Chopped Strand mat is made from E-glass medium size Chopped Strands. They are held together by an emulsion binder, soluble in styrene, which gives M534 an excellent compatibility The basic strand has a sizing system containing a silane coupling PRODUCT REFERENCE OCV™ Reinforcements code for this Chopped Strand mat number of trimmed edges (zero, one or two) PRODUCT APPLICATION Automotive, trucks, sport and leisure, urban, industrial and marine FEATURES AND PRODUCT BENEFITS Good tensile strength, ease of handling Approved by Lloyd's Register Easy impregnation, fast-wet-through and de-airing High mechanical properties of the laminate Good drapability TECHNICAL CHARACTERISTICS (NOMINAL VALUES) VISUAL CHARACTERISTICS OR POSSIBLE DEFECTS • Unbound edges • Dirt spots (greater than 5 mm) • Unopened strands Maximum number of defects allowed: Each area of 100 sqm of a roll of Chopped Strand mat may contain at most6 of the defects listed above.

Chopped Strand Mat for Hand-Lay Up PRODUCT AVAILABILITY • Upon customer request, M534 mat can be supplied in other widths (between 30 and 320 cm) • A roll is considered to be complete if it measures more than 70% of the nominal length PACKAGING (STANDARD REFERENCE) Individual packaging: • Each roll is wound on a cardboard tube (internal diameter 100 mm) • Each roll is packaged in an individual cardboard box, 342 x 342 mm (9 rolls) or 388 x 388 mm (6 rolls) Bulk packaging: • Number or rolls per pallet = 6 or 9 vertical • Pallet height is equal to mat width + 17.7 cm • The pallet is secured by...
