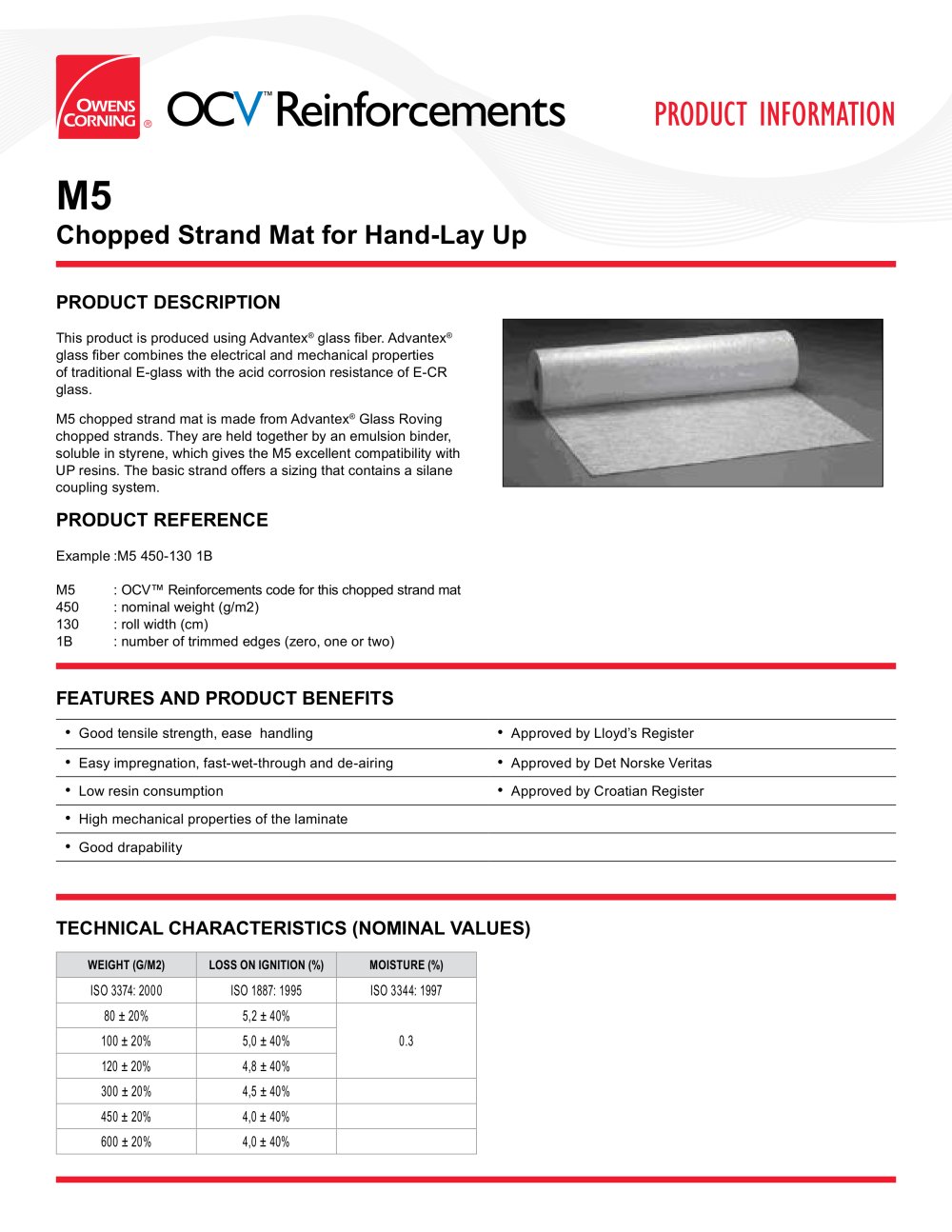

PRODUCT INFORMATION Chopped Strand Mat for Hand-Lay Up PRODUCT DESCRIPTION This product is produced using Advantex® glass fiber. Advantex® glass fiber combines the electrical and mechanical properties of traditional E-glass with the acid corrosion resistance of E-CR M5 chopped strand mat is made from Advantex® Glass Roving chopped strands. They are held together by an emulsion binder, soluble in styrene, which gives the M5 excellent compatibility with UP resins. The basic strand offers a sizing that contains a silane coupling system. PRODUCT REFERENCE OCV™ Reinforcements code for this chopped strand mat number of trimmed edges (zero, one or two) FEATURES AND PRODUCT BENEFITS Good tensile strength, ease handling Approved by Lloyd's Register Easy impregnation, fast-wet-through and de-airing • Approved by Det Norske Veritas • Approved by Croatian Register High mechanical properties of the laminate Good drapability TECHNICAL CHARACTERISTICS (NOMINAL VALUES)

Open the catalog to page 1

Chopped Strand Mat for Hand-Lay Up VISUAL CHARACTERISTICS • Unbound edges • Unopened strands • Dirt spots (greater than 5 mm) Each 100 m2 chopped strand mat roll section may contain at most 10 of the defects listed above. PRODUCT AVAILABILITY (ROLL The M5 additional weights (from 80 to 900 g/m2), and widths (from 15 to 300 cm) are available upon request. A roll is considered to be complete if it measures more than 70% • Each roll is wound up to a cardboard tube (internal diameter 101 mm), packaged in an individual cardboard box, 40 x 40 cm (L x W) and placed in an individual cardboard box,...

Open the catalog to page 2
