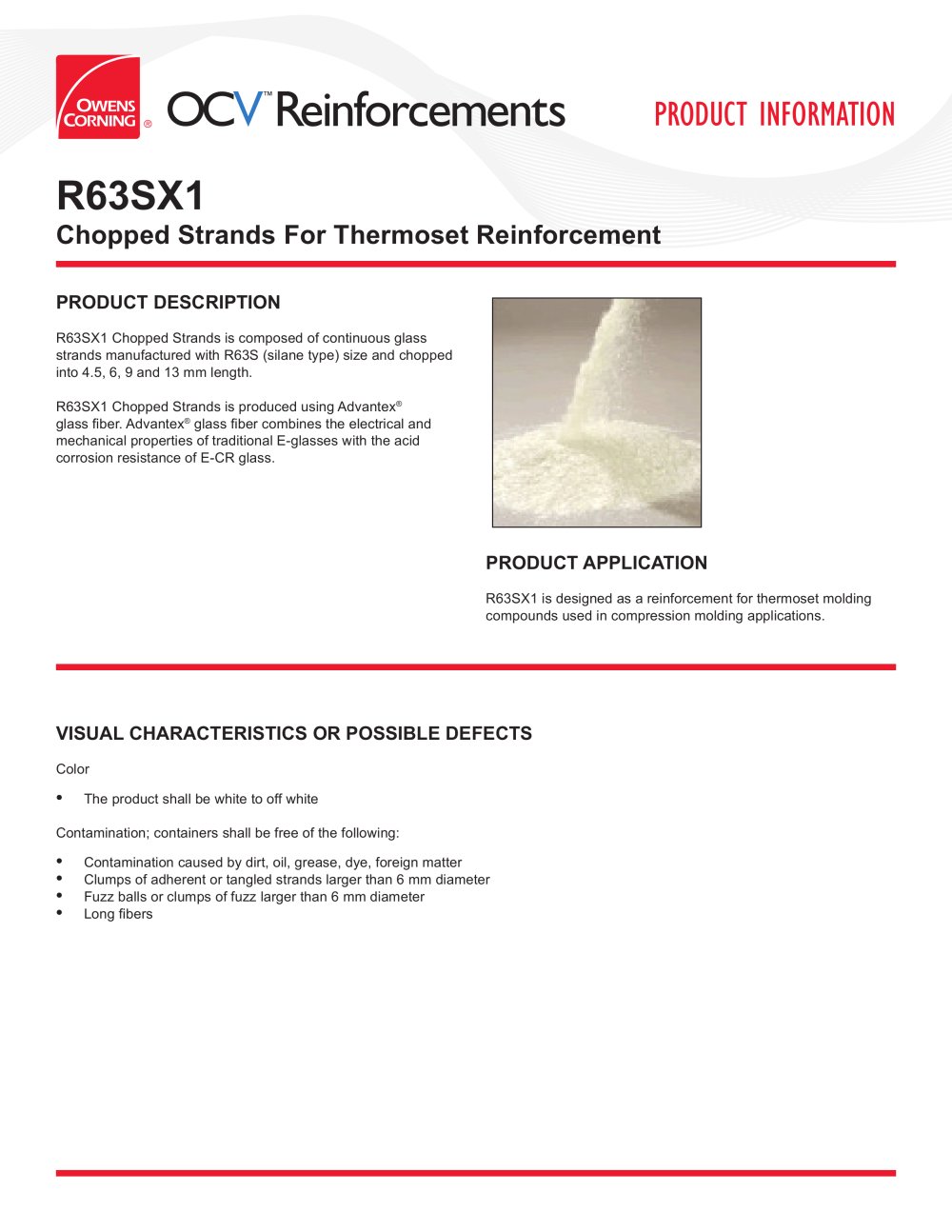

BMC R63SX1 - 1

OCV™Reinforcements PRODUCT INFORMATION Chopped Strands For Thermoset Reinforcement PRODUCT DESCRIPTION R63SX1 Chopped Strands is composed of continuous glass strands manufactured with R63S (silane type) size and chopped R63SX1 Chopped Strands is produced using Advantex® glass fiber. Advantex® glass fiber combines the electrical and mechanical properties of traditional E-glasses with the acid corrosion resistance of E-CR glass. PRODUCT APPLICATION R63SX1 is designed as a reinforcement for thermoset molding compounds used in compression molding applications. VISUAL CHARACTERISTICS OR POSSIBLE DEFECTS • The product shall be white to off white Contamination; containers shall be free of the following: • Contamination caused by dirt, oil, grease, dye, foreign matter • Clumps of adherent or tangled strands larger than 6 mm diameter • Fuzz balls or clumps of fuzz larger than 6 mm diameter • Long fibers

Open the catalog to page 1
BMC R63SX1 - 2

Chopped Strands For Thermoset Reinforcement PRODUCT AVAILABILITY AVAILABLE PACKAGING The containers are palletized and maintained either with strappings or with a stretch film or with a shrink film. Glass fiber products must remain in packaging material until just The packaging system is designed to allow stacking of two pallets. When stacking two high, care should be taken to place correctly and smoothly the top pallet. Owens Corning is not responsible for any damage resulting from stacking pallets higher than two high. OCV™ Reinforcements OWENS CORNING ONE OWENS CORNING PARKWAY EUROPEAN...

Open the catalog to page 2
