Product catalog summary
Product Description: The 979 chopped strands are high-performance reinforcements designed for optimal use in BMC compression, injection, and transfer molding applications. They are compatible with polyester and vinylester resin systems and are suitable for various applications such as appliance components, automotive parts, and electrical components.
Product Reference: The reference format is EC 14 6 mm 979, where 'E' denotes glass type, 'C' indicates a continuous process, '14' is the filament diameter in micrometers, '6' is the nominal chop length, and '979' is the OCV™ Reinforcements code.
Features and Benefits: The strands mix easily into resin, maintain compound color due to their whiteness, and do not cause pollution. They enhance mechanical properties in molded parts.
Technical Characteristics: The loss on ignition is 1.5%, and moisture content is ≤ 0.15%, as per ISO standards.
Product Availability: The product is available in filament diameters of 17 µm and chopped lengths of 3, 6, and 12 mm.
Packaging: The product is packaged in bags with net weights of 15-20 kg, with pallet dimensions of 120x90x115 cm. Pallets can weigh between 540-600 kg net.
Labeling: Each bag and pallet has identification labels with product reference, net and gross weights, and pallet identification codes.
Storage: Store in original packaging in a dry, cool place with temperatures between 10-35°C and humidity between 35-85%. For lower temperatures, acclimate pallets 24 hours before processing.
Disclaimer: Information is provided as a guide and is based on laboratory data and field tests. No warranty is provided for specific applications, and users must test for suitability.
See more

Catalog excerpts

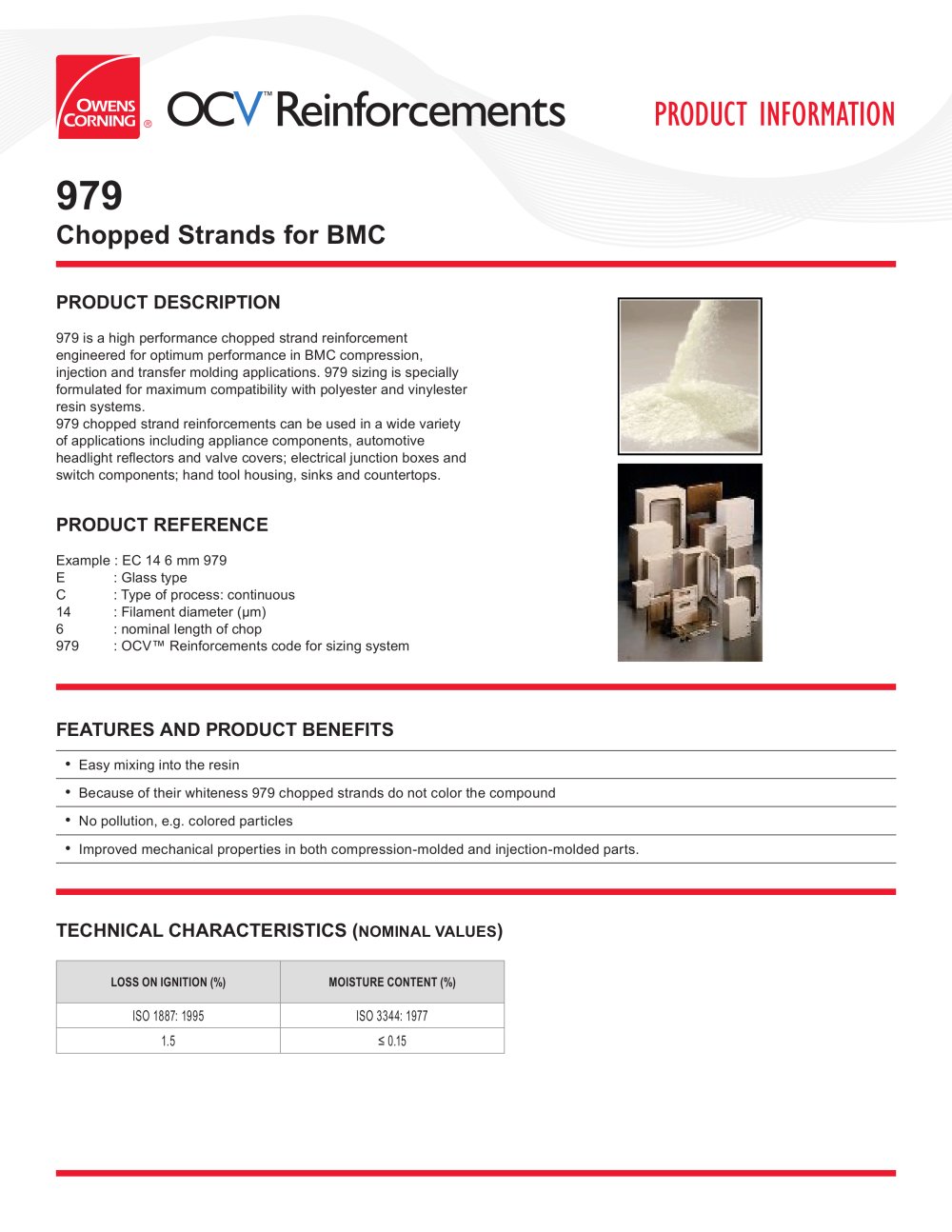

BMC 979-1

PRODUCT INFORMATION PRODUCT DESCRIPTION 979 is a high performance chopped strand reinforcement engineered for optimum performance in BMC compression, injection and transfer molding applications. 979 sizing is specially formulated for maximum compatibility with polyester and vinylester resin systems. 979 chopped strand reinforcements can be used in a wide variety of applications including appliance components, automotive headlight reflectors and valve covers; electrical junction boxes and switch components; hand tool housing, sinks and countertops. PRODUCT REFERENCE C : Type of process: continuous 6 : nominal length of chop 979 : OCV™ Reinforcements code for sizing system FEATURES AND PRODUCT BENEFITS Easy mixing into the resin • Because of their whiteness 979 chopped strands do not color the compound • No pollution, e.g. colored particles Improved mechanical properties in both compression-molded and injection-molded parts. TECHNICAL CHARACTERISTICS (NOMINAL VALUES)

 Open the catalog to page 1
BMC 979-2

PRODUCT AVAILABILITY Examples of collective packaging: * Add 35 to 45 kg to obtain gross weight. The chopped strands should be stored in its original packaging in a dry and cool place. Best conditions are at temperature from 10 to 35°C and humidity between 35 and 85 %. If you store the product at lower temperatures, please move the soon to be processed pallets to the production area 24 hours ahead ottime. You can stock pallets one on one with a plywood plank in • Each bag has one identification label showing the product reference and the nominal net weight in kg. • Each pallet has two identification...

 Open the catalog to page 2
