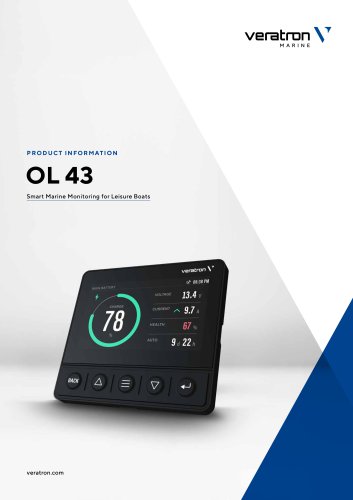

OL 43 Smart Marine Monitoring for Leisure Boats

OL43 is more than a display— it’s a smart interface that puts control, clarity, and confidence at your fingertips. The brain behind your boat’s data—centralizing and interpreting operations with intelligent precision. Delivers high-brightness visuals and real-time data processing with lightning-fast startup. Supports analog sensors, CAN protocols, and up to 16 EasyLink satellites. Equipped with NMEA 2000®, SAE J1939, Ethernet, for total integration with your boat system. Multilingual GUI, flexible screen layouts, and sensor calibration tailored to your needs. Perfect visibility

OL 43 TFT DISPLAY Seamless integration / real-time monitoring The OL 43 Multifunction Display redefines clarity and control in marine environments. Featuring a 4.3” optically bonded IPS TFT screen with anti-glare mineral glass, it delivers brilliant visibility even in harsh conditions. Designed for seamless integration, it supports NMEA 2000® and SAE J1939 protocols, analog sensors, and Ethernet connectivity. With lightning-fast startup, customizable multilingual GUI, and robust IPX7-rated housing, the OL 43 is built to perform. Whether monitoring engines, tanks, batteries, or navigation data,...

SYSTEM ARC H ITECT UR E Available sensor inputs:  1 x Frequency input  2 x Resistive  1 x Voltage 0-5 V  Every analog sensor reading is bridged to NMEA 2000® (converter included)  Up to 16 EasyLink satellites can be connected to the display through daisy chain connection The brain behind your boat’s data. Engine Monitoring Single and Dual Engine Screens  Up to 4 engine supported  Every critical engine data displayed in one screen  Configurable numeric fields Tank Monitoring  Monitor up to 4 tanks at once  4 tanks supported for each fluidtype  Fuel / Fresh Water / Grey Water / Black Water tanks...

TECHNICAL DATA SUPPORTED DATA 4.3" TFT display with transmissive layer technology Battery Voltage Rudder Angle Gear Position Battery Current Mineral glass front lens with antiglare Course Over Ground Manual or step-by-step assisted calibration (auto learn) Boost Pressure Heading (True/Mag) Coolant Press Battery Temperature Boat Speed Coolant Temp Speed Over Ground Standard Ø 85 mm round Housing in flame retardant reinforced resin Molex MX150 12 pins "A" coding Micro-C M12 5 pins "A" coding M12 4 pins "D" coding Rated voltage Current consumption Analog ports 1x Frequency input 2x Resistive inputs...

Veratron AG / Industriestrasse 18 / 9464 Rüthi / Switzerland T +41 71 7679 111 / [email protected] / veratron.com The information provided in this brochure contains only general descriptions or performance characteristics, which do not always apply as described in case of actual use or which may change as a result of further development of the products. This information is merely a technical description of the product. It is not meant or intended to be a special guarantee for a particular quality or particular durability. An obligation to provide the respective characteristics shall only exist...
