SV 44 SURFACE

Catalog excerpts

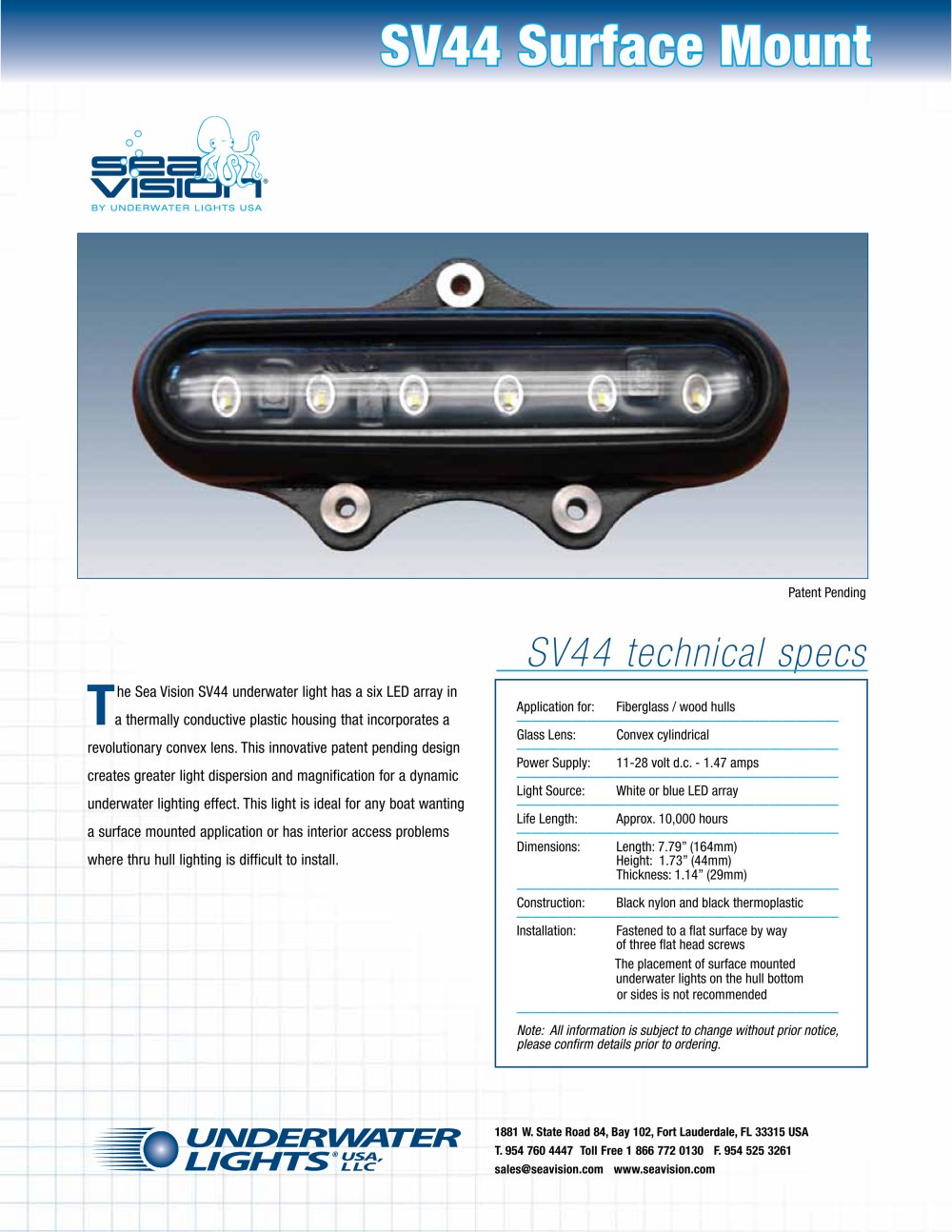

Patent Pending  he Sea Vision SV44 underwater light has a six LED array in a thermally conductive plastic housing that incorporates a revolutionary convex lens. This innovative patent pending design creates greater light dispersion and magnification for a dynamic underwater lighting effect. This light is ideal for any boat wanting a surface mounted application or has interior access problems where thru hull lighting is difficult to install. SV44 technical specs Application for: Fiberglass / wood hulls ——————————————————————— Glass Lens: Convex cylindrical ——————————————————————— Power Supply: 11-28 volt d.c. - 1.47 amps ——————————————————————— Light Source: White or blue LED array ——————————————————————— Life Length: Approx. 10,000 hours ——————————————————————— Dimensions: Length: 7.79” (164mm) Height: 1.73” (44mm) Thickness: 1.14” (29mm) ——————————————————————— Construction: Black nylon and black thermoplastic ——————————————————————— Installation: Fastened to a flat surface by way of three flat head screws The placement of surface mounted underwater lights on the hull bottom or sides is not recommended ——————————————————————— Note: All information is subject to change without prior notice, please confirm details prior to ordering. 1881 W. State Road 84, Bay 102, Fort Lauderdale, FL 33315 USA T. 954 760 4447 Toll Free 1 866 772 0130 F. 954 525 3261 sales@seavision.com www.seavision.com

 Open the catalog to page 1

SURFACE MOUNTED, LED ARRAY, 12VDC or 24VDC Introduction: Congratulations on the purchase of your new surface mounted LED light (Patent Pending). Underwater Lights® USA, LLC takes pride in providing well designed, high quality and thoroughly tested lights that allow you to “enhance your boating experience”. These lights can be installed in your vessel for aesthetics, to attract fish, for security and safety. General Operating Information: The commercial grade Light Emitting Diode (LED) technology used in this light will provide robust and reliable operation under normal operating conditions....

 Open the catalog to page 2

SURFACE MOUNTED, LED ARRAY, 12VDC or 24VDC Installation: This light should be installed at least 125-150mm (5-6”) below the water line by qualified/approved personnel using proper tools and materials. The placement of surface mounted underwater lights on the hull bottom or sides is not recommended. Important! To prevent lense breakage, mounting surface must be flat and have no raised imperfections. To prevent mounting tab breakage, carefully and evenly tighten the three Phillips Pan Head Screws (11) by hand using a screwdriver (do not use power tools!). For cable existing at top - After...

 Open the catalog to page 3
