SV 43 THRU HULL

Product catalog summary

Introduction: The SV43 LED light is designed for smaller boats requiring LED lighting with a thru hull installation, avoiding exterior wiring. It is suitable for GRP, fiberglass, and wood hulls.

Technical Specifications: The light features an LED array available in white or blue, with a lifespan of approximately 10,000 hours. It operates at a color temperature of 6500 Kelvin and requires a 12V DC power supply at 0.35 amps. The casing is made of marine bronze, and the light dimensions are 2.36” x 6.61”.

Installation: Recommended installation is at least 6 inches below the waterline. The hull thickness should be between 10mm and 102mm. Proper sealing and grounding are essential to prevent water intrusion and corrosion.

Operating Information: The light should not be operated out of water but can be used while the vessel is underway. The beam can reach up to 20 feet depending on water clarity.

Safety Information: Ensure the light is electrically connected to the vessel's grounding system. Regular inspections every six months are recommended for both the light and its cabling.

Troubleshooting and Warranty: For technical support, contact the Florida office. The product comes with a two-year warranty against defects, excluding misuse or unauthorized modifications.

Serviceable Parts: Some components like the strain relief O-ring and cable strain relief are field serviceable, while others like the LED array are not.

Catalog excerpts

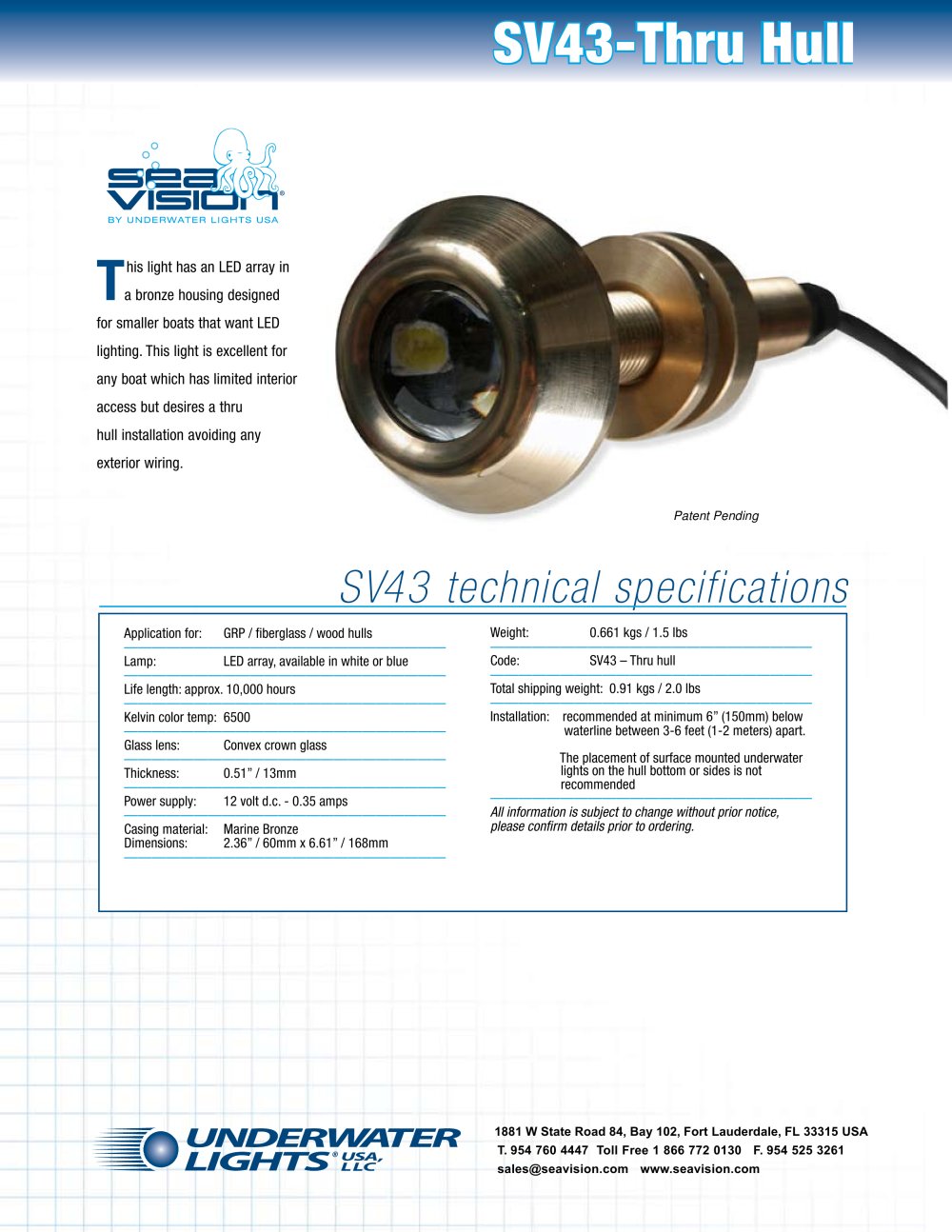

his light has an LED array in a bronze housing designed for smaller boats that want LED lighting. This light is excellent for any boat which has limited interior access but desires a thru hull installation avoiding any exterior wiring. Patent Pending SV43 technical specifications Application for: GRP / fiberglass / wood hulls ——————————————————————— Lamp: LED array, available in white or blue ——————————————————————— Life length: approx. 10,000 hours ——————————————————————— Kelvin color temp: 6500 ——————————————————————— Glass lens: Convex crown glass ——————————————————————— Thickness: 0.51” / 13mm ——————————————————————— Power supply: 12 volt d.c. - 0.35 amps ——————————————————————— Casing material: Marine Bronze Dimensions: 2.36” / 60mm x 6.61” / 168mm ——————————————————————— Weight: 0.661 kgs / 1.5 lbs ——————————————————————— Code: SV43 – Thru hull ——————————————————————— Total shipping weight: 0.91 kgs / 2.0 lbs ——————————————————————— Installation: recommended at minimum 6” (150mm) below waterline between 3-6 feet (1-2 meters) apart. The placement of surface mounted underwater lights on the hull bottom or sides is not recommended ——————————————————————— All information is subject to change without prior notice, please confirm details prior to ordering. 1881 W State Road 84, Bay 102, Fort Lauderdale, FL 33315 USA T. 954 760 4447 Toll Free 1 866 772 0130 F. 954 525 3261 [email protected] www.seavision.com

Open the catalog to page 1

THRU HULL, LED ARRAY, 12VDC Important Information, Please Save Congratulations on the purchase of your new thru hull LED light (Patent Pending). Underwater Lights® USA, LLC takes pride in providing well designed, high quality and thoroughly tested lights that allow you to “enhance your boating experience”. These lights can be installed in your vessel for aesthetics, to attract fish, for security and safety. General Operating Information: The commercial grade Light Emitting Diode (LED) technology used in this light will provide robust and reliable operation under normal operating conditions. The...

Open the catalog to page 2

THRU HULL, LED ARRAY, 12VDC Installation: This light should be installed at least 125-150mm (5-6”) below the water line by qualified/approved personnel using proper tools and materials. The minimum hull thickness is 10mm (0.4”) and maximum is 102mm (4”). After selecting a flat surface, cut a 19mm (0.75”) diameter hole through the vessel hull in the desired location. Caution! Check that no electrical wiring, fuel lines, oil lines, water lines etc., pass near or through the intended hole location. The placement of surface mounted underwater lights on the hull bottom or sides is not recommended....
