SV 42 THRU HULL

Product catalog summary

Product Overview: The SV42 is an LED light designed for boats 40 feet and under, featuring a bronze housing suitable for thru hull installation without exterior wiring. It is ideal for boats with limited interior access.

Technical Specifications:

Application: Suitable for GRP, fiberglass, and wood hulls.
Lamp: Six LED modules available in white or blue.
Lifespan: Approximately 10,000 hours.
Color Temperature: 6500 Kelvin.
Lens: Convex crown glass.
Dimensions: Thickness of 0.93” / 23.5mm x 2.2” / 57mm; Overall dimensions of 5.59” / 142mm x 3” / 78.5mm.
Power Supply: 12 volt d.c. at 1.4 amps or 24 volt d.c. at 0.73 amps.
Casing Material: Marine Bronze.
Weight: 1.4 kg / 3 lbs; Total shipping weight is 1.8 kg / 4 lbs.

Installation Recommendations: Install at least 5-6” (125-150mm) below the waterline and space 3-6 feet (1-2 meters) apart.

Additional Information: All specifications are subject to change without notice. Confirm details before ordering. Contact information: 277 SW 33rd Court, Fort Lauderdale, FL 33315 USA, Phone: 954 760 4447, Toll-Free: 1 866 772 0130, Fax: 954 525 3261, Email: [email protected], Website: www.seavision.com

Catalog excerpts

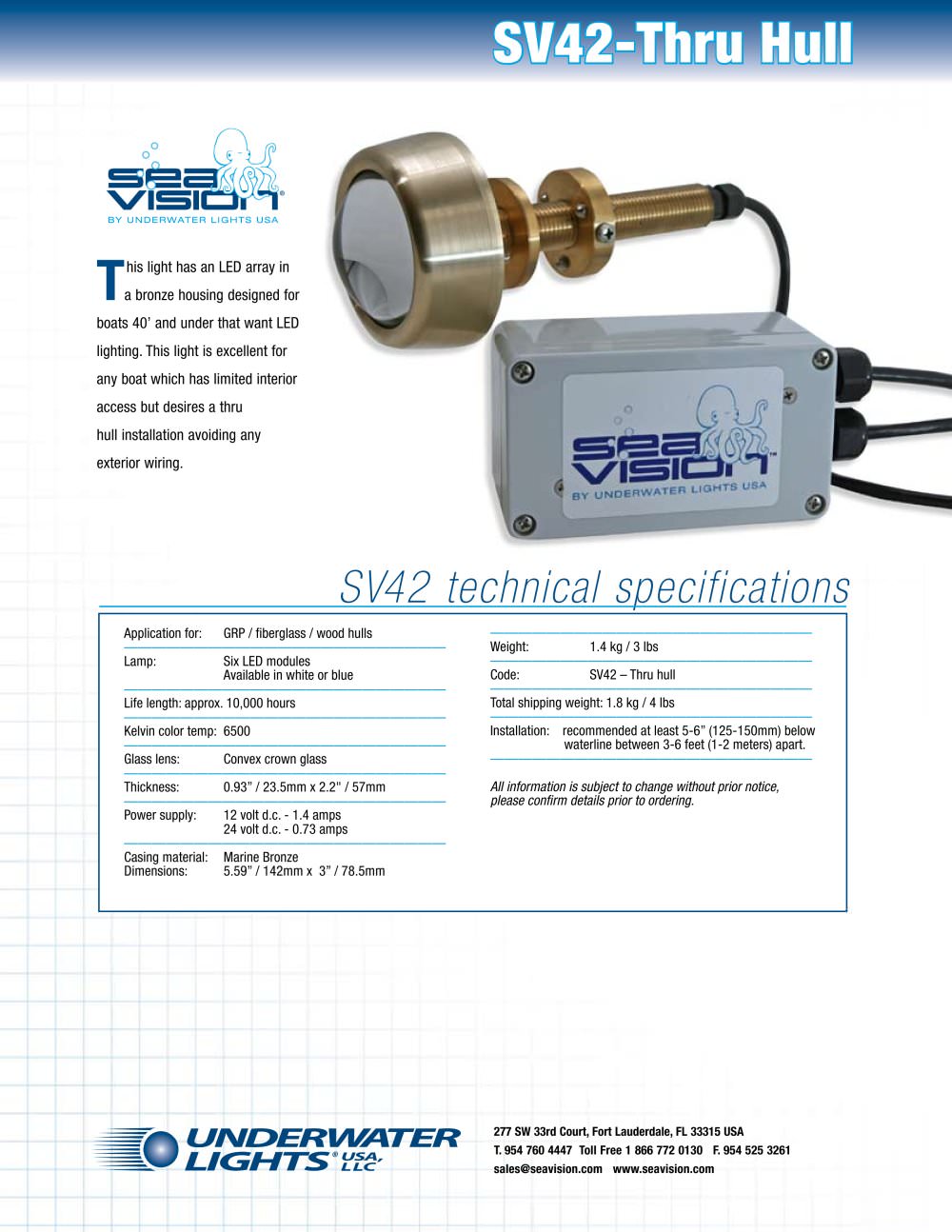

SV42-Thru Hull T his light has an LED array in a bronze housing designed for boats 40’ and under that want LED lighting. This light is excellent for any boat which has limited interior access but desires a thru hull installation avoiding any exterior wiring. SV42 technical specifications Application for: GRP / fiberglass / wood hulls ——————————————————————— Lamp: Six LED modules Available in white or blue ——————————————————————— Life length: approx. 10,000 hours ——————————————————————— Kelvin color temp: 6500 ——————————————————————— Glass lens: Convex crown glass ——————————————————————— Thickness: 0.93” / 23.5mm x 2.2" / 57mm ——————————————————————— Power supply: 12 volt d.c. - 1.4 amps 24 volt d.c. - 0.73 amps ——————————————————————— Casing material: Marine Bronze Dimensions: 5.59” / 142mm x 3” / 78.5mm ——————————————————————— Weight: 1.4 kg / 3 lbs ——————————————————————— Code: SV42 – Thru hull ——————————————————————— Total shipping weight: 1.8 kg / 4 lbs ——————————————————————— Installation: recommended at least 5-6” (125-150mm) below waterline between 3-6 feet (1-2 meters) apart. ——————————————————————— All information is subject to change without prior notice, please confirm details prior to ordering. 277 SW 33rd Court, Fort Lauderdale, FL 33315 USA T. 954 760 4447 Toll Free 1 866 772 0130 F. 954 525 3261 [email protected] www.seavision.com

Open the catalog to page 1
