Sea Vision SV10 Metal Halide Underwater light

Catalog excerpts

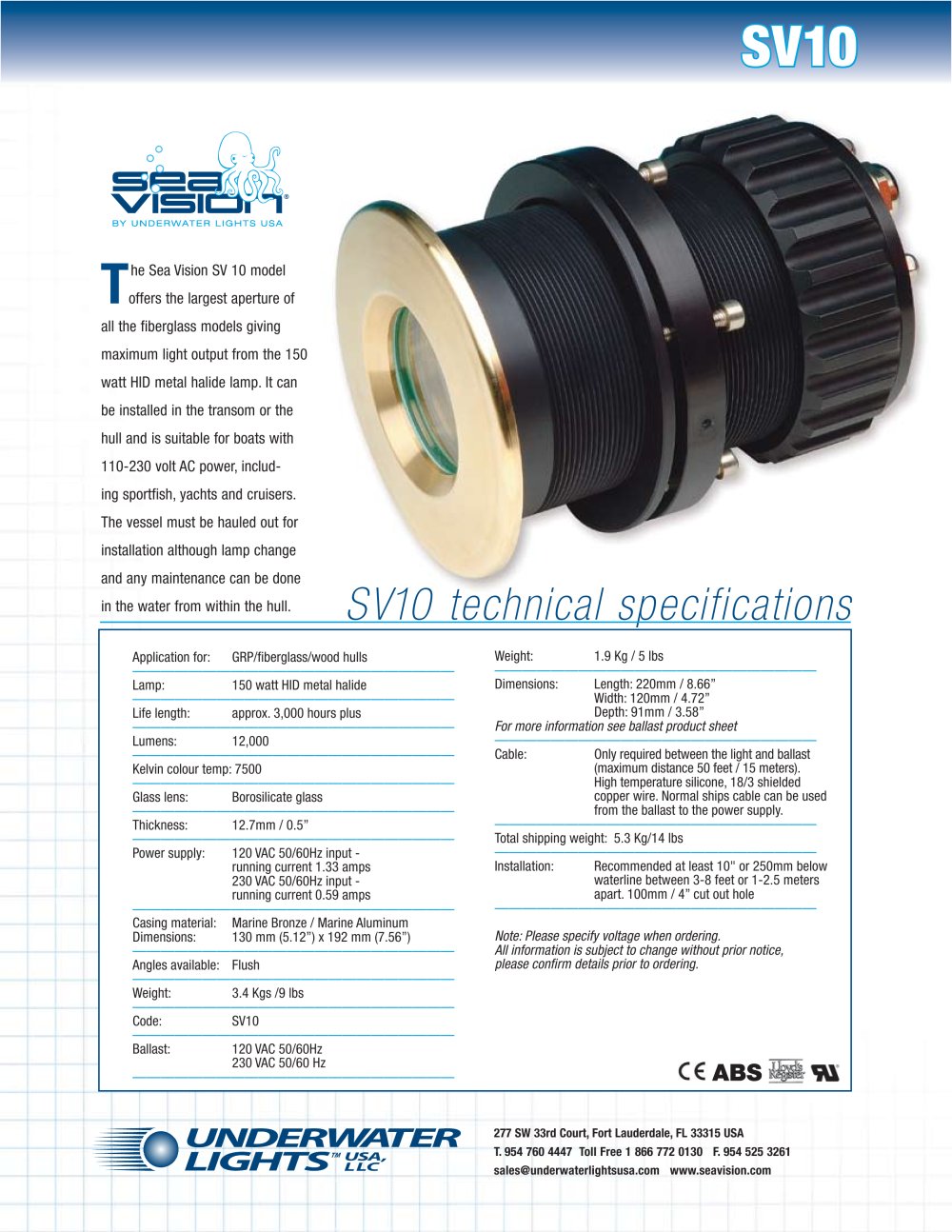

SV10 T  he Sea Vision SV 10 model offers the largest aperture of all the fiberglass models giving maximum light output from the 150 watt HID metal halide lamp. It can be installed in the transom or the hull and is suitable for boats with 110-230 volt AC power, including sportfish, yachts and cruisers. The vessel must be hauled out for installation although lamp change and any maintenance can be done in the water from within the hull. SV10 technical specifications Application for: GRP/fiberglass/wood hulls ——————————————————————— Lamp: 150 watt HID metal halide ——————————————————————— Life length: approx. 3,000 hours plus ——————————————————————— Lumens: 12,000 ——————————————————————— Kelvin colour temp: 7500 ——————————————————————— Glass lens: Borosilicate glass ——————————————————————— Thickness: 12.7mm / 0.5” ——————————————————————— Power supply: 120 VAC 50/60Hz input running current 1.33 amps 230 VAC 50/60Hz input running current 0.59 amps ——————————————————————— Casing material: Marine Bronze / Marine Aluminum Dimensions: 130 mm (5.12”) x 192 mm (7.56”) ——————————————————————— Angles available: Flush ——————————————————————— Weight: 3.4 Kgs /9 lbs ——————————————————————— Code: SV10 ——————————————————————— Ballast: 120 VAC 50/60Hz 230 VAC 50/60 Hz ——————————————————————— Weight: 1.9 Kg / 5 lbs ——————————————————————— Dimensions: Length: 220mm / 8.66” Width: 120mm / 4.72” Depth: 91mm / 3.58” For more information see ballast product sheet ——————————————————————— Cable: Only required between the light and ballast (maximum distance 50 feet / 15 meters). High temperature silicone, 18/3 shielded copper wire. ormal ships cable can be used N from the ballast to the power supply. ——————————————————————— Total shipping weight: 5.3 Kg/14 lbs ——————————————————————— Installation: Recommended at least 10" or 250mm below waterline between 3-8 feet or 1-2.5 meters apart. 100mm / 4” cut out hole ——————————————————————— Note: Please specify voltage when ordering. All information is subject to change without prior notice, please confirm details prior to ordering. 277 SW 33rd Court, Fort Lauderdale, FL 33315 USA T. 954 760 4447 Toll Free 1 866 772 0130 F. 954 525 3261 sales@underwaterlightsusa.com www.seavision.com

 Open the catalog to page 1
