UL Ti MATE 80 55 watt Xenon 12 & 24 Volt DC

UL Ti MATE 80 55 watt Xenon 12 & 24 Volt DC
2Pages

Catalog excerpts

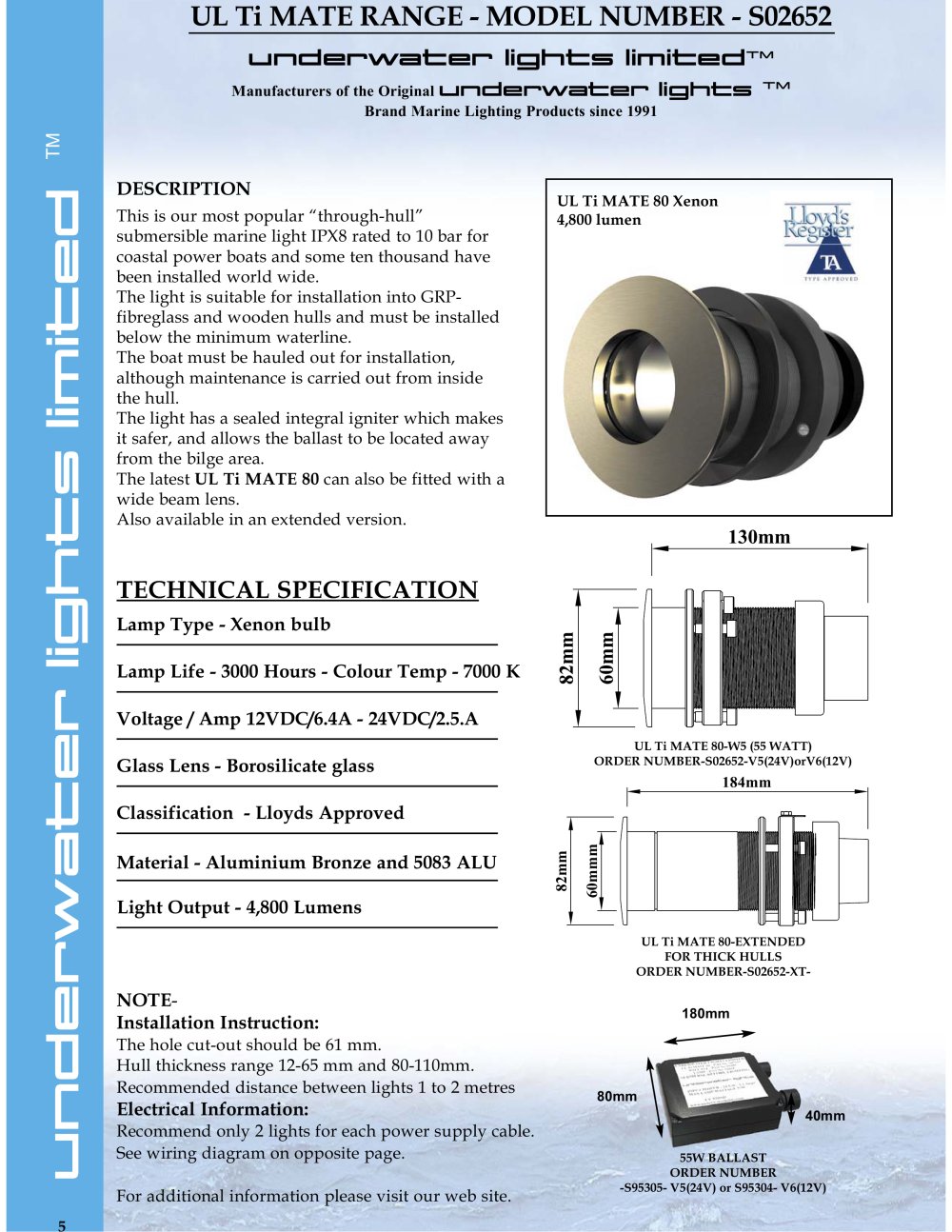

UL Ti MATE 80 55 watt Xenon 12 & 24 Volt DC - 1

UL Ti MATE RANGE - MODEL NUMBER - S02652 undErwatEr Ugh-its limited" Manufacturers of the Original I_II n I'—" '\/vx=3H i—M » |jg| its Brand Marine Lighting Products since 1991 This is our most popular "through-hull" submersible marine light IPX8 rated to 10 bar for coastal power boats and some ten thousand have been installed world wide. The light is suitable for installation into GRP- fibreglass and wooden hulls and must be installed below the minimum waterline. The boat must be hauled out for installation, although maintenance is carried out from inside The light has a sealed integral igniter which makes it safer, and allows the ballast to be located away from the bilge area. The latest UL Ti MATE 80 can also be fitted with a wide beam lens. Also available in an extended version. Glass Lens - Borosilicate glass Classification - Lloyds Approved Material - Aluminium Bronze and 5083 ALU Light Output - 4,800 Lumens Installation Instruction: The hole cut-out should be 61 mm. Hull thickness range 12-65 mm and 80-110mm. Recommended distance between lights 1 to 2 metres Electrical Information: Recommend only 2 lights for each power supply cable. See wiring diagram on opposite page. For additional information please visit our web site. TECHNICAL SPECIFICATION Lamp Type - Xenon bulb Lamp Life - 3000 Hours - Colour Temp - 7000 K g ORDER NUMBER

Open the catalog to page 1

UL Ti MATE 80 55 watt Xenon 12 & 24 Volt DC - 2

UL Ti MATE RANGE - MODEL NUMBER - S02652-V5/V6 Manufacturers of the Original I_II n I'—" '\/vx=3H i—M » |jg| |fc« Brand Marine Lighting Products since 1991 FIXED CABLE START UP CURRENT: 4.5 A- Voltage 12-14vdc CONNECTING WIRE BETWEEN LAMPS: AWG10 MARINE GRADE CABLE FIXED CABLE START UP CURRENT: 8 A - Voltage 21-27vdc CONNECTING WIRE BETWEEN LAMPS: AWG10 MARINE GRADE CABLE

Open the catalog to page 2
