UL Ti MATE 130 SA 150/250 watt 110-230 volt AC

Product catalog summary

Description: The UL Ti MATE 130 SA is a versatile and powerful submersible marine light designed for large sports fish yachts with GRP-fibreglass and wooden hulls. It features an internal adjustment system allowing the beam angle to be varied and moved by 20 degrees. The light has a larger aperture, increasing output by 25%, and should be installed 250mm below the waterline. Installation requires the boat to be hauled out, but maintenance can be done from inside the hull. The light is rated IPX8 to 10 bar.

Technical Specification: The lamp type is MSD Metal Halide, available in 150w or 250w. It is constructed from Aluminium Bronze and 5083 ALU with a Borosilicate glass lens. The lamp life is 3000 hours with a color temperature of 7000 K.

Installation Instructions: The hole cut-out should be 100 mm, with 170mm clearance behind the projector lid for maintenance. Suitable for hull thicknesses ranging from 12 to 120 mm.

Electrical Information: For the 150w lamp, the maximum recommended distance between ballast and projector is 10m, and for the 250w lamp, it is 25m. The 150w uses a high temp silicone 3 core cable, while the 250w uses a 2 core 1mm square cable. Voltage and current specifications are provided for both lamp types.

Additional Information: The 150w lamp provides 12,000 lumens, and the 250w lamp provides 19,000 lumens. For further details, visit the manufacturer's website.

Catalog excerpts

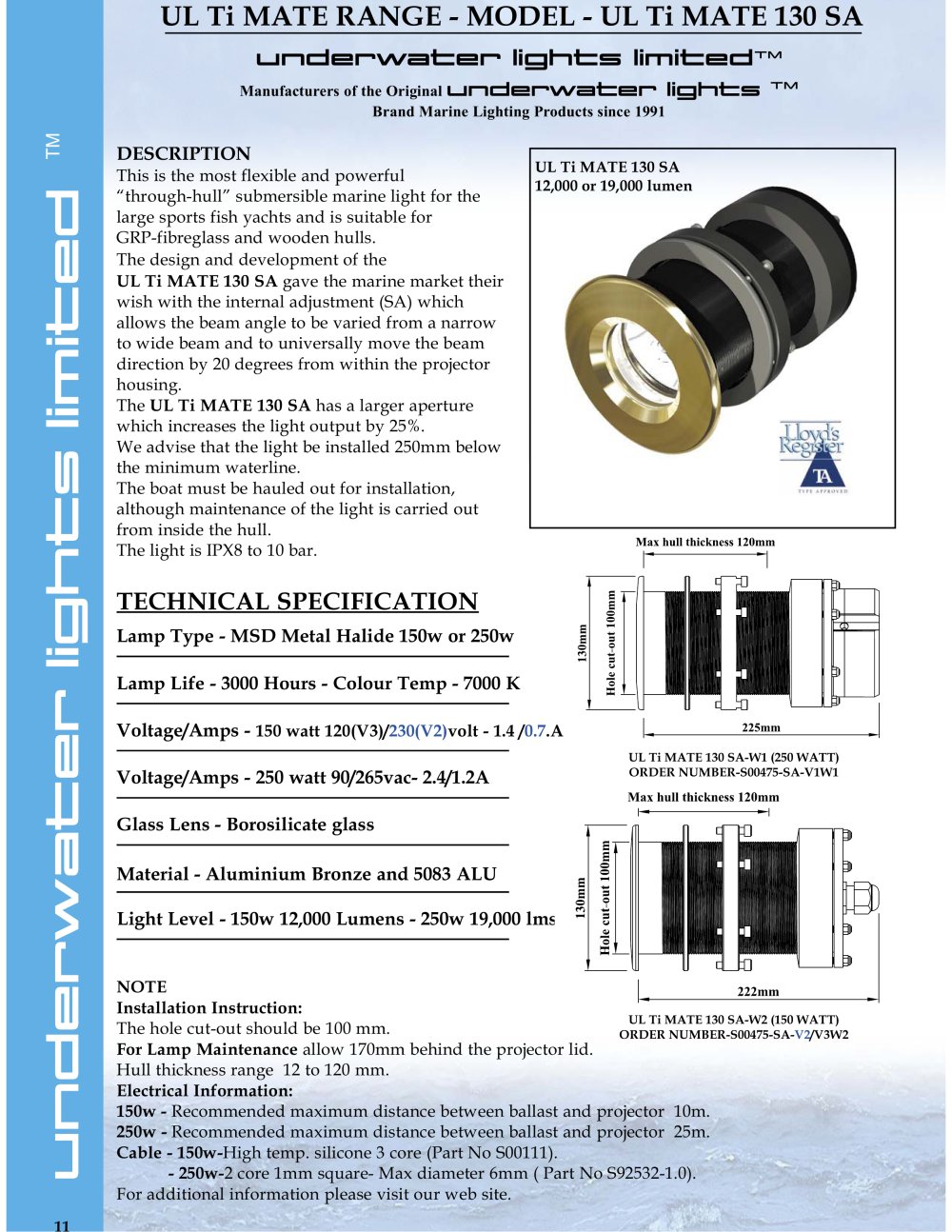

UL Ti MATE 130 SA 150/250 watt 110-230 volt AC-1

UL Ti MATE RANGE - MODEL - UL Ti MATE 130 SA Manufacturers of the Original I_II n I'—" '\/vx=3H i_n » |fcç Brand Marine Lighting Products since 1991 This is the most flexible and powerful "through-hull" submersible marine light for the large sports fish yachts and is suitable for GRP-fibreglass and wooden hulls. UL Ti MATE 130 SA gave the marine market their wish with the internal adjustment (SA) which allows the beam angle to be varied from a narrow to wide beam and to universally move the beam direction by 20 degrees from within the projector The UL Ti MATE 130 SA has a larger aperture which increases the light output by 25%. We advise that the light be installed 250mm below The boat must be hauled out for installation, although maintenance of the light is carried out from inside the hull. TECHNICAL SPECIFICATION Lamp Type - MSD Metal Halide 150w or 250w Lamp Life - 3000 Hours - Colour Temp - 7000 K Glass Lens - Borosilicate glass Material - Aluminium Bronze and 5083 ALU Installation Instruction: The hole cut-out should be 100 mm. For Lamp Maintenance allow 170mm behind the projector lid. Hull thickness range 12 to 120 mm. Electrical Information: 150w - Recommended maximum distance between ballast and projector 10m. 250w - Recommended maximum distance between ballast and projector 25m. Cable - 150w-High temp, silicone 3 core (Part No S00111). - 250w-2 core 1mm square- Max diameter 6mm ( Part No S92532-1.0). For additional information please visit our web site.
