ULSTEIN A122

ULSTEIN A122

Product catalog summary

Overview
The document provides technical specifications and details for the Anchor Handling Tug Supply and Offshore Construction Vessel, M/V OLYMPIC TBN, built by Ulstein Verft AS for Olympic Offshore AS, with delivery in 2009. The vessel is designed by Ulstein Design AS and is known for its innovative technological solutions.

Main Characteristics

Length overall: Approximately 93.8 meters
Length between perpendiculars: 82.7 meters
Breadth moulded: 23.0 meters
Depth to main deck: 10.0 meters
Maximum draught: 8.0 meters
Design draught: 7.5 meters
Deadweight: 4925 tonnes
Cargo deck area: 840 m²
Speed: 16 knots

Capacities

Fuel Oil: 2800 m³
Base Oil: 180 m³
Fresh Water: 800 m³
Water Ballast/Drill Water: 4500 m³
Mud: 660 m³
Brine, cat. B: 990 m³
Dry Bulk: 180 m³
Lubrication Oil: 30 m³
Bilge/Sludge/Drop Tank: 100 m³

Classification and Compliance

Classified by Det Norske Veritas with various certifications including 1A1, SF, E0, NAUT-OSV(A), DYNPOS AUTR, ICE-C, CLEAN DESIGN, OPP-F, COMF-V(3)•C(3), DK(+), HL(+)
Complies with IMO conventions and resolutions ratified by the flag state, including IMO A.469(XII)

Propulsion and Thrusters

Diesel Electric Hybrid Propulsion
Main diesel engines: Two engines, each 4500 kW at 750 rpm
Main generator engines: Five engines, each 2100 ekW at 1800 rpm
Main propellers: Two, each 8500 kW at 132 rpm
Bow tunnel thrusters: Two, each 1200 kW at 900 rpm
Swing-up compass thruster: 1400 kW at 1800 rpm
Stern tunnel thrusters: Two, each 1000 kW at 1200 rpm
Shaft generators: Two, each 2900 ekW at 720 rpm

Performance and Capacity

Bollard Pull: 270 tonnes
Total generator power: 16300 ekW
Rig Chain Lockers: 800 m³
Deck Load: 2100 tonnes
Gross Tonnage: 6450 RT
Accommodation: 68 persons

Contact Information
Ulstein Verft AS, N-6067 ULSTEINVIK, Norway. Tel. +47 7000 8000, Telefax +47 7000 8038, www.ulsteingroup.com

Catalog excerpts

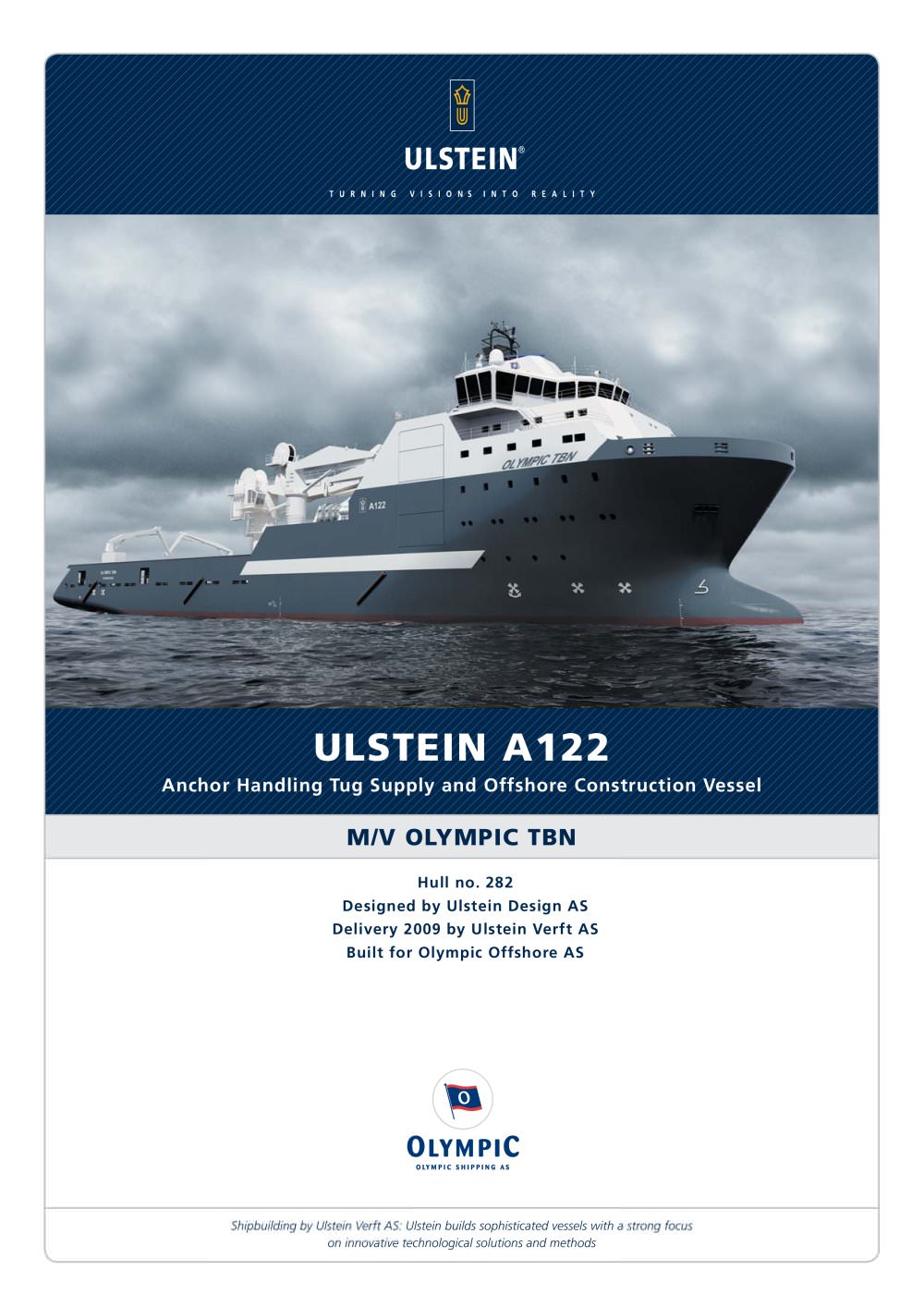

Designed by Ulstein Design AS Delivery 2009 by Ulstein Verft AS Built for Olympic Offshore AS Shipbuilding by Ulstein Verft AS: Ulstein builds sophisticated vessels with a strong focus on innovative technological solutions and methods

Open the catalog to page 1

MAIN CHARACTERISTICS Cargo deck area Bollard Pull Total generator power MAIN DIMENSIONS Length over all appr Breadth moulded Depth to main deck Design draught Fresh water Fresh water (domestic) Water ballast/Drill water Dry Bulk (3 tanks and 2 systems) Bilge/Sludge/Drop tank Rig Chain lockers (4 lockers) Gross tonnage CLASSIFICATION / FLAG Det Norske Veritas » 1A1, SF, E0, NAUT-OSV(A), DYNPOS AUTR, ICE-C, CLEAN DESIGN, OPP-F, COMF-V(3)»C(3), DK(+), HL(+) MO conventions and resolutions that are ratified by the flag state IMO A.469(XII) - Guidelines for the design and construction of OSV DIESEL...
