Product catalog summary
Overview: The M/V “OLYMPIC TRITON” is a Multifunctional Platform Supply Vessel designed by Ulstein Design AS, equipped with a diesel-electric power plant, azimuth main thrusters, and an IMO Class 2 DP plant. It is built to serve the oil exploration and production industry globally.
Main Activities:
  • 150 t SWL Offshore Crane for handling construction blocks.
  • ROV hangar with deployment capabilities on both sides.
  • Reserved area for trencher spread aft of ROV hangar.
  • Large cargo deck capacity and anti-heeling system for crane operations.
Construction and Environmental Compliance: Built in a controlled environment to ensure quality, the vessel has a Green Passport for ship recycling compliance.
Main Dimensions:
  • Length overall: 95.0 m
  • Breadth moulded: 20.5 m
  • Depth to main deck: 9.0 m
  • Max draught: 7.0 m
Capacities:
  • Fuel oil: 1423 m3
  • Fresh water: 906 m3
  • Ballast water: 2615 m3
  • Liquid mud: 965 m3
Classification and Flag: DnV1A1, SF, E0, ICE C, DYNPOS-AUTR, CLEAN, COMF-V(3), HELDK-SH, DK(+), HL(+). Flag: NOR.
Performance: Speed of 15.4 knots.
Accommodation: High-standard facilities for 100 persons, including state cabins, conference room, and various amenities.
Lifesaving and Rescue Equipment: Includes two enclosed lifeboats, six life rafts, and a MOB boat.
Technical Data:
  • Deck Cranes: Knuckle boom offshore crane, 150 tonnes at 10 m outreach.
  • Dry bulk plant: Four tanks with duplex BHS compressor.
  • Liquid Cargo Discharge Systems: Various pumps for fresh water, brine, ballast, fuel oil, and mud.
Navigation and Communication: Integrated systems including ULSTEIN NAV, ARPA radar, ECDIS, and GMDSS-compliant radio installation.
Machinery and Propulsion: Diesel-electric power plant with four main generator engines and two FP main azimuth thrusters.
Fire and Safety Systems: Includes water mist protection and a video monitoring system.
Preparations: Reinforcements for A-frame and handling tower at the ship's stern and moon pool.
See more

Catalog excerpts

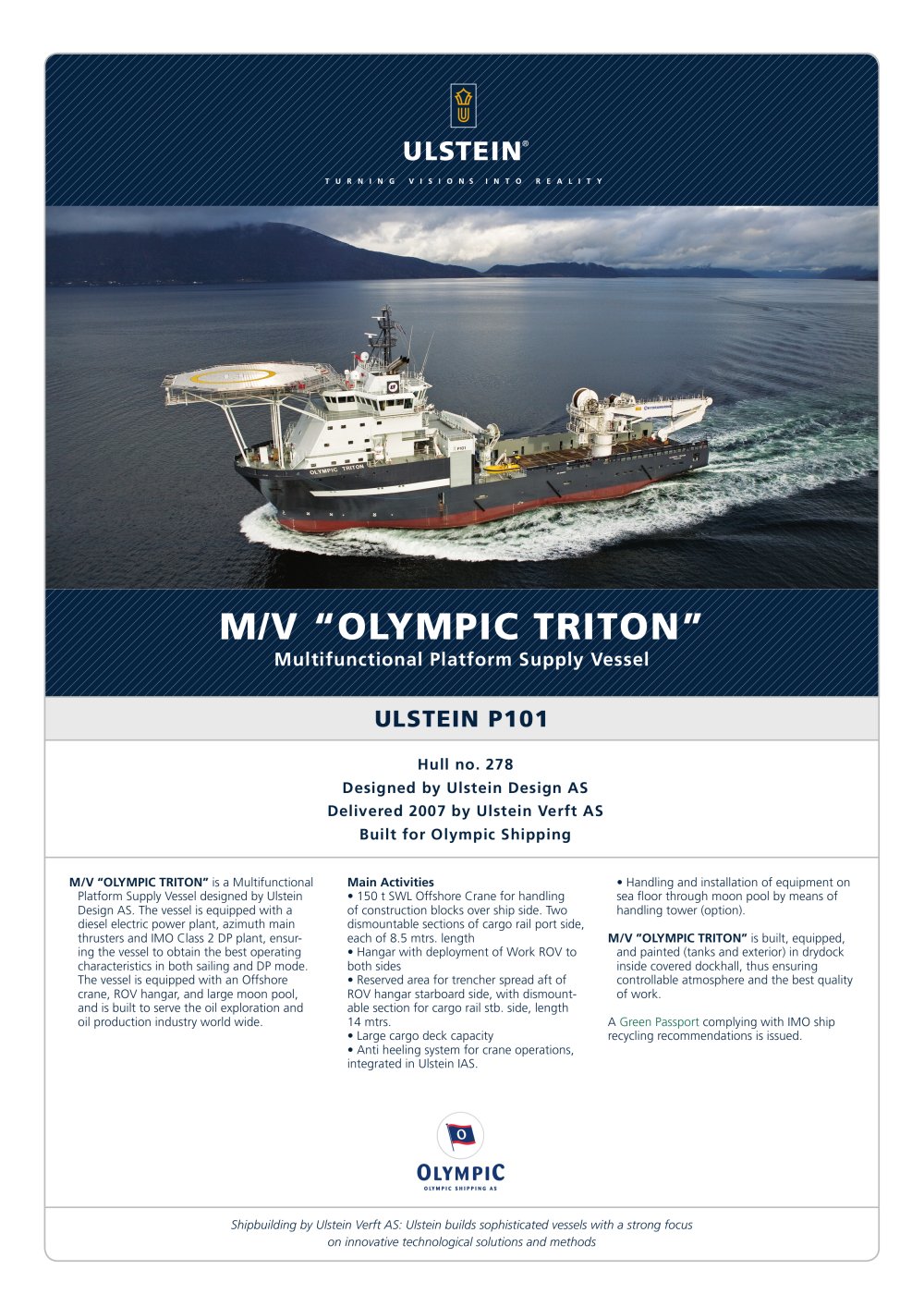

OLYMPIC TRITON-1

Designed by Ulstein Design AS Delivered 2007 by Ulstein Verft AS Built for Olympic Shipping MA/ "OLYMPIC TRITON" is a Multifunctional Platform Supply Vessel designed by Ulstein Design AS. The vessel is equipped with a diesel electric power plant, azimuth main thrusters and IMO Class 2 DP plant, ensur- ng the vessel to obtain the best operating characteristics in both sailing and DP mode The vessel is equipped with an Offshore crane, ROV hangar, and large moon pool, and is built to serve the oil exploration and oil production industry world wide Main Activities • 1 50 t SWL Offshore Crane for handling of construction blocks over ship side. Two demountable sections of cargo rail port side, each of 8.5 mtrs. length • Hangar with deployment of Work ROV to both sides • Reserved area for trencher spread aft of ROV hangar starboard side, with demount- able section for cargo rail stb. side, length • Large cargo deck capacity • Anti heeling system for crane operations, • Handling and installation of equipment on sea floor through moon pool by means of handling tower (option). MA/"OLYMPIC TRITON" is built, equipped, and painted (tanks and exterior) in drydock nside covered dockhall, thus ensuring controllable atmosphere and the best quality A Green Passport complying with IMO ship recycling recommendations is issued. Shipbuilding by Ulstein Verft AS: Ulstein builds sophisticated vessels with a strong focus on innovative technological solutions and methods

 Open the catalog to page 1
OLYMPIC TRITON-2

MAIN DIMENSIONS Length over all approx. 95,0 Depth to main deck 9,0 Cargo deck area (L 55 m X B 17.6 m) 940 m3 Cargo deck dimensioning aft of fr. 64 10 t/m2 Deck load with offshore crane (parked) 1700 ton Deck load with offshore crane dismantled TBC Deadweight at 7m with offshore crane 3916 ton Deadweight at 7m without offshore crane 4330 ton Gross tonnage, international 5947 GRT CLASSIFICATION / FLAG "OLYMPIC TRITON" is built with a hotel compliment of high standards with permanent capacity for 100 • Three one-bed state cabins with day-room and • Seven one-bed state cabins (officers and client)...

 Open the catalog to page 2
