J150

Product catalog summary

Product Overview:
The J150 is a 12-volt deep cycle battery designed for applications such as floor machines, marine, RV, and utility vehicles. It features MasterVent vent caps for easy watering, embedded AP-stud terminals to reduce terminal breakage, and easy grip handles for convenient handling.

Dimensions:
- Maximum width: 7.13 in (181.1 mm)
- Case length: 12.95 in (328.93 mm)
- Case length including handle brackets: 13.80 in (350.52 mm)
- Case height: 9.64 in (244.86 mm)
- Height including terminals: 10.58 in (268.73 mm)

Comparison with Other Models:
The J150 is compared with models 30XHS and 5SHP. It is slightly narrower and taller than the J150 maximum dimensions, with specific differences in width, length, and height.

Performance Specifications:
- 5 Hr Rate AH: 290
- 20 Hr Rate AH: 70
- Cranking Amps: Not specified
- Dimensions: 12 13/16 in (351 mm) length, 7 in (178 mm) width, 10 7/8 in (276 mm) height
- Weight: 84 lbs (38 kg)

Features:
- Easy-to-read top label for battery specifications
- Standard Trojan Charger Settings

Contact Information:
For more information or to find a Master Distributor, call 800-423-6569 or 562-946-8381, or visit www.trojanbattery.com.

Note: Drawings are not to scale, and actual dimensions may vary by +/- 0.125 in or 3.175 mm.

Catalog excerpts

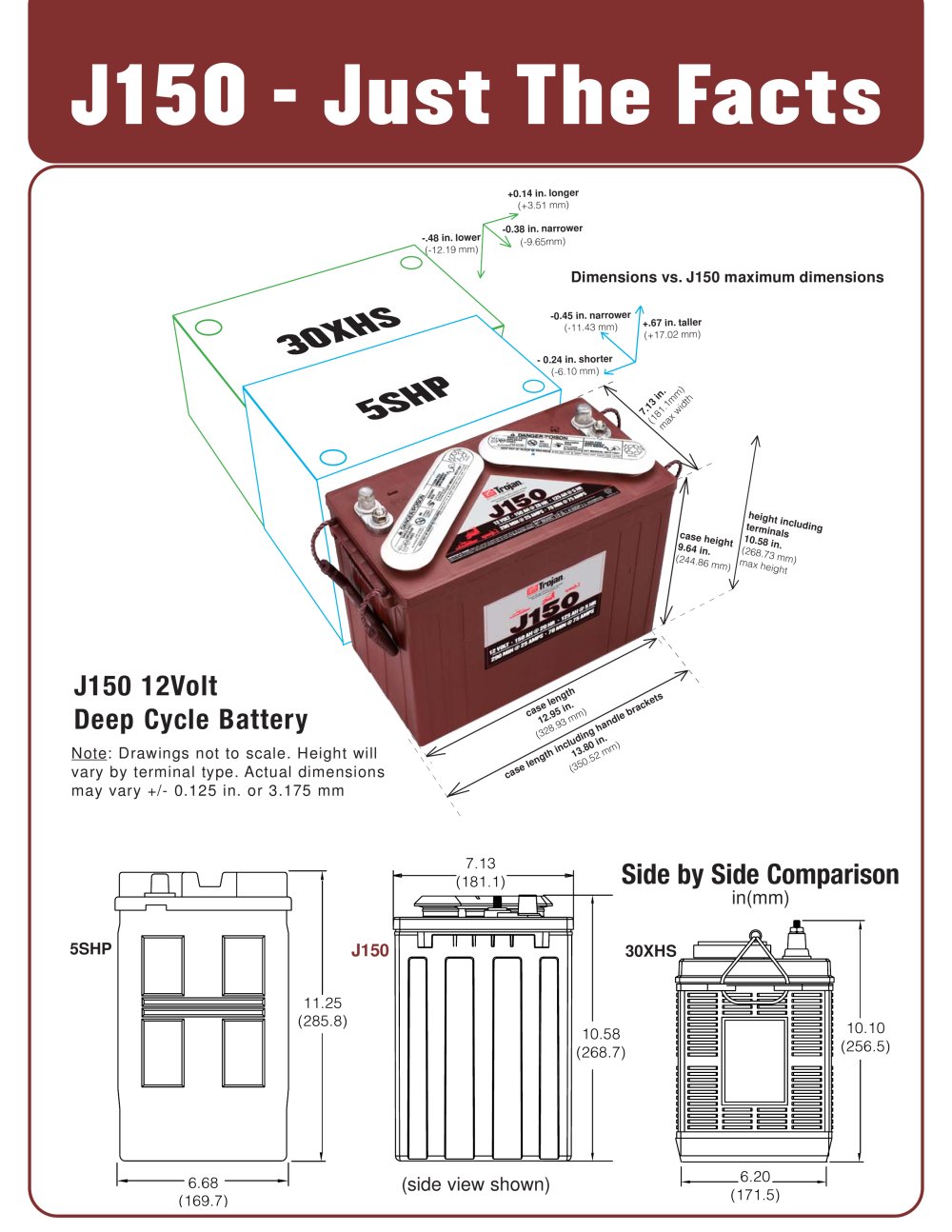

J150 - Just The Facts +0.14 in. longer (+3.51 mm) -.48 in. lower (-12.19 mm) -0.38 in. narrower (-9.65mm) Dimensions vs. J150 maximum dimensions XHS 0 3 -0.45 in. narrower (-11.43 mm) +.67 in. taller (+17.02 mm) - 0.24 in. shorter (-6.10 mm) P 7. (1 13 m 81.1 in. ax m wi m dt ) h 5SH height in termin cluding als case h eight 10.58 in . 9.64 in (268.7 . 3 mm (244.86 mm) max heig ) ht J150 12Volt Deep Cycle Battery gth ets en . ck el as .95 in m) bra c 2 le 1 93 m nd ha 8. (32 ing ud 0 in. ) l inc 13.8 mm 2 gth 0.5 len e (35 as Note: Drawings not to scale. Height will vary by terminal type. Actual dimensions may vary +/- 0.125 in. or 3.175 mm c 7.13 (181.1) Side by Side Comparison in(mm) 5SHP J150 30XHS 11.25 (285.8) 6.68 (169.7) 10.10 (256.5) 10.58 (268.7) (side view shown) 6.20 (171.5)

Open the catalog to page 1

NEW PRODUCT INTRODUCTION J150 vs. 30XHS and 5SHP Product Specifications Capacity BCI Group Size Minutes Performance 5 Hr Rate AH 20 Hr Rate AH Dimensions inches (mm) Weight lbs. (kg) Voltage Type Cranking L W H 30H 30XHS 225 57 665 820 105 130 12 13 15/16 (355) 6 3/4 (171) 9 3/8 (238) 66 (30) N/A 5SHP 275 78 400 490 135 165 12 13 5/8 (346) 6 3/4 (171) 11 3/8 (289) 86 (39) N/A J150 290 70 - - 125 150 12 13 13/16 (351) 7 (178) 10 7/8 (276) 84 (38) @25 @75 CCA CA Amps Amps @0∞F @32∞F J150 Features MasterVent vent caps make watering easy Embedded AP-stud terminal Easy-to-read top reduces the chance...
