STOWAWAY CATALOG
9Pages

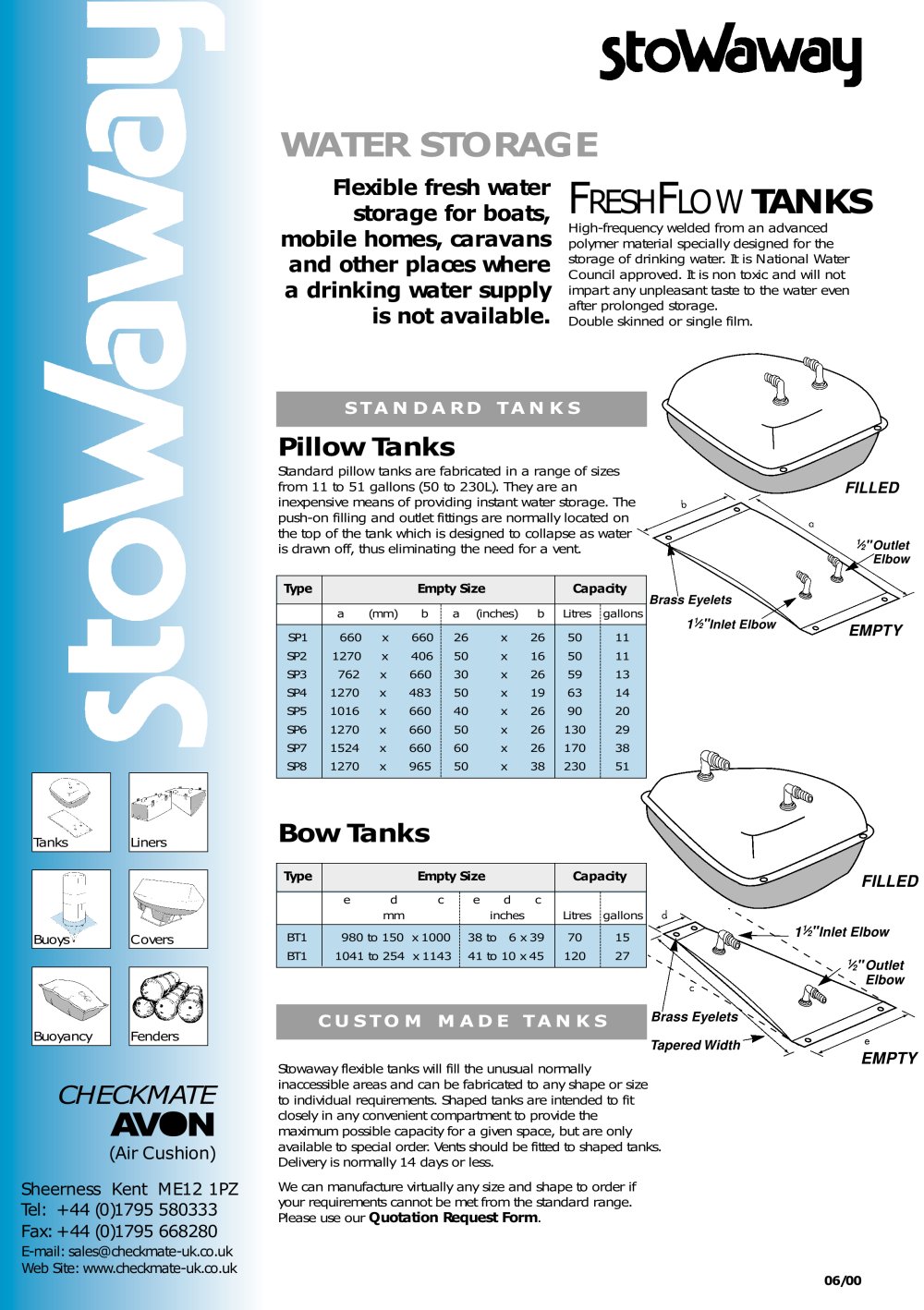

SPACE LINER Flexible Water Tanks for Enclosed Compartments only WATER STORAGE Flexible fresh water storage for boats, mobile homes, caravans and other places where a drinking water supply is not available. FRESHFLOW TANKS 5 - 500 gallons capacity Flexible Polyurethane tanks H.F. Welded seams High-frequency welded from an advanced polymer material specially designed for the storage of drinking water. It is National Water Council approved. It is non toxic and will not impart any unpleasant taste to the water even after prolonged storage. Double skinned or single film. STANDARD TANKS Pillow Tanks Standard pillow tanks are fabricated in a range of sizes from 11 to 51 gallons (50 to 230L). They are an inexpensive means of providing instant water storage. The push-on filling and outlet fittings are normally located on the top of the tank which is designed to collapse as water is drawn off, thus eliminating the need for a vent. Type Empty Size a SP1 SP2 SP3 SP4 SP5 SP6 SP7 SP8 660 1270 762 1270 1016 1270 1524 1270 (mm) b x x x x x x x x a 660 406 660 483 660 660 660 965 Capacity (inches) 26 50 30 50 40 50 60 50 x x x x x x x x b 26 16 26 19 26 26 26 38 FILLED 1 Elbow Brass Eyelets Litres gallons 50 50 59 63 90 130 170 230 G MAXIMISE CAPACITY of compartment G RETROFIT INTO EXISTING SPACE cures leaks or “tank taste” G FULLY CERTIFIED for use with “potable” water G COPES WITH INEXACT SIZE tank will take up the shape of the compartment G SIMPLER, LOWER COST OPTION easier and cheaper than trying to replace existing tanks " Outlet 2 1 1 2"Inlet Elbow 11 11 13 14 20 29 38 51 EMPTY The STOWAWAY SPACE-LINER can be inserted, when empty, into existing, enclosed compartments. Tanks Liners Bow Tanks Type Empty Size e Buoys Covers BT1 BT1 Tanks d mm c 980 to 150 x 1000 1041 to 254 x 1143 e Capacity d c inches 38 to 6 x 39 41 to 10 x 45 Liners FILLED Although “Custom Built” to fit the compartment, the flexibility of the tank material will allow it to take up the exact shape of its surroundings within a margin of 5%. Litres gallons 70 120 1 1 2"Inlet Elbow 15 27 1 Buoys Covers When contained, the tank is massively strong and our materials are fully tested to ensure an extremely long life. " Outlet 2 Elbow Buoyancy Fenders CHECKMATE A ON V (Air Cushion) Sheerness Kent ME12 1PZ Tel: +44 (0)1795 580333 Fax: +44 (0)1795 668280 E-mail: sales@checkmate-uk.co.uk Web Site: www.checkmate-uk.co.uk CUSTOM MADE TANKS Providing the support generated by the “containing” shape is appropriate there is almost no limit to the pressure that Space-liner tanks can withstand. Brass Eyelets Tapered Width Stowaway flexible tanks will fill the unusual normally inaccessible areas and can be fabricated to any shape or size to individual requirements. Shaped tanks are intended to fit closely in any convenient compartment to provide the maximum possible capacity for a given space, but are only available to special order. Vents should be fitted to shaped tanks. Delivery is normally 14 days or less. It uses the rigidity of the surrounding structure to support the walls of the tank and to stop them “bulging”. Buoyancy Fenders EMPTY CHECKMATE A ON V Within reason, any shape can be produced and Air Cushion, with their many years of experience in building products such as hovercraft skirts and commercial ship’s fenders, can supply large trade orders or one off private customers within a fast “turn round” period. For “special” installations, talk to our technical department, who will be pleased to advise on all applications of Flexible Tanks. (Air Cushion) We can manufacture virtually any size and shape to order if your requirements cannot be met from the standard range. Please use our Quotation Request Form. Sheerness Kent ME12 1PZ Tel: +44 (0)1795 580333 Fax: +44 (0)1795 668280 06/00 E-mail: sales@checkmate-uk.co.uk Web Site: www.checkmate-uk.co.uk Checkmate UK Ltd. also design and manufacture: Pillow Tanks - Bow Tanks - Effluent Tanks - Buoyancy Tanks - Racing & Marker Buoys Hovercraft Skirts and Water Skate Heavy Load Moving Systems. 06/00

QUOTATION REQUEST Part No. FITTINGS Part No. 086 Description Y fitting Hose barb on all ends. Acetal. 080 Description Skin fitting Straight with hose barb & nut 108 010 016 044 PVC hose Natural food grade. The highest quality PVC hose available. Approved by U.S.F.D.A. and B.P .F. (Not illustrated). Inside dia. 90° Elbow Female BSP thread both ends. Tailpiece hose connector Male BSP thread one end. Hose barb other end. Straight connector Female BSP thread both ends. 054 Reducer 11/2” BSP Female to 1” BSP Female. Liners 074 056 026 Buoyancy The company reserves the right to change any of the...

SPACE LINER Flexible Water Tanks for Enclosed Compartments only WATER STORAGE Flexible fresh water storage for boats, mobile homes, caravans and other places where a drinking water supply is not available. FRESHFLOW TANKS 5 - 500 gallons capacity Flexible Polyurethane tanks H.F. Welded seams High-frequency welded from an advanced polymer material specially designed for the storage of drinking water. It is National Water Council approved. It is non toxic and will not impart any unpleasant taste to the water even after prolonged storage. Double skinned or single film. STANDARD TANKS Pillow...

DIESEL FUEL STORAGE FUELFLEX ‘D’ FuelFlex ’D’ tanks are made to your specification in pillow format only. These robust, high quality tanks have been specifically developed for diesel fuel storage. They are manufactured in pillow form from nitrile rubber/tedlar coated nylon fabric, thus eliminating fuel odour. FLEXIBLE EFFLUENT STORAGE TANKS All fuel tanks must be vented to prevent the build up of pressure due to fuel vapour. Please use our Quotation Request Form. Simple Installation FuelFlex ‘D’ tanks are not suitable for petrol. FOR INLAND WATERWAYS Type Empty Size a DP1 DP2 DP3 700 700...
