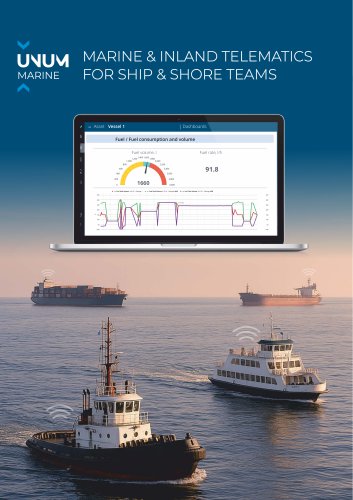

MARINE & INLAND TELEMATICS FOR SHIP & SHORE TEAMS Fuel / Fuel consumption and volume Fuel volume, l 1,200

WHAT IS UNUM MARINE? UNUM MARINE IS A HARDWARE & SOFTWARE SOLUTION FOR REMOTE MONITORING OF VESSEL OPERATIONS Fuel Efficiency & Sustainability ь Fuel usage control across engines, generators, boilers. ь Verified and traceable fuel bunkering operations. ь Reliable protection against fuel theft and misuse. ь Accurate CO₂ calculation based on real fuel data. Operational Reliability ь Early detection of engine issues and abnormal operation. ь Continuous monitoring of key operational parameters. ь Real-time alerts on deviations or system faults ь Continuous GPS vessel tracking in real time. Technical...

MONITORING FEATURES FUEL MONITORING Dashboards Fuel Each consumer monitored – engines, generators, boilers. Fuel / Fuel consumption ь Instant flow rate and total fuel consumption. ь Total fuel used in “Idle” and “Optimal” modes. ь Fuel temperature ь Fuel level in tanks. ь Remaining on board fuel oil/diesel. ENGINE PERFORMANCE MONITORING Dashboards Engine High-resolution data for diagnostics and analytics. ь Engine hours (running time). Engine Fuel Rate, L/h ь Operating time in “Idle” and “Optimal” modes. Engine Hours Of Operation, h Optimal Hours Of Operation, h ь Coolant temperature, engine oil...

ONBOARD EQUIPMENTDIRECT MEASUREMENT OF FUEL CONSUMPTION - FLOW METERS DFM fuel flow meters DFM Marine fuel flow meters LC Corio fuel counters Product line CAN J1939, RS-485 Modbus, pulse, wireless (Bluetooth) Fuel to be measured Diesel fuel Diesel fuel, heavy fuel oil Measurement principle Ring-type chamber Ring-type chamber Oval gear chamber Coriolis effect „ . . . ZAMAK alloy Duralumin Aluminum/silicon/ . . Body material Stainless steel or brass or brass copper alloy

ONBOARD EQUIPMENT FUEL VOLUME AND ENGINE MONITORING DUT-E fuel level sensors MasterCAN converters ь Exact fuel level and volume ь Conversion of analog signals to measurement. digital and vice versa. ь Tank fill-up and draining detection. ь Conversion of Bluetooth to ь Fuel quality change detection. NMEA2000. CANUp telematics gateway ь Gathering data from smart sensors, and CAN bus. ь Edge-computing – data analysis, sending reports and alarms. EQUIPMENT FEATURES All units from one supplier Plug-n-play operation, compatible with various displays and terminals DFM flow meter, research vessel Precise...

TYPICAL ONBOARD EQUIPMENT SETUPS TECHNICAL AND AUXILIARY VESSELS S Fuel consumption of engines. S Operating time of fuel consumers. S Fuel level and volume in tanks. S Location, route, traveled distance. S Fuel refueling/draining from tanks. S On/off status of engine/generator. DUT-E fuel level sensors TRANSPORT INLAND VESSELS CANUp telematics gateway TRANSPORT SEA VESSELS S Integration with NMEA 2000 vessel bus. S Fuel consumption of each consumer. S Operating of fuel consumers. S rpm, temperature of technical fluids. S Bunkering - volume of fuel. S Fuel consumption of each consumer. S Operating...

CUSTOMER CASES FUEL STANDARDS VALIDATION FOR RESEARCH VESSELS Task. Accurate measurement of fuel consumption and transmission of data to the telematics system. Solution. Installation of wireless DFM fuel flow meters, data transfer via Bluetooth to converters, and data transmission via NMEA 2000 to display and terminal. Result. Development of validated fuel consumption standards for vessels of this type. 30% FUEL-COST REDUCTION ON DRY-CARGO VESSELS Task. Direct measurement of fuel consumption by each consumer with data transmission to a telematics service. Solution. Installation of DFM fuel flow...

DEVELOPED BY TECHNOTON OUR MISSION We develop smart telematics technologies to provide owners of mobile and stationary machinery with detailed, accurate insights into their equipment's performance, highlighting opportunities to optimize operating costs. ✓ Since 2000 in telematics and fuel monitoring markets ✓ 600+ integration partners in 140+ countries ✓ 20+ official dealers and distributors ✓ 3 production facilities: precise mechanics, electronics, piloting ✓ R&D: team of 25 HW & SW developers and designers ✓ Quality assurance system is certified in ISO 9001 ✓ Comprehensive technical support...
