HARBOUR TUGS Tug TSHT 3611 Tug TSHT 5422 PORT VESSEL NEWBUILDING

SHIPBUILDING AND NAVAL CONVERSION HARBOUR TUGS TUGS TSHT 3611 Y 5422 Port support vessels SYM Naval’s TSHT 3611 and 5422 harbour tugs are vessels fully adapted to the operational needs of shipowners and the requirements of Harbour tugs TSHT 3611 y 5422 international port authorities. With a length of 16 and 18 meters and a bollard pull of up to 11 and 22 tons respectively, the TSHT series tugs are capable of handling the most demanding port tasks. Both models are equipped with Doosan engines that offer a total power of 960 and 1,600 horsepower, while their top speeds reach 11 knots. The compact...

SHIPBUILDING AND NAVAL CONVERSION HARBOUR TUGS HARBOUR TUGS General scheme A compact and powerful design Harbour tugs with high maneuverability and stability AUXILIARY GENERATORS JOHN DEERE FRESH WATER TANKS BILGE PUMP WASTE WATER DISCHARGE PUMP FIRE PUMP FEIT AT 6-1 - ELECTRIC SELF-PRIMING Port Vessel Newbuilding The TSHT 3611 harbour tug is the most compact model ever built by SYM Naval. It broadly meets the demands of the tasks of supporting the maneuverability of medium ships and emergency or relief tasks. More powerful and with greater capacities for fuel and fresh water tanks, the TSHT...

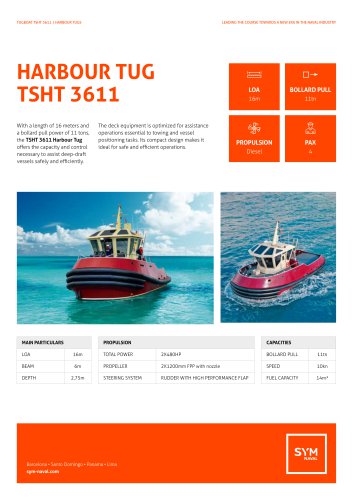

SHIPBUILDING AND NAVAL CONVERSION HARBOUR TUGS TSHT 3611 TUG General layout The TSHT 3611 harbour tug is a compact design support vessel measuring 16 meters in length and 6 meters in beam. It has a bollard pull force of 11 tons, two 480 hp engines and two 1,200 mm diameter propellers in the nozzle. COMPACT. Designed to withstand the most demanding port support tasks. DIMENSIONS. The TSHT 3611 model is 16 m long and 6 m wide. LOADING CAPACITY. Up to14 m2 of fuel and 1.32 m3 of waste water. Port Vessel Newbuilding

SHIPBUILDING AND NAVAL CONVERSION HARBOUR TUGS TSHT 5422 TUG General layout The TSHT 5422 model, with its 18 meters in length, 8 meters in beam and its 2 x 800 hp engines, is the ideal port vessel to offer support to the maneuvering of large ships thanks to its bollard pull of up to 22 tons. STURDY. 22-ton bollard pull. DIMENSIONS. The TSHT 5422 model is 18 m long and 8 m wide. LOADING CAPACITY. Up to 18 m³ of fuel and 1.32 m³ of waste water. Port Vessel Newbuilding

SHIPBUILDING AND NAVAL CONVERSION HARBOUR TUGS HARBOUR TUGS Port support vessels Technical specifications At the lowest cost thanks BOLLARD PULL OPERATIONAL CHARACTERISTICS MAIN ENGINES TOTAL POWER REDUCTION GEARBOX STEERING GEAR FRESH WATER - PORT High-quality materials SEWAGE WATER High performance flap rudder High performance flap rudder PROPULSION AND CONTROL SYSTEM COMMUNICATION AND NAVIGATION SYSTEM PLOTTER - SOUNDER ANCHOR WINCH TOWING HOOK GENERATORS POWER BILGE PUMPS FIRE PUMP WASTE WATER PUMP FRESH WATER PUMP REFRIGERATION SYSTEM FIAC SUPER SILENT 59 FIAC SUPER SILENT 59 CUSTOMIZATION....

SHIPBUILDING AND NAVAL CONVERSION HARBOUR TUGS BRIDGE. Control desk adapted to the operational needs of the crew operating the ship. INTERIOR. Equipped to work under the demands of port support tasks. ENGINE ROOM. Ample work space for the crew. COMFORT. Cabin for 4 people and kitchen/dining room. Port Vessel Newbuilding

PROFESSIONALISM, EXPERIENCE AND COMMITMENT OUR STRENGTHS, OUR VALUES SYM Naval is ISO 14001 certified, a guarantee of its clear commitment to the environment. NAVAL ENGINEERING OFFICE QUALITY CONTROL WORLDWIDE ASSISTANCE Shipbuilding in steel and aluminum. We Sailing, in port and in dry dock. managing the demanding requirements of design and build custom vessels. IACS Maintenance and repair service for vessels in shipowners with the highest quality from the classified vessels. dry dock in the Caribbean area. Worldwide A technical department capable of coverage via riding squads. CUSTOM PROJECTS...

Quality technical solutions
