SUPER MOHAWK Inspection/Light Work Rov System Data Sheet

Product catalog summary

Overview: The Super Mohawk ROV system is a versatile remotely operated vehicle designed for a variety of tasks typically performed by work-class vehicles. It features a robust open-frame design, ample space for equipment, and a high payload capacity, making it suitable for observation, survey, pipelay support, light to medium work, and non-destructive testing (NDT) inspections. The system is rated for depths of 2000 meters (6560 feet) with options for deeper operations.

Key Specifications:

Depth Rating: 2000 meters (6560 feet) standard, with deeper options available.
Payload Capacity: 60 kg (132 lb).
Dimensions: Height - 850 mm, Length - 1400 mm, Width - 900 mm.
Mass in Air: 290 kg (639 lb).
Thrust: Forward - 110 kgf, Reverse - 77 kgf, Lateral - 73 kgf, Vertical - 45 kgf.
Max Velocity: Forward - 1.5 m/s, Reverse - 1.0 m/s, Lateral - 0.75 m/s, Vertical - 0.75 m/s.
Power Requirements: 440 Vac 3 ph 50/60 Hz 15 kVA.

Surface Equipment: The surface equipment includes a Surface Control Unit (SCU), Transformer Power Unit (TPU), and Hand Control Unit (HCU). These components are compact and designed for operation in small control spaces, with options for installation in an ISO control cabin or a 19-inch rack mount flight case.

Tether and Umbilical: The system uses a 25.5 mm diameter tether and a common umbilical suitable for all open-frame vehicles, enhancing spares and interchangeability.

Sensors and Equipment: The ROV supports various sensors and equipment, including cameras, sonar, oceanographic sensors, manipulators, tool skids, and torque tools.

Tether Management System (TMS): Available in three sizes, the TMS is known for its ruggedness and reliability, with a capacity of 250 meters of tether.

Launch and Recovery Systems: Various systems are available to meet different depth requirements and formats, such as A-frame or jib crane.

Frame and Buoyancy: The frame is made of high-impact resistant polypropylene with an aluminum alloy central load frame. Buoyancy is provided by a single module with closed-cell microspheres.

Thrusters: The ROV is propelled by six Sub-Atlantic CTE02 thrusters, providing high thrust and speed in a vectored configuration.

Electronic Pod and Telemetry: The system includes a fiber-optic telemetry system with multiple video and data channels, housed in aluminum alloy pods rated to 2000 meters.

Lighting and Camera Facilities: Equipped with three 250-Watt halogen lamps and a pan & tilt unit for cameras, providing three simultaneous video channels.

Note: Specifications are illustrative for marketing purposes and may vary due to product improvements. Specific interface and performance details should be confirmed at the time of order placement.

Catalog excerpts

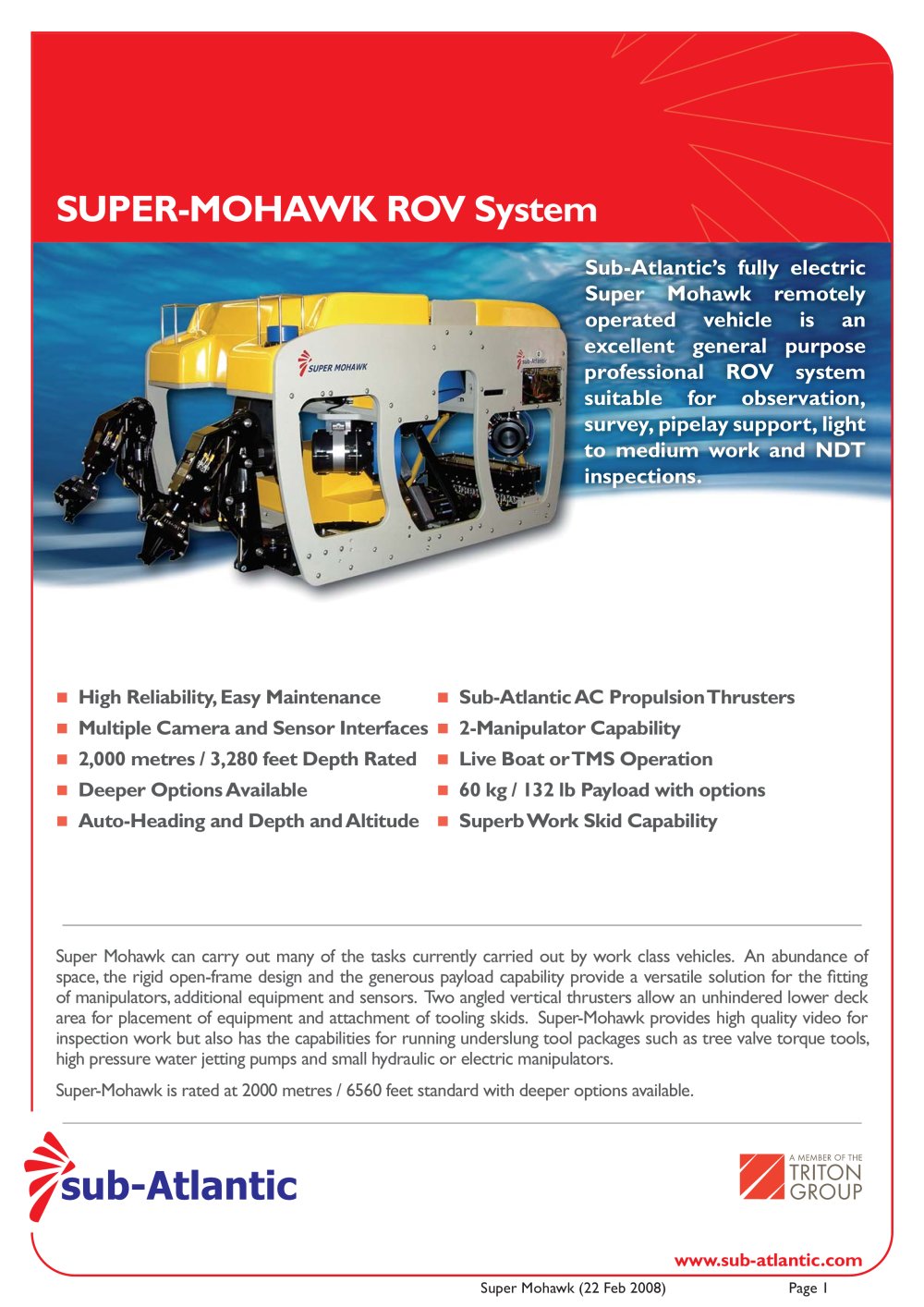

SUPER MOHAWK Inspection/Light Work Rov System Data Sheet-1

Sub-Atlantic's fully electric Super Mohawk remotely excellent general purpose survey, pipelay support, light High Reliability, Easy Maintenance Multiple Camera and Sensor Interfaces 2,000 metres / 3,280 feet Depth Rated Deeper Options Available Auto-Heading and Depth and Altitude Sub-Atlantic AC Propulsion Thrusters Live Boat orTMS Operation 60 kg / 132 lb Payload with options Superb Work Skid Capability Super Mohawk can carry out many of the tasks currently carried out by work class vehicles. An abundance of space, the rigid open-frame design and the generous payload capability provide a versatile solution for the fitting of manipulators, additional equipment and sensors. Two angled vertical thrusters allow an unhindered lower deck area for placement of equipment and attachment of tooling skids. Super-Mohawk provides high quality video for inspection work but also has the capabilities for running underslung tool packages such as tree valve torque tools, high pressure water jetting pumps and small hydraulic or electric manipulators. Super-Mohawk is rated at 2000 metres / 6560 feet standard with deeper options available. Super Mohawk (22 Feb 2008) Page I

Open the catalog to page 1

SUPER MOHAWK Inspection/Light Work Rov System Data Sheet-2

Live Boat or TMS Operation Systems (LARS) Compact Control Surfaceequipmentconsists three basicunits: ■ Surface Control Unit (SCU) ■ Transformer Power Unit (TPU) incorporating transformer in a floor mounted cabinet ■ Hand Control Unit (HCU) which is The components are generally installed in a ISO control cabin supplied by customer or compact for operation in small control spaces. The three units are linked by interconnecting cables with in a 19 in. rack mount flight case complete with two 9" colour monitors. An additional spare slot can accommodate a video recorder. The rear case panel fixes to...

Open the catalog to page 2

SUPER MOHAWK Inspection/Light Work Rov System Data Sheet-3

Reliable Thrusters Atlantic CTE02 thrusters incorporating AC electric motor arranged in the following configuration producing high all round thrust & speed ■ 2 X CTE-02 vertical thrusters vectored outward to clear the vehicle lower deck leaving it free of cut-outs in way of tools leadand moulded plugforattachmentto Sub-Atlantic's CTE-02 reliable brushlessACthruster develops 45 kgf ( / 00 Ibf) of static thrust. The design of the housing allows the statorto be easily replaced ■ Fibre-Optictelemetry system providing 3 can be doubled using two FOtelemetry channel. Uplink/Downlink includes 16 a na...

Open the catalog to page 3

SUPER MOHAWK Inspection/Light Work Rov System Data Sheet-4

The specification details are illustrative for marketing purposes only. Actual equipment may be different as a result of product improvement or other reasons. Specific interface and performance information should be reconfirmed at time of order placement. Sub-Atlantic Ltd. Woodburn Road, Blackburn Business Park, Blackburn,Aberdeen. AB2I OPS. UK M Sub-Atlantic Inc. 10642 West LittleYork, Suite 100, Houston, TX 77041-4014-USA Super Mohawk (22 Feb 2008) Page 4
