Hydraulic Thrusters Data Sheet


Catalog excerpts

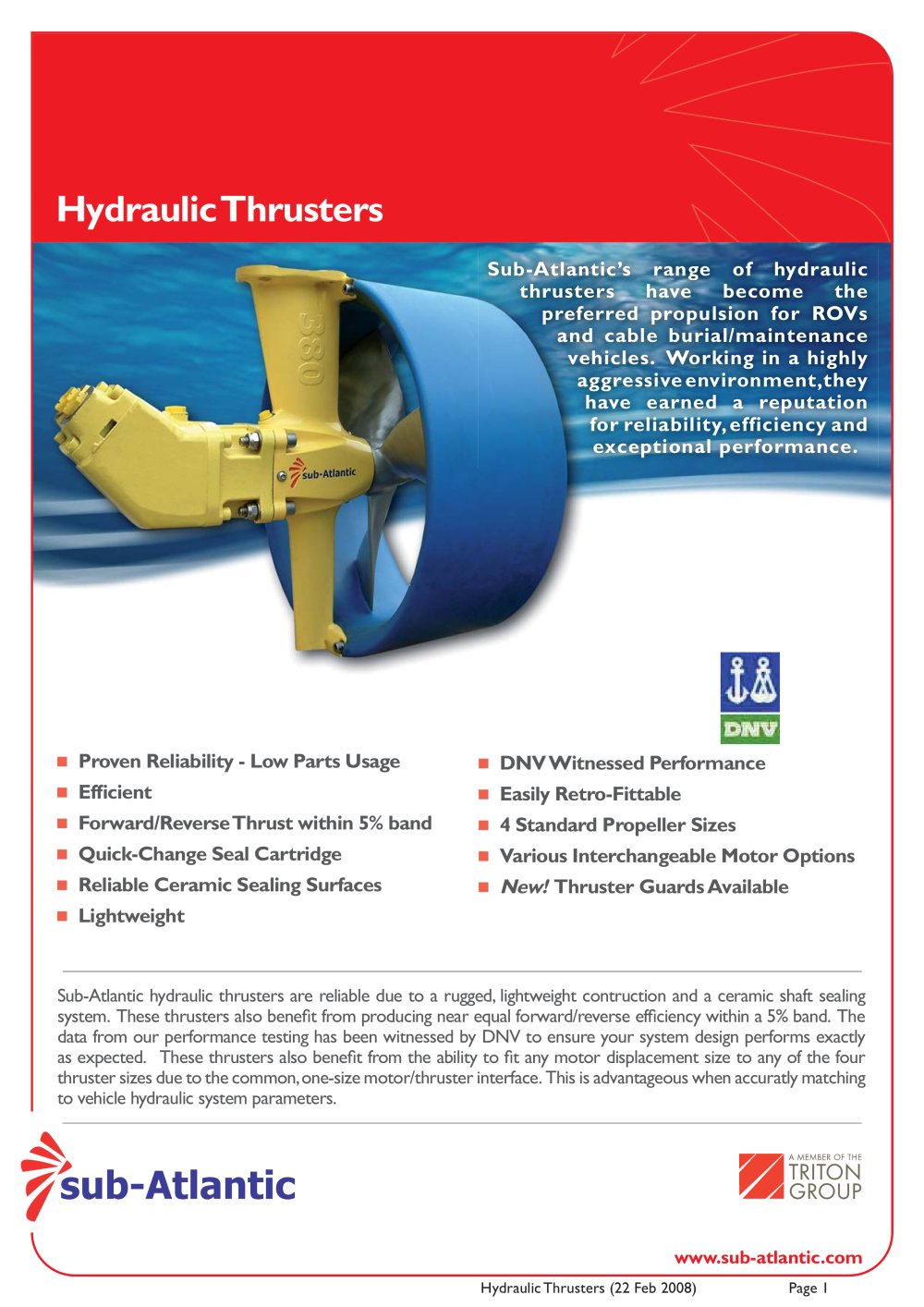

Hydraulic Thrusters Data Sheet - 1

Hydraulic Thrusters Sub-Atlantic's range of hydraulic thrusters. have become the preferred propulsion for ROVs vehicles. Working in a highly aggressive environment,they have earned a reputation exceptional performance. Proven Reliability - Low Parts Usage Forward/Reverse Thrust within 5% band Quick-Change Seal Cartridge Reliable Ceramic Sealing Surfaces DNVWitnessed Performance Easily Retro-Fittable 4 Standard Propeller Sizes Various Interchangeable Motor Options New! Thruster Guards Available Sub-Atlantic hydraulic thrusters are reliable due to a rugged, lightweight contruction and a ceramic shaft sealing system. These thrusters also benefit from producing near equal forward/reverse efficiency within a 5% band. The data from our performance testing has been witnessed by DNV to ensure your system design performs exactly as expected. These thrusters also benefit from the ability to fit any motor displacement size to any of the four thruster sizes due to the common, one-size motor/thruster interface. This is advantageous when accuratly matching to vehicle hydraulic system parameters.

Open the catalog to page 1
Hydraulic Thrusters Data Sheet - 2

Available Sizes Standard range is available in four propeller sizes, SA300, SA380, SA420 & SA500, the designation represents the diameter of the propeller in millimetres. Standard motor sizes are 20, 30, 41, 61, 103 and 119 cc. Our hydraulic motors all have identical mounting interfaces to the thruster body, no matter the motor displacement. This makes them particularly suitable for interchanging with different propeller sizes to obtain higher running efficiencies. For example, in an application where limited hydraulic power and oil ow is available but maximum thrust is required, an SA-380...

Open the catalog to page 2
Hydraulic Thrusters Data Sheet - 3

3D CAD models are available on request Innerspace Replacement Tunnel Version Standard Version The specification details are illustrative for marketing purposes only. Actual equipment may be different as a result of product improvement or other reasons. Specific interface and performance information should be reconfirmed at time of order placement. Sub-Atlantic Ltd. Woodburn Road, Blackburn Business Park, Blackburn,Aberdeen. AB2I OPS. UK Sub-Atlantic Inc. 10642 West LittleYork, Suite 100, Houston, TX 77041-4014-USA

Open the catalog to page 3
