Product catalog summary

Overview
The document provides detailed specifications and features of the Standard Horizon HX370S and HX350AS VHF/FM Marine Transceivers. These devices are designed for marine communication, offering submersible capabilities, high durability, and a range of features suitable for professional use.

Specifications

Frequency Range: 156 MHz - 163.275 MHz for Marine Band and 137 MHz - 174 MHz for LMR.
Power Output: 5 Watts with options for lower power settings.
Waterproof Rating: Submersible up to 3 feet for 30 minutes.
Battery: Includes a 1400mAh Ni-MH battery pack, providing over 18 hours of operation.
Dimensions: 2.3" x 3.7" x 1.2" with a weight of approximately 13.4 oz.

Features

LCD Display: Highly legible with automatic backlight.
SOS Strobe Light: High-intensity light visible over 1 mile.
NOAA Weather Alerts: Provides alerts for severe weather conditions.
Programmable Channels: 40 dealer-programmable LMR channels with CTCSS or DCS signaling.
Intrinsically Safe Version: HX370SAS available for hazardous locations.

Included Accessories

Rechargeable Battery Pack (FNB-83)
120 VAC Charger (NC-88B)
Charger Cradle (CD-26)
Dry Cell Battery Pack (FBA-25A)
Quick Draw Belt Clip (CLIP-14)

Optional Accessories

Noise-Canceling Speaker Microphone (CMP460)
Encryption Unit (FVP-31)
Various cables and adapters for enhanced functionality.

Durability and Warranty
The HX370S and HX350AS are built for rugged use, featuring non-corrosive cases and waterproof gasketing. They come with a 3-year waterproof warranty and a lifetime flat rate service program.

Conclusion
The Standard Horizon HX370S and HX350AS are robust, feature-rich marine transceivers suitable for professional use, offering reliable communication and safety features in harsh marine environments.

Catalog excerpts

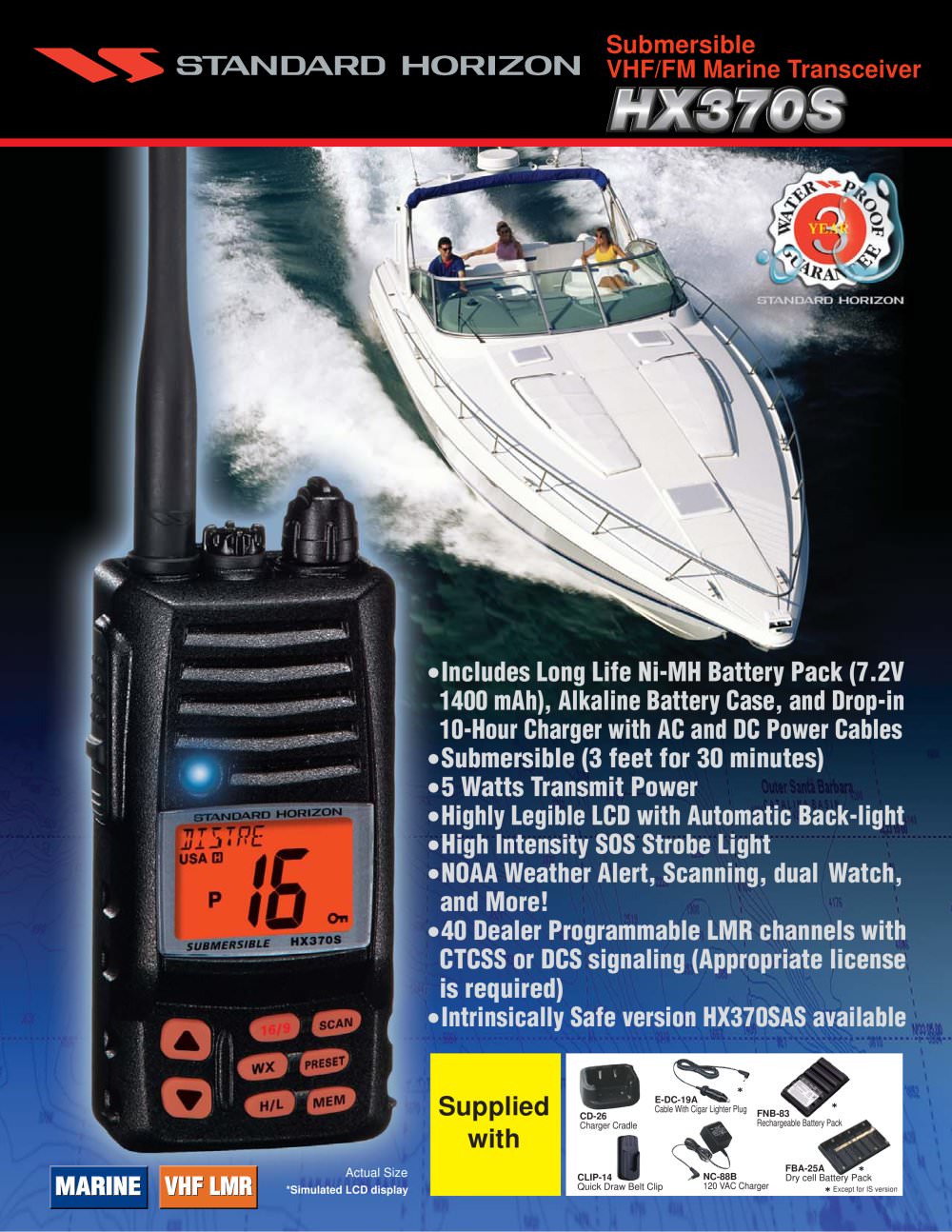

Submersible VHF/FM Marine Transceiver •Includes Long Life Ni-MH Battery Pack (7.2V 1400 mAh), Alkaline Battery Case, and Drop-in 10-Hour Charger with AC and DC Power Cables •Submersible (3 feet for 30 minutes) •5 Watts Transmit Power •Highly Legible LCD with Automatic Back-light •High Intensity SOS Strobe Light •NOAA Weather Alert, Scanning, dual Watch, and More! •40 Dealer Programmable LMR channels with CTCSS or DCS signaling (Appropriate license is required) •Intrinsically Safe version HX370SAS available Supplied with Actual Size *Simulated LCD display CD-26 Charger Cradle E-DC-19A Cable With Cigar Lighter Plug CLIP-14 Quick Draw Belt Clip FNB-83 Rechargeable Battery Pack NC-88B 120 VAC Charger FBA-25A Dry cell Battery Pack Except for IS version

Open the catalog to page 1

HX350AS Intrinsically Safe Portable Intrinsically Safe Submersible Rugged, Durable and Reliable Easy to Use All Essential Features Lifetime Flat Rate Service Program Detachable Antenna Volume Control Squelch Control External Speaker Mic Input Extra Large Display Backlight Switch Push To Talk Switch High Speed Scan Activator 10 Weather Channels plus NOAA Weather Alert Channel 9 & 16 Direct Access User Selected Pre-sets Scan Memory Switch Up/Down Channel Selector 10 Hour Rechargeable Battery Nothing takes to water like Horizon! NDA STA IZ RD HOR ON

Open the catalog to page 3

STANDARD HORIZON Intrinsically Safe Portable Standard Horizon's new HX350AS is no ordinary 5 watt portable VHF. This incredibly rugged radio is submersible! And it has all the essential operational features that any crew could ask for. Intrinsically Safe The HX350AS handheld with CNB350AS battery pack, and the optional noise-canceling waterproof speaker microphone, model CMP350 meet the requirements of ANS/UL 913-88 for Division 1, Class 1, Groups C & D, Class II, Groups E, F & G, and Class III hazardous locations. Rugged Durable Construction Building a submersible radio for the professional...

Open the catalog to page 4
