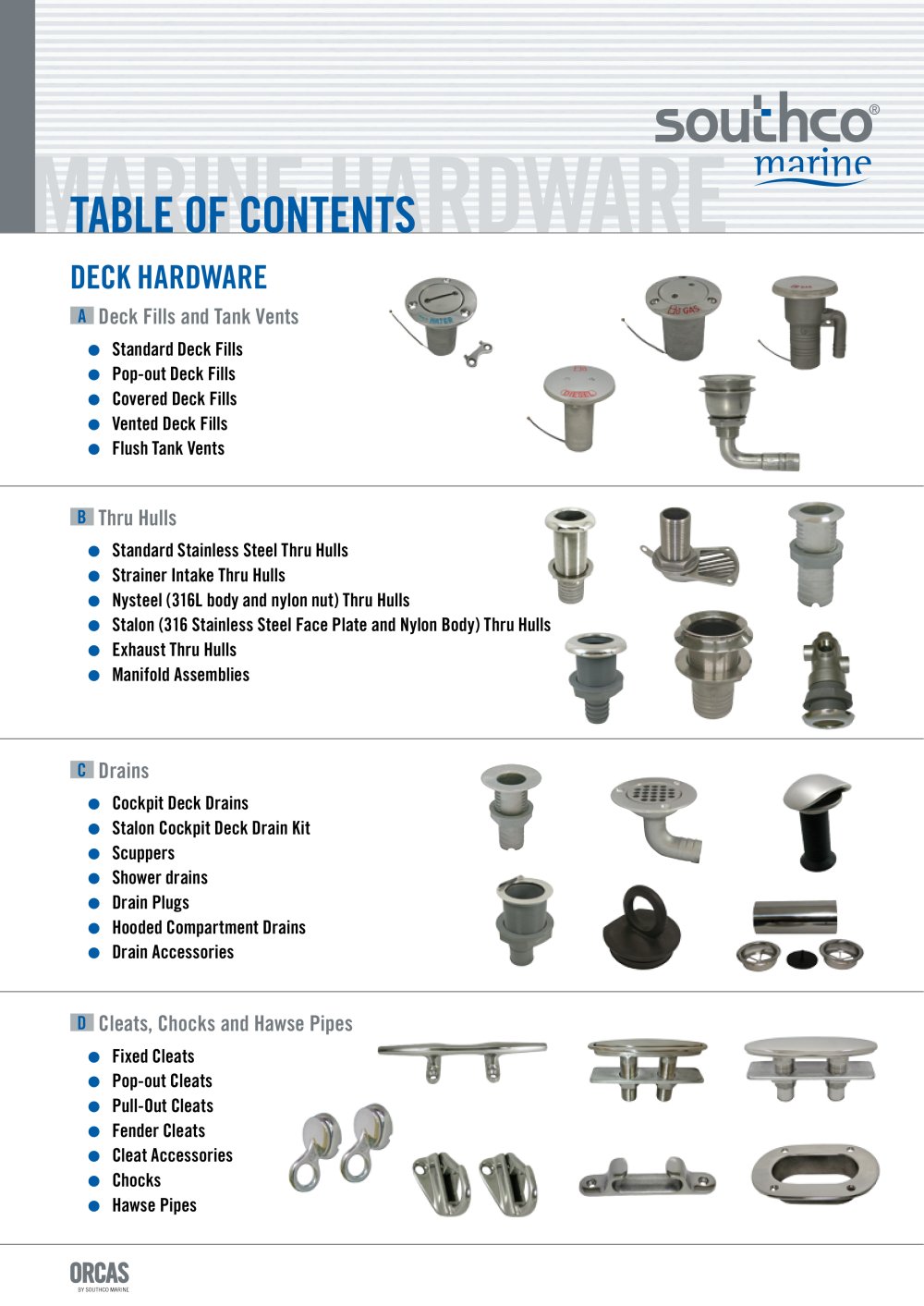

DECK HARDWARE A Deck Fills and Tank Vents \^ • Standard Deck Fills • Pop-out Deck Fills • Covered Deck Fills Vented Deck Fills • Flush Tank Vents ! Thru Hulls • Standard Stainless Steel Thru Hulls • Strainer Intake Thru Hulls • Nysteel (316L body and nylon nut) Thru Hulls • Stalon (316 Stainless Steel Face Plate and Nylon Body) Thru Hulls • Exhaust Thru Hulls • Manifold Assemblies • Cockpit Deck Drains • Stalon Cockpit Deck Drain Kit • Shower drains • Drain Plugs • Hooded Compartment Drains • Drain Accessories ) Cleats, Chocks and Hawse Pipes • Fixed Cleats • Pop-out Cleats • Pull-Out Cleats • Fender Cleats • Cleat Accessories • Hawse Pipes BYSOUTHCO MARINE

• Stern Eyes • Strap Eyes • Stamped Hinges • Cast Hinges • Covered Hinges • Folding Lights • Removable Mast Head Lights • Cable Outlets • Reading Lights BYSOJTHCO MARINE

Other Deck Hardware Fittings • Ski-tow Rings and Posts • Magnetic Flag Pole Sets • Water Inlets and Outlets • Cockpit and Cabin Accessories ACCESS HARDWARE • Slam Latches • Compression Latches • Adjustable Lever Latches • Slide Latches Cabin Doors and Cabinet Latches • Cabin Door Latches • Magnetic Cabin Door Latches • Drawer and Cabinet Latches • Magnetic Drawer and Cabinet Latches BYSOUTHCO MARINE

Entry Door Locks • Sliding Entry Door Locks for Extrusion Doors • Sliding Entry Door Locks for Companion Way Doors • Wash Board Locks Cabin Door Hardware • Magnetic Door Holders Door Holders • Window and Door Stops Other Access Hardware • Hatch Pulls • Hatch Stays • Draw Latches • Swivel Hasps • Access Hardware Accessories • Part number cross reference* ' This catalogue introduces a new part number system for the ORCAS products. Please refer to section L for a detailed cross section reference list. • Please add any new literature here BYSOJTHCO MARINE

DECK FILLS & TANK VENTS Standard Deck Fills • 316 stainless steel construction • Flush profile • Color coded graphics Pop-out Deck Fills • 316 stainless steel construction • Flush profile • Color coded graphics • Available with security key locking Covered Deck Fills • 316 stainless steel construction • Cover conceals mounting hardware • Color coded graphics Vented Deck Fills • Available in 316 stainless steel or nylon body with stainless steel cap combination • Innovative design requires a single mounting hole • No need for external vent Flush Tank Vents • Low profile tank vent with an...

• Full cover cap with finger grip edge and • Meets current ISO requirements STANDARD DECK FILLS • Features a spring loaded stainless steel • Color-coded international symbol with engraved lettering • 1-7/8" installation hole required for the • 2-1/8" installation hole required for the

STANDARD 30° ANGLE DECK FILL • Features a spring loaded stainless steel • Color-coded International symbol with engraved lettering • 1-7/8" Installation hole required for the • 2-1/8" installation hole required for the POP-OUT DECK FILL • Pop-out center on cap for easy keyless • Available with keyed or standard cap • Features a spring loaded stainless steel • Color-coded International symbol with engraved lettering • 1-7/8" installation hole required for the • 2-1/8" Installation hole required for the For keyed cap option add -L after the Part No. BYSOUTHCO MARINE

STUDDED POP-OUT FILL • Deluxe appearance with hidden fasteners • Extra deep fill cavity • Pop-out center on cap for easy keyless • Features a spring loaded stainless steel • Color-coded international symbol with engraved lettering • 1 7/8" installation hole required for the • 2 1/8" installation hole required for the • For keyed cap option, add the letter For keyed cap option add the letter -L after the Part No. POP-OUT 30° ANGLE DECK FILL • Pop-out center on cap for easy keyless • Available with keyed or standard cap • Features a spring loaded stainless steel • Color-coded international...

FULL COVER DECK FILL • Full cover cap with finger grip edge and • Features a spring loaded stainless steel VENTED DECK FILL • All stainless steel construction. The easy grip cap is smaller and easy to adjust orientation after final • Comes with our spring loaded S.S. cap security cable. Waste and oil are • 1-7/8" single installation hole is required, 5/8" vented barb. BYSOUTHCO MARINE

30° VENTED DECK FILL • All stainless steel construction. Features an easy grip cap with simple adjustment of orientation after final installation. • Comes with our spring loaded S.S. cap security cable. • 1-7/8" single installation hole is required, 5/8" vented barb. 30 STAL0N VENTED DECK FILL • Features a nylon body and a 316 • Unique design allows for easy installation in a single hole • Features a spring loaded stainless steel • Waste and oil versions come without a • Suitable for aluminum decks where nylon body prevents electrolysis

STALON VENTED DECK • Features a nylon body and a 316 • Straight angle design • Features a spring loaded stainless steel retention cable • Suitable for aluminum decks where nylon body prevents electrolysis STALON VENTED DECK FILL • Features a nylon body and a 316 • Straight angle design • Unique design allows for a 1-7/8" single installation hole • Features a spring loaded stainless steel retention cable • Waste and oil versions come without a BYSOUTHCO MARINE

WASTE PUMP OUT ADAPTOR • Fits the European standard pump out • Suitable for all Southco waste deck fills 90° FLUSH TANK VENT • Unique design allows recessed flush mounting in the hull or cabin sides, protecting the vent body • Modern attractive appearance and high airflow capacity • Barb up installation to prevent tank • Deep or shallow cup provides for installation in material thickness up to
