Promaguard

Product catalog summary

Characteristics

High temperature resistant
Very lightweight and flexible
Non-combustible with excellent thermal properties
Easy to handle and fiber-free
3 to 4 times thinner than conventional systems

Approvals

CERTIFIED MED & USCG Non-Combustible
MED A60 class Deck & Bulkhead for Aluminum and Steel Structures
MCA APPROVED for laminated GRP and sandwich structures as Equivalent B15 (30min FP) for Short Range Yachts
RINA Chartering approved on wood bulkheads and Alu-honeycomb panels

Product Description

PROMAGUARD from Soundown is a new concept in passive fire protection using microporous insulation technology. It features a unique engineered mineral matrix, offering significant weight savings and making it ideal for high-speed vessels. It meets SOLAS, IMO & MCA standards for passive fire protection.

Performance

PROMAGUARD provides the lowest thermal conductivity compared to conventional materials. A 10mm panel offers the same insulation as approximately 50mm of fibrous materials, with a weight of 2.4Kg/m² for a 10mm-thick panel.

Technical Data

Sizes: Length 1200mm, Width 600mm, Thickness 6, 8, 10, 12mm
Tolerances: Thickness +1mm, Length/Width +3mm
Classification Temperature: 1000°C
Nominal density (core): 650 Kg/m³
Glass cloth weight: 240 +/-10% g/m²
Linear Shrinkage: <2% at 900°C
Specific heat: 1.05 Kj/Kg*K
Thermal conductivity: 0.022 - 0.045 W/m*K depending on temperature
Typical composition (core): SiC, SiO₂, CaO
Organic content: 2 - 5%

Catalog excerpts

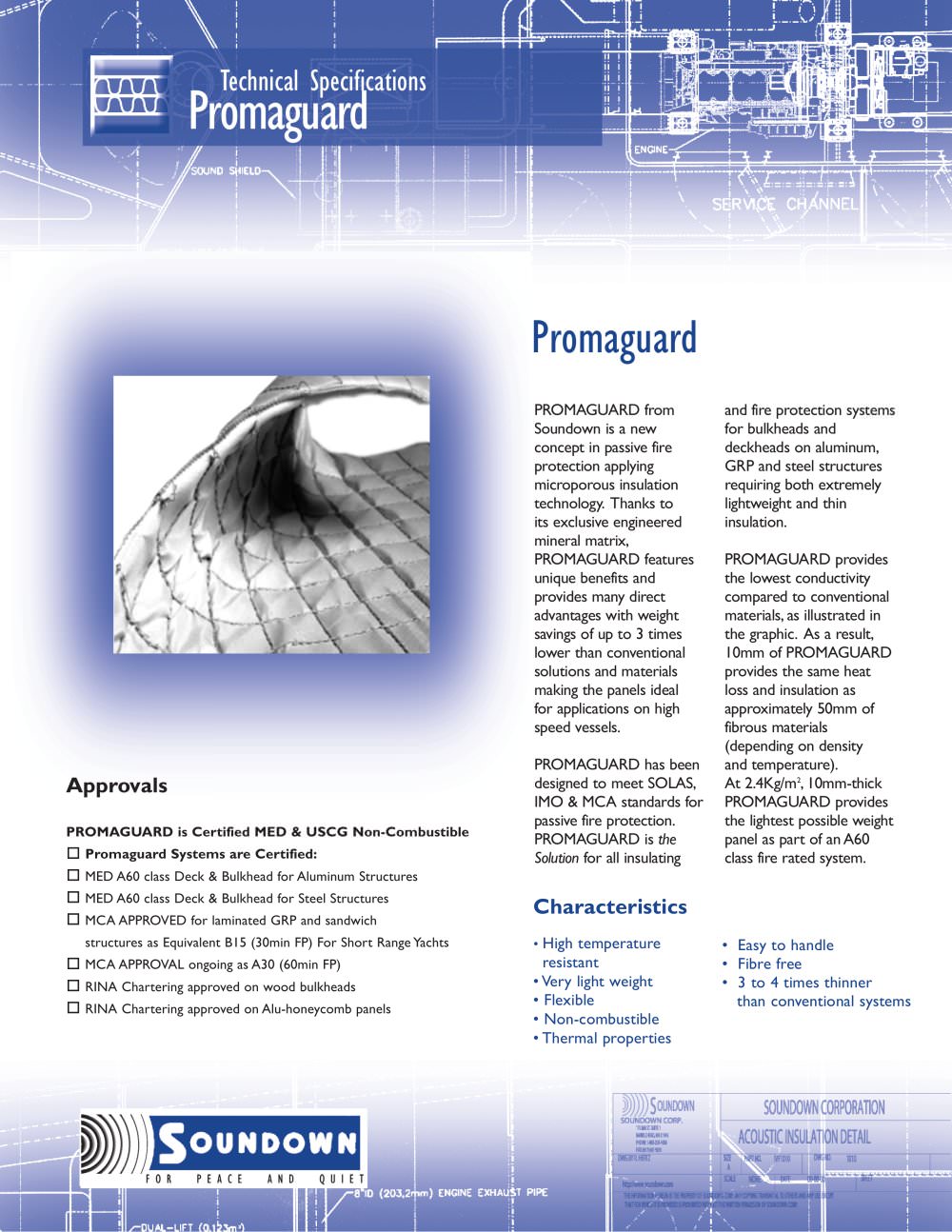

PROMAGUARD is Certified MED & USCG Non-Combustible □ Promaguard Systems are Certified: □ MED A60 class Deck & Bulkhead for Aluminum Structures □ MED A60 class Deck & Bulkhead for Steel Structures □ MCA APPROVED for laminated GRP and sandwich structures as Equivalent BI5 (30min FP) For Short Range Yachts D RINA Chartering approved on wood bulkheads D RINA Chartering approved on Alu-honeycomb panels PROMAGUARD from concept in passive fire protection applying microporous insulation mineral matrix, PROMAGUARD features provides many direct advantages with weight lower than conventional making the panels ideal speed vessels. designed to meet SOLAS, passive fire protection. • High temperature •Very light weight •Thermal properties and fire protection systems requiring both extremely PROMAGUARD provides provides the same heat fibrous materials PROMAGUARD provides the lightest possible weight class fire rated system. Fibre free than conventional systems SOUNDOWN CORPORATION ACOUSTIC INSULATION DEAIL

Open the catalog to page 1

BIOSOLUBLE CERAMIC FIBRE CALCIUM BILICATE MINERAL WOOL Length / Width An extensive fire testing program has been successfully carried out in our laboratory on the following structures using PROMAGUARD: • Deckhead and bulkhead Steel A60 • Deckhead and bulkhead Aluminum A30 - A60

Open the catalog to page 2
