Overview
SOUNDOWN Acoustic Carpet Underlayment is designed to reduce noise in boats, particularly in living areas where flooring is a significant noise source. It is easy to install and can be used at any stage of the insulation process.

Specifications
The underlayment consists of a foam layer and an acoustic vinyl barrier. The foam decouples the mass layer from floor vibrations, effectively blocking noise from structureborne or airborne sources. It is available in various configurations with different weights and thicknesses:

2 lb/ft², 1/2” and 1/4” thickness
1 lb/ft², 1/2” and 1/4” thickness
0.5 lb/ft², 1/2” and 1/4” thickness

Physical Properties

Thickness: 1/4” to 3/4”
Weight: 0.55 lbs to 2.2 lbs per ft²
Flammability: Specific data available upon request
Specific Gravity (Barrier): 1.80 (ASTM D 798)
Hardness (Barrier): Shore A 90 Nominal (ASTM D 2240)
Stiffness (Barrier): 19.60 MPA (ASTM 749)
Tensile Strength (Barrier): 407 PSI (ASTM D 412)
Elongation (Barrier): 120% (ASTM D 412)
Tear Strength (Barrier): 77 lbs/1” (ASTM D 624)
Temperature Range: -40 to 255 degrees Fahrenheit

Performance
The underlayment enhances noise reduction, especially when used as part of a full insulation package. It is effective in sealing areas prone to leakage, such as hatches, and provides additional noise attenuation when combined with engine room insulation.

Contact Information
SOUNDOWN
16 Broadway, Salem, MA 01970
Phone: 1-978-745-7000
Website: www.SOUNDOWN.com
3005 S.W. 2nd Ave. #102, Fort Lauderdale, FL 33315
Phone: 1-954-761-9188
Email: [email protected]

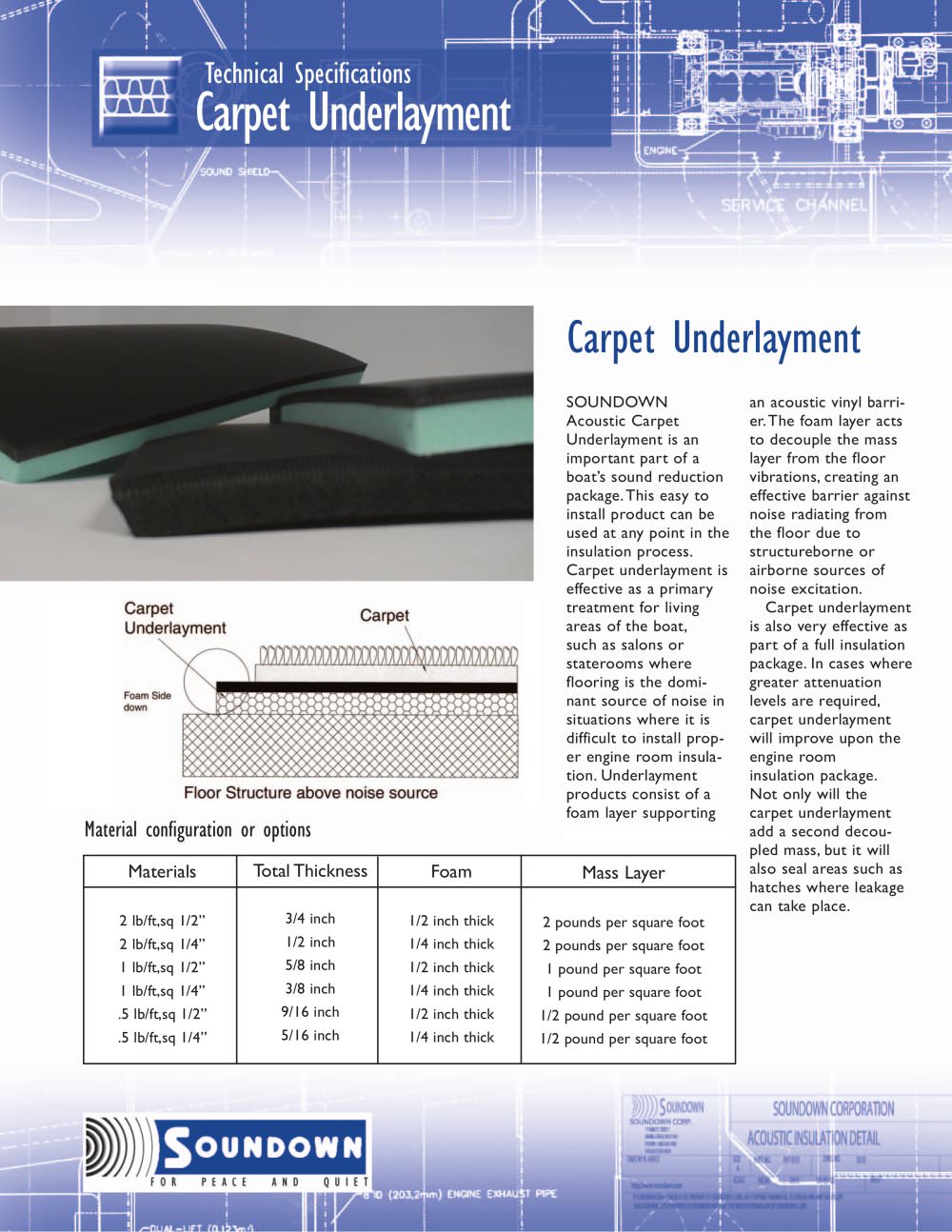

Catalog excerpts

Foam Side Floor Structure above noise source Material configuration or options Carpet Underlayment Acoustic Carpet boat's sound reduction insulation process. staterooms where nant source of noise in difficult to install prop- er engine room insula- tion. Underlayment foam layer supporting an acoustic vinyl barri- er. The foam layer acts layer from the floor effective barrier against noise radiating from noise excitation. Carpet underlayment is also very effective as part of a full insulation package. In cases where greater attenuation carpet underlayment will improve upon the engine room insulation package. carpet underlayment pled mass, but it will also seal areas such as hatches where leakage IISOUNOBI SOUNDOWN CORPORATION SOUNDOWN CORP JAL—LIFT fOLlbSïi'l ■TlO {2t».2fjwri> ENGINE EXHAUÎT PIPE

Open the catalog to page 1
