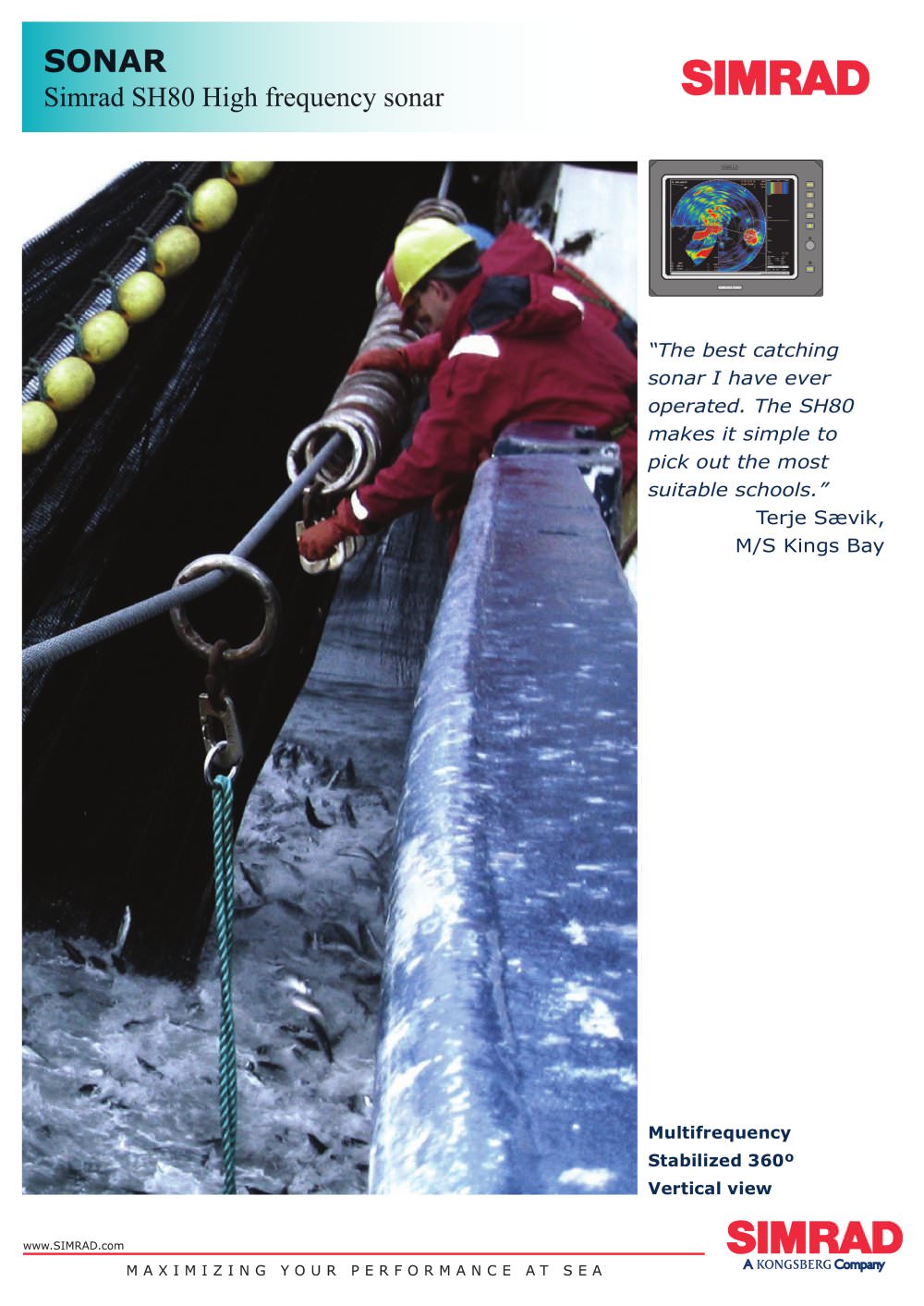

Simrad SH80 High frequency sonar sonar I have ever suitable schools. " Terje Saevik, Vertical view MAXIMIZING YOUR PERFORMANCE AT SEA

When the fish are scattered, located near the bottom, or by nature emit weak echoes, they are best shown on a high frequency sonar. Simrad SH80 gives you high frequency and high efficiency. High frequency is favourable because it provides better resolution and target separation. A high frequency sonar is thus the best and most efficient tool to find and track difficult targets. Simrad SH80 is a unique high frequency sonar. It stands out as a • The only sonar with 360 degrees stabilized beam • The only sonar with vertical view • The only sonar with multi- frequency capability. These are...

Vertical view With the vertical view - which retrieve lots of valuable information about your target. school? When does it raise? How large is it? Is there more than one? What does the school look like? All of these questions are easily answered using a well designed and stabilized high resolution vertical view. The vertical view around the vessel, and will follow the target automatically if target tracking has been enabled. This allows you time to concentrate on more important tasks in a hectic phase. The vertical view allows you to fish more efficient because you can easily pick the right...

Transceiver Unit Hull Unit Width (A): Height (B): Depth: Processor Unit Note: The drawings are not in scale. Unique functions • Full stabilization • Vertical view • Adjustable vertical beam width; Narrow, Normal or Wide • Dual mode: "Two sonars in one!" • Recording function • Unlimited number of user • Automatic tracking of three targets simultaneously • Hull Unit designed fro 20 knots speed during lowering and • Separate adjustment of gain and filters for horizontal and vertical provides clear and distinct echo • The last ping is memorized, this provides a seamless range • Easy-to-use...

ALWAYS AT THE FOREFRONT OF TECHNOLOGY

"The Simrad Sonar tracked targets other sonars couldn't see" Simrad's new sonars offer short and long range performance using advanced wide band transducer design combined with digital transmitting and receiving technology. A frequency modulated (FM) transceiver with special filters enhances fish detection and definition under difficult conditions, while extending the detection range. Clear presentation Great emphasis has been placed on giving the best possible overview in the search and catch situation. The result is several display modes, where the favorites easily can be selected on the...

Evaluate the school while still tracking up to 3 other targets A school offish is detected and tracked by the sonar. The school's swimming speed, swimming direction and swimming history are shown on the screen. This helps the skipper to find the right time and position for setting the net. The yellow purse seine symbol is set around the school. The seine dimensions are entered into the sonar for up to three different purse seines. When using the PI32 and depth sensors, each mark will have depth and sink rate values indicated on the screen next to the markers. Purse seine data The seine...

Full control of the school - from detection to catch... A high performance low frequency echosounder is -part of the sonar when installing the 90° tilt option. The actual vertical position of the trawl symbol, from a Simrad trawl system, is a real advantage when pelagic trawling. In the sonar Omni/Echosounder/forward 90° Mode, you have a complete omni directional picture with a forward-looking 90° fan sweeping automatically from side to side. The vertical front view gives an earlier and considerably wider detection area than a standard echosounder, enabling targets outside of the vessel...

Simrad SH80 - 116kHz high definition FM Sonar Ideal for mackerel and tuna detection Detects weak and scattered targets under difficult conditions Ideal as "Catching machine" Stabilized during transmission and reception Multi frequency for interference avoidance Same operation and "Sonar Operating Panel" Simrad SP70 - Low frequency long range FM Sonar • Vertical presentation mode - can be set in any direction - Shows 60° vertical distribution of the school, • Multi frequency from 20 - 30kHz gives longer detection range and larger search area • Dual sonar operating modes for increased...

2) Multiple frequency: 20 to 30kHz in 1kHz step For fast swimming fish like tuna, the quick transmission rate combined with the stabilized view is essential for hunting

The future with Simrad... The state of the art operating system allows for future expansion and lifetime upgrade. Since the Simrad sonar is software driven, all future improvements, features and updates can be put into your sonar without changing expensive hardware. With Simrad you will always have the latest sonar model available. An easy to read operation menu, in your language, operated from a remote roller ball. Dimmer facility controls best operation when dark. Compass rose with date, Easy selection of your trawl or purse seine symbol more detailed information Sets the vessel...

Technical Specifications 20" Color LCD Monitor 63 mm (2.5") 18" Color LCD Monitor 63 mm (2.5") Processor Unit Operating Panel Transceiver Unit Range (min/max): Omni mode: Single Beam: Detection Range: Horizontal beam: Vertical beam: Mains supply: Display Unit: Processor Unit: Transceiver Unit: Hull Unit: Transducer lowering Raising time: Triple frequency: Multiple frequency: Beam stabilization: Gyro Interface: Hull Unit: Cylindrical with 480 elements Speed log, Gyro, GPS, Echo- sounder, ITI/FS Trawl system, Analog to serial line converter Spherical with 241 elements Speed log, Gyro, GPS,...

Simrad SH40 high frequency sonar SH40 Operating panel Hull unit www.SIMRAD.com M A X I M I Z I N G Y O U R P E R F O R M A N C E A T S E A
