Aqua King™ Premium Fresh Water Pump

Aqua King™ Premium Fresh Water Pump

Product catalog summary

Product Overview: The document is a product sheet for a marine potable water pump, specifically the SHURflo Premium Parts Kit. It is designed for multi-fixture marine potable water installations and can also be used in 12 VDC pressurized water systems in cabins.

Specifications:

Pump Type: 3 Chamber Diaphragm
Ports: 1/2”-14 NPSM-Male
Liquid Temperature: Max 130 °F [54 °C]
Prime: 9 feet [2.7 M]
Inlet Pressure: Max 30 PSI [2.1 Bar]
Run Dry Capability: Yes

Electrical Specifications:

Motor: 12VDC Permanent Magnet, Continuous Duty
Protection: Thermal Overload, Automatic Restart
Leads: 14 AWG, 36” [40 cm] Red +, 38” [33 cm] Black -
Fuse: 15 Amp Time Delay Recommended
Control: Adjustable Switch with Check Valve
Shut-Off Pressure: 45 PSI [3.1 Bar] ± 5 PSI [0.4 Bar]
Restart Pressure: 25 PSI [1.8 Bar] ± 5 PSI [0.4 Bar]

Materials:

Housing: Polypropylene
Valves: EPDM
Diaphragm: Santoprene
Hardware: Stainless Steel

Approvals: UL Marine, Ignition Protected, ISO 8846, c-UL

Warranty: 1 Year Limited Warranty (See SB-1050 for full details)

Shipping Information:

Net Weight (Boxed): 7 Lb [3.2Kg] each
Carton Weight: 6 each, 42 Lb [24 Kg]
Carton Size: 24”L x 11”W x 6”H [61cm x 28cm x 16cm]

Related Documents: Catalog MS-030-084, Installation Manual 911-448, Maintenance 911-448, Applications Spec Guide MS-020-005, Warranty SB-1050

Performance Data: The pump's performance at various pressures is detailed, showing flow rates and current draw at different PSI levels.

Contact Information: SHURflo contact details for various locations are provided for further inquiries.

Catalog excerpts

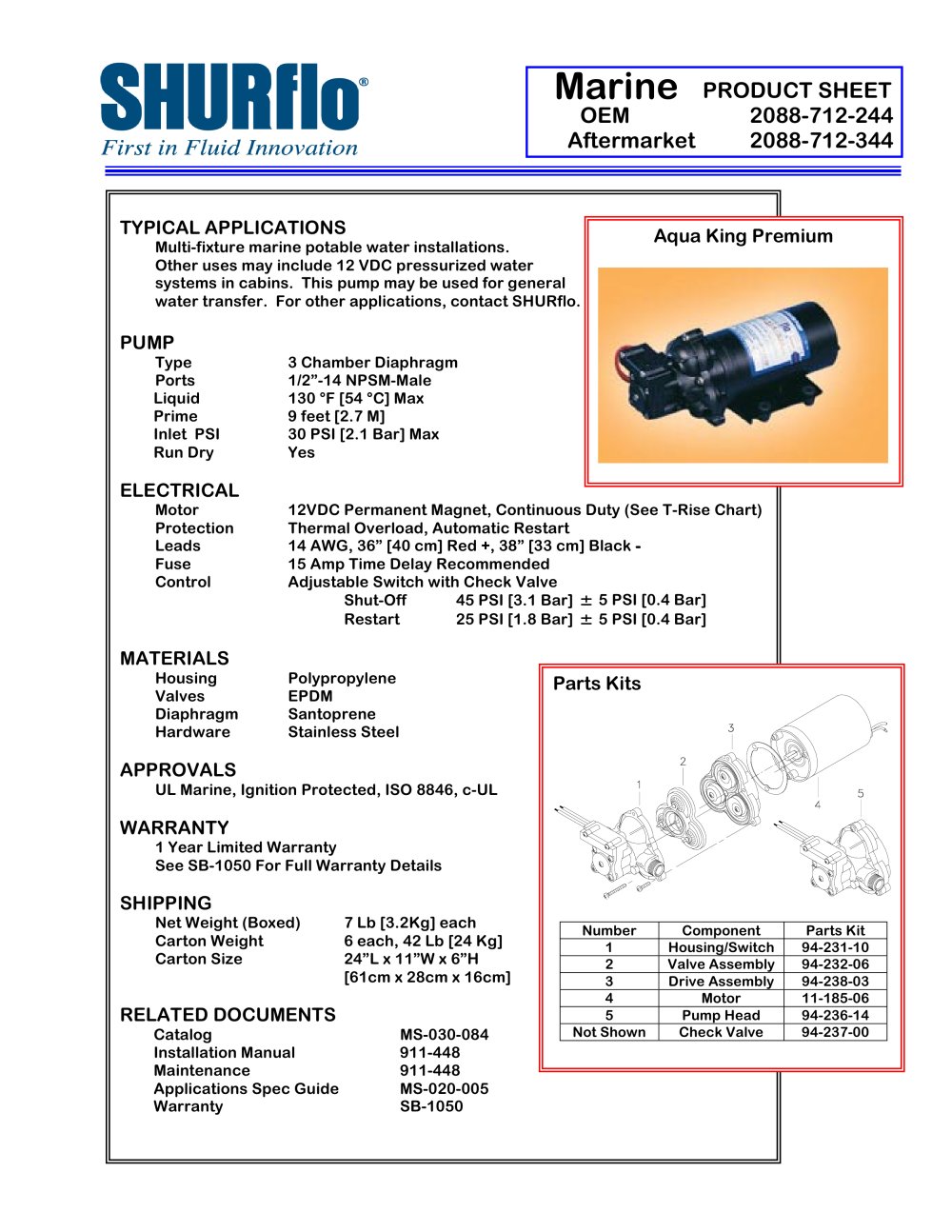

First in Fluid Innovation Marine PRODUCTSHEET TYPICAL APPLICATIONS Multi-fixture marine potable water installations. Other uses may include 12 VDC pressurized water systems in cabins. This pump may be used for general water transfer. For other applications, contact SHURflo. 12VDC Permanent Magnet, Continuous Duty (See T-Rise Chart) Thermal Overload, Automatic Restart 15 Amp Time Delay Recommended Adjustable Switch with Check Valve Stainless Steel UL Marine, Ignition Protected, ISO 8846, c-UL 1 Year Limited Warranty See SB-1050 For Full Warranty Details Carton Weight Carton Size RELATED DOCUMENTS Applications Spec Guide MS-020-005 Parts Kits

Open the catalog to page 1

First in Fluid Innovation Marine PRODUCTSHEET OEM: 2O88-712-244 Aftermarket: 2088-712-344 TYPICAL MOTOR SHELL T-RISE @45 PSI TIME, MINUTES Typical Dimensions First in Fluid Innovation SHURflo reserves the right to update specifications, prices, or make substitutions. SHURflo ★ SHURflo East SHURflo Ltd. 12650 Westminster Ave. 52748 Park Six Court Unit 5 Sterling Park Gatwick Road, Crawley United Kingdom
