Linear actuator for trim tabs

Product catalog summary

Overview: The ANTUATOR trim tab actuators are designed for precision and durability, offering quiet operation without the need for hydraulic systems. They are maintenance-free and feature a strong planetary gearbox to ensure longevity under high load conditions.

Specifications: The actuators are equipped with internal limit switches at both ends for reliable performance and protection. They are completely corrosion-free and waterproof, rated at IP67M, eliminating the risk of oil leaks associated with hydraulic systems.

Warranty: A 5-year warranty is provided for the ANTUATOR trim tab actuators.

Models: The document lists several actuator dimensions, including ANT-63AL-01, ANT-63AL-02, ANT-63AL-03, and ANT-63AL-04.

Catalog excerpts

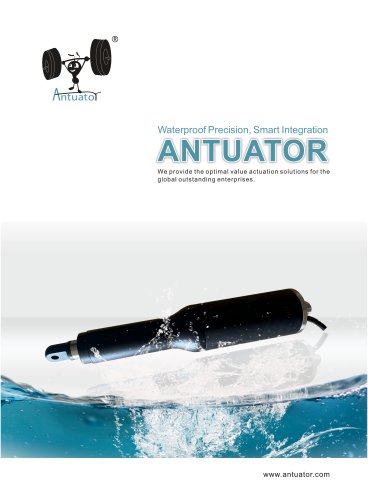

We provide the optimal value actuation solutions for the global outstanding enterprises.

Open the catalog to page 1

ANTUATOR TRIM TAB ACTUATOR ANT-63 ANTUATOR trim tab actuators are precision -engineered to combine quiet operation with a non-hydraulic, maintenance free design. A strong planetary gearbox is used to guarantee the life time of the actuator when a high load on the trim tab. Internal limit switches for both ends as the protection to ensure reliable performance. The unit is totally corrosion free and water proof with IP67M.Unlike hydraulic trim tabs, there is no oil to leak out with ANTUATOR trim tab actuators. 5 years warranty is oﬀered.

Open the catalog to page 2

Actuator Dimension

Open the catalog to page 3

Actuator Dimension

Open the catalog to page 4

Please note that ANTUATOR is able to customize any trim tab actuator according to your special needs. If any customization needed, please contact ANTUATOR team by email.

Open the catalog to page 5

Waterproof Precision, Smart Integration Add: Room 604, Block A, No.199 Jinwan Road, Pudong New Area, Shanghai E-mail: [email protected] Official website link dimensional code We Chat link dimensional code
