Shakespeare/Vtronics 2011 Catalogue
Shakespeare/Vtronics 2011 Catalogue
This document is a comprehensive catalogue from the Shakespeare Electronic Products Group, targeting the European market with three brands: V-Tronix, Classic, and Galaxy. These brands offer a variety of antennas for different marine vessels, known for their quality and reliability, as evidenced by their use by the U.S. Coast Guard and Navy.
The catalogue features a wide range of antennas including VHF, emergency, commercial, cellular, AM/FM, AIS, Loran, ORBCOMM, SSB, TV, and WiFi antennas. Each product line is tailored to specific needs, with features like low angle radiation and hand-soldered elements for enhanced performance.
V-Tronix antennas are noted for their high quality, featuring solderless masthead connections, wind indicators, and epoxy-sealed components for extreme conditions. They are suitable for GMDSS installations and come with multi-language installation instructions.
- Easy installation with solderless connections
- Wind indicators in some models
- Durable epoxy-sealed components
- Approved for RORC racing
Shakespeare ensures product reliability through rigorous quality control and testing, with the flexibility to alter specifications for continuous improvement.
1. VHF Marine Antennas: End-fed antennas with aluminum mounts and epoxy-sealed fiberglass tubes, available with RG213 cables.
2. AIS Antennas: Rugged fiberglass tube antennas with closed-cell foam and epoxy resin, available with RG213 or RG58 cables.
3. Active VHF Antennas: Stainless steel whip antennas for receiving only, with wideband capabilities.
4. Fiberglass Antennas: Available in one or two sections, with a 50-ohm impedance.
5. TV Antennas: Slimline design for omni-directional FM/TV reception, compatible with HDTV.
1. Installation: Antennas can be mounted on horizontal or vertical poles with provided brackets and clamps.
2. Connection: Solderless connection kits facilitate easy cable termination.
1. Gain: VHF antennas offer gains of 3dBi to 6dBi, AIS antennas provide a gain of 3dBi.
2. Construction: Antennas are made with UV-resistant materials and epoxy resin for durability.
1. Compatibility: Antennas are compatible with VHF, AIS, SSB, AM/FM, Loran, WiFi, and TV systems.
2. Performance: The Classic range offers high-quality performance and value, focusing on durability and ease of installation.
Shakespeare has developed a new filter technology integrated into antennas, reducing 'Out-of-Band Interference' without external power connections, maintaining transmission range with less than 0.25dB insertion loss.
1. 5225-FLT and 5226-FLT Eliminator Series: Feature collinear-phased 5/8 wave elements and special filtering.
2. 5400-XT and 5401-XT Little Giant Series: Designed for mast mounting with a tapered fiberglass tube.
3. Extra Tough Series: Heavy-duty construction with collinear-phased 5/8 wave elements.
Antennas are made of high-gloss fiberglass, featuring collinear-phased elements with 5/8 wave for enhanced range, and a non-yellowing polyurethane finish.
Antennas should be installed as high as possible for maximum range. For antennas longer than 3 meters, intermediate support is necessary. Use RG-58 cable for lengths up to 6 meters; for longer distances, use low-loss cables like RG-8/X.
Investing in high-quality antennas like those from Shakespeare is crucial for optimal marine radio performance, ensuring reliability and superior construction.
Catalog excerpts

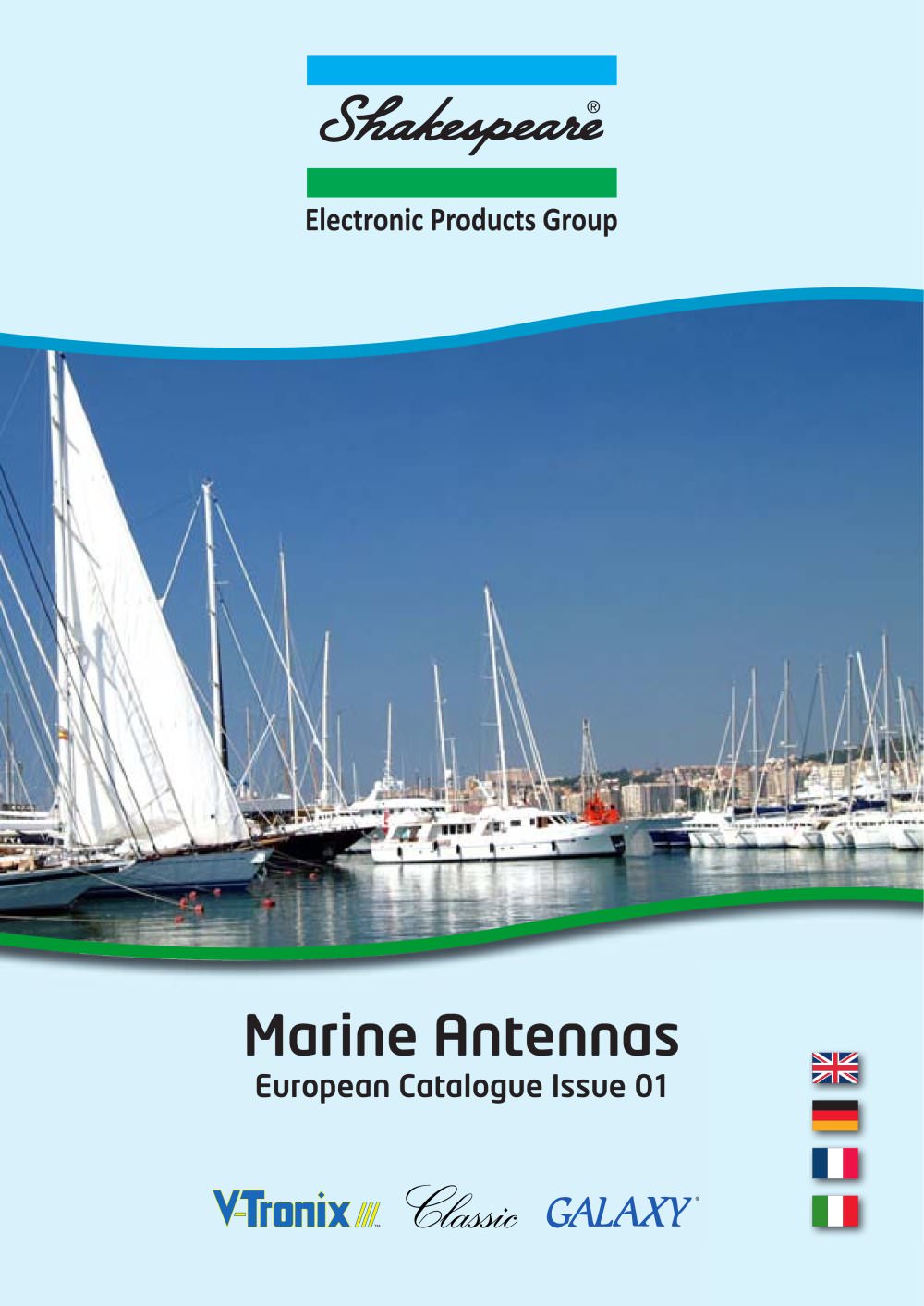

Electronic Products Group Marine fintennas European Catalogue Issue 01 VTronix céti.»ù- GALAXY'
Open the catalog to page 1
This is the first Shakespeare Electronic Products Group catalogue combining the three Shakespeare brands: - a unique range of products for sail boats, RIBs, power boats and commercial ■ Shakespeare's core range, offering customers a comprehensive range of quality antennas to suit all types of vessels and craft. . GALAXY - Shakespeare's top of the range antennas, designed for superyachts and commercial craft. The range of products reflects the strength and commitment of Shakespeare to provide the consumer with an outstanding choice of quality antennas, mounts, and accessories for all types of...
Open the catalog to page 2
Ce catalogue Shakespeare Electronic Products Group est le premier à présenter conjointement les trois marques de produits Shakespeare : -une gamme exclusive pour les voiliers, les semi-rigides, les bateaux à moteurs La gamme Shakespeare de base qui offre un éventail complet d'antennes de haute qualité correspondant à tous les types de navires et d'embarcations. . GALAXY - Les antennes de haut de gamme Shakespeares, spécialement conçues pour les superyachts et pour les applications professionnelles. La gamme de produits est la preuve de l'engagement sans faille de Shakespeare dans la production...
Open the catalog to page 3
Sail BoatVHF Sail BoatVHF RIBVHF-Stainless Steel Power BoatVHF- Fibreglass Power BoatVHF - Stainless Steel Power BoatVHF - Fibreglass Power BoatVHF - Fibreglass Cellular Antennas AM/FM Antennas Loran Antennas WiFi Antennas Loudspeakers & Hailers • Weather-Proof Loudspeaker • Loud Speakers & Hailers Adapters, Connectors & Centerpin Antenna Spare Parts Commercial Mounts Deck Plugs&Glands Mast Extensions Mast Extensions Galaxy Mount Accessories Plug Shroud Switches & Testers • Voltage Converters - PowerVecters • All About Antennas - Guide to antennas • Technical Specs
Open the catalog to page 4
V-Tronix offer a unique range of quality antennas for sail boats, RIBs, power boats and commercial vessels. V-Tronix antennas are manufactured to the highest standard and have an excellent track record in quality and reliability. Some of the key features and benefits of V-Tronix antennas: • The Hawk, Whipflex, Raider and AIS Mast antennas have unique 'solderless' connection at the mast head, making for ease of installation and removal or replacement. • The Hawk antenna includes a wind indicator as standard. • The Hawk and Whipflex models come packed with all necessary parts for installation,...
Open the catalog to page 5
Stainless Steel Whip with V-Tronix Hawk Wind Indicator 180mm flat bracket for mounting at masthead Solderless connector at Masthead 20m of RG58 cable with PL259 plug Blister packed Multi-language (17) fitting instructions V-Tronix Whipflex Stainless Steel Whip 180mm nylon cranked bracket for mounting at masthead Solderless connector at Masthead 20m of RG58 cable with PL259 plug Blister packed Multi-language (17) fitting instructions Stainless Steel Whip Antenna 180mm aluminium cranked bracket for masthead mounting Watertight strong construction MD 20 supplied with 20m RG58 cable with PL259 plug...
Open the catalog to page 6
• Short Helical VHF Antenna • Does not require ground plane • Over-moulded helical • MD 23 supplied with 20m RG58 cable with PL259 plug • MD 23N fitted with integrated N Jack to allow detachable • Kurze, spiralförmige Antenne • Flachprofil & geringes Gewicht (300 g) • Geringer Ventilationsverlust • Keine Grundplatte erforderlich • MD 23N: mit integriertem N-Stecker fur abnehmbares • Ultra lightweight Helical VHF Antenna • Low windage antenna for race yachts • Integral aluminium masthead fitting • 20m of RG58 cable with PL259 plug • Does not require ground plane • Blister packed • Sehr leichte,...
Open the catalog to page 7
• RV120- 1.5m, Fibreglass VHF Antenna with stainless steel • RV120P- 1.5m, Fibreglass VHF Antenna with white polycarbonate ferrule • Ideal for smaller power boats and work boats • White tapered fibreglass tube • 6m RG58 cable with PL259 plug • Recommended Ratchet Mounts : • 1.5m, Fibreglass VHF Antenna with white polycarbonate ferrule, including Ratchet Mount • Ideal for smaller power boats and work boats • White tapered fibreglass tube • Supplied complete with white nylon Ratchet Mount • 6m RG58 cable with PL259 plug • 2.4m, Fibreglass VHF Antenna with stainless steel ferrule • Ideal for larger...
Open the catalog to page 8
Power Boat Cellular ShoreLink Emergency VHF Antenna Sealed in waterproof container Stored easily on bulkhead or in flare pack 6m of miniature co-axial cable (RG174) with PL259 plug Compulsory for R.O.R.C, racing Blister packed 1.5m, Cellular Antenna Dual Band with white polycarbonate ferrule White tapered fibreglass tube 7.6m LoMax cable with TNC connector Recommended Ratchet Mount is 4186 2.4m, Cellular Antenna Dual Band with stainless steel White tapered fibreglass tube 7.6m LoMax cable with TNC connector Recommended Ratchet Mounts are 4187 and 5187 • Shorelink Notantenne • Versiegeit in wasserdichtem...
Open the catalog to page 9
VTronixfz VTronix/f 1.5m Fibreglass AM/FM Antenna. Polycarbonate ferrule 2.4m Fibreglass AM/FM Antenna Stainless steel ferrule. • 1,50 m Lânge,AM/FM-Antenne aus Glasfaser • 2,40 m Lànge, AM/FM-Antenne aus Glasfaser • Polycarbonat-Hiilse • Edelstahlhiilse • Empfohlene Halterung: 4186 • Empfohlene Halterungen: 4187, 4187-HD, 5187 Antenne AM/FM fibre de verre 1,5 m Férule polycarbonate Antenne fibre de verre AM/FM 2,4 m Férule acier inox • Antenna AM/FM di 1.5m in fibra di vetro. • Fermi consigliati sono il 4186 • Antenna AM/FM di 2.4m in fibra di vetro. • Ghiera in acciaio inossidabile • Fermi...
Open the catalog to page 10
Heavy Duty Marine VHF Dipole Rugged fibreglass tube Closed cell foam and epoxy resin sealed Complete with two 4715 clamps 1 m of RG213 cable fitted with 'N' jack Heavy Duty Marine Colinear VHF Rugged fibreglass tube Closed cell foam and epoxy resin sealed Complete with two 4715 clamps 1 m of RG213 cable fitted with 'N' jack Heavy Duty Marine, End-Fed, VHF Antenna Integral aluminium mounts for bulkhead mounting White, tapered fibreglass tube Epoxy resin sealed 8m of RG58 cable fitted with PL259 plug UKW-Hochleistungsantenne, Dipol-Antenne Robustes Glasfaserrohr Komplett mit zwei 4715 Klemmen UKW-Hochleistungsantenne,...
