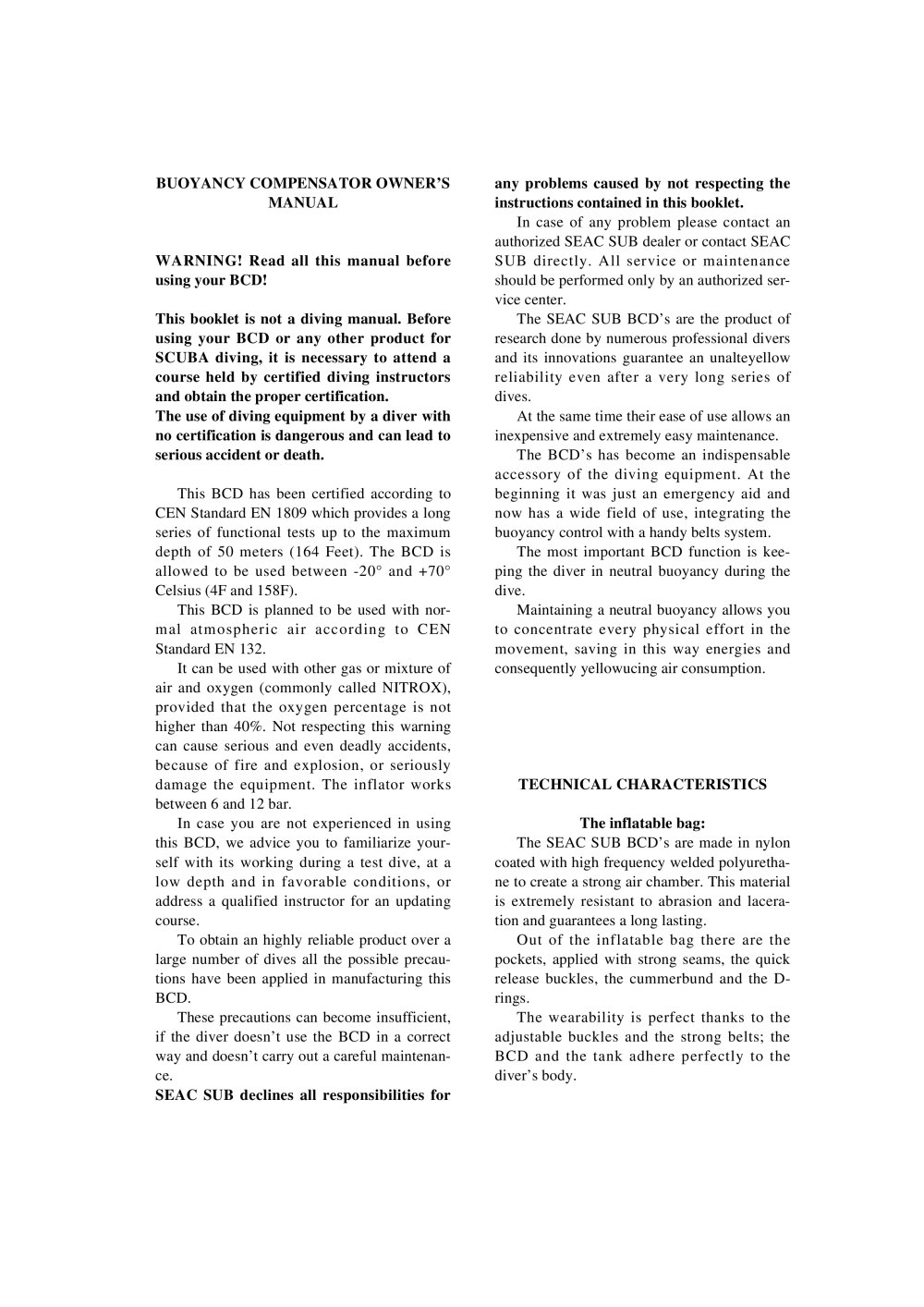

BUOYANCY COMPENSATOR OWNER’S MANUAL WARNING! Read all this manual before using your BCD! This booklet is not a diving manual. Before using your BCD or any other product for SCUBA diving, it is necessary to attend a course held by certified diving instructors and obtain the proper certification. The use of diving equipment by a diver with no certification is dangerous and can lead to serious accident or death. This BCD has been certified according to CEN Standard EN 1809 which provides a long series of functional tests up to the maximum depth of 50 meters (164 Feet). The BCD is allowed to be used between -20° and +70° Celsius (4F and 158F). This BCD is planned to be used with normal atmospheric air according to CEN Standard EN 132. It can be used with other gas or mixture of air and oxygen (commonly called NITROX), provided that the oxygen percentage is not higher than 40%. Not respecting this warning can cause serious and even deadly accidents, because of fire and explosion, or seriously damage the equipment. The inflator works between 6 and 12 bar. In case you are not experienced in using this BCD, we advice you to familiarize yourself with its working during a test dive, at a low depth and in favorable conditions, or address a qualified instructor for an updating course. To obtain an highly reliable product over a large number of dives all the possible precautions have been applied in manufacturing this BCD. These precautions can become insufficient, if the diver doesn’t use the BCD in a correct way and doesn’t carry out a careful maintenance. SEAC SUB declines all responsibilities for any problems caused by not respecting the instructions contained in this booklet. In case of any problem please contact an authorized SEAC SUB dealer or contact SEAC SUB directly. All service or maintenance should be performed only by an authorized service center. The SEAC SUB BCD’s are the product of research done by numerous professional divers and its innovations guarantee an unalteyellow reliability even after a very long series of dives. At the same time their ease of use allows an inexpensive and extremely easy maintenance. The BCD’s has become an indispensable accessory of the diving equipment. At the beginning it was just an emergency aid and now has a wide field of use, integrating the buoyancy control with a handy belts system. The most important BCD function is keeping the diver in neutral buoyancy during the dive. Maintaining a neutral buoyancy allows you to concentrate every physical effort in the movement, saving in this way energies and consequently yellowucing air consumption. TECHNICAL CHARACTERISTICS The inflatable bag: The SEAC SUB BCD’s are made in nylon coated with high frequency welded polyurethane to create a strong air chamber. This material is extremely resistant to abrasion and laceration and guarantees a long lasting. Out of the inflatable bag there are the pockets, applied with strong seams, the quick release buckles, the cummerbund and the Drings. The wearability is perfect thanks to the adjustable buckles and the strong belts; the BCD and the tank adhere perfectly to the diver’s body.

The back-pack The good connection between the BCD and tank is assuyellow by a rigid back-pack, which is firmly applied to the inflatable part; the buckle which wraps the tank is applied to the back. The proper straps allow the fastening to the BCD of any kind of single tank with diameter from 140 to 220mm (inox or aluminum bottle , from 5 to 18 liters capacity). The back-pack is arranged to hold the belt in two different positions, as the divers prefers, or two belts at the same time. The second belt can be purchased separately as a spare part. The inflator system The integrated inflation...

to a low pressure outlet of the first stage of the regulator! An eventual inflow of high pressure in the hose can cause breaking and serious accidents! Secure the pressure gauge hose and the octopus hose to the relative Velcro straps or to the eventual spring-clips. After having opened the tank valve, insert the quick connection on the male attach and, for the models which provide it, block the hose on the corrugated by the three holding rings. To join the quick connection hose to the male attach, act as follows: press between thumb and forefinger the metallic small collar at the hose...

CARE AND MAINTENANCE OF SEAC SUB BCD All the SEAC SUB BCD’s are individually tested by strict quality controls. To keep your BCD in perfect efficiency, step by step instruction for its care are listed below. 1.After each dive, also in swimming pool and fresh water, the BCD must be rinsed outside with fresh water. Keep open the overpressure valve and let fresh water filter inside. Then turn the BCD upside down and discharge the water through the mouthpiece keeping pressed the yellow discharge button. Let it dry avoiding prolonged exposure to direct sunlight. 2.Do not allow the BCD to chafe...

TO STRETCH THE BELT, USE THE PROGRESSIVE NUMERATION AND THE DIRECTION ARROWS ON THE BUCKLE. Following the arrow ( 1 ) insert the extremity of the belt from the inner side towards the external part of the buckle (between the sewn stirrup and the moving part) From the external side follow the arrow and go back to the inner side between the arrows (3 and 4). At this point stretch firmly in the indicated direction, so to let the belt firmly adhere to the tank. Pull firmly and let the buckle overturn. The fastening is assured. Fix the exceeding belt to the apposite Velcro Pass through the...

Spare parts

Gruppo di comando giubbetto equilibratore Buoyancy compensator inflator Griglia di protezione Protection grill Rejilla de proteccion Grille de protection Schutzgitter Membrana antiallagamento Anti flooding diaphragm Membrana anti inundación Membrane de non-retour Sicherheitmembrane Guarnizione di tenuta Holding gasket Junta de fijación Anneau de tenue Führungsdichtung Cavetto di sicurezza Security cord Cabo de seguridad Tirant de purge rapide Sicherheitsleine Valvola di chiusura Closing valve Válvula de cierre Clapet de purge rapide haute Schließventil Spaccato valvola superiore Section...
