Technical data

Technical data

Product catalog summary
Technical Specifications Overview:
  • Models: SEABOB RAVEJET, SEABOB JET 4.12, SEABOB CAYAGO VX2, SEABOB CAYAGO F7
  • Shell: Hard-integral plastic technology
  • Motor Performance: Ranges from 2.2 kW (3 HP) to 5.2 kW (7 HP)
  • Maximum Torque: 12 Nm to 22 Nm
  • Drive Thrust: 349 N to 734 N
  • Speed: Over water: 10 km/h to 20 km/h; Underwater: 8 km/h to 14 km/h
  • Motor Control: Electronic speed control with 10 power levels via piezo buttons
  • Energy: SEABOB-Power High-Energy Li-Ion accumulators, varying from 8 to 14 cells
  • Total Capacity: 1.2 kW/h to 2.1 kW/h
  • Operating Time: 60 to 75 minutes
  • Charging Time: Standard: 6-12 hours; Quick: 90-110 minutes
  • Accumulator Change System (ACS): Available in VX2 and F7 models for continuous operation
  • Steering: By shifting body weight
  • Stopping: Water resistance stops the SEABOB quickly when drive is off
  • Diving Depth: Safety cut-off at 2.5 meters; maximum depth of 40 meters
  • Dimensions: L x W x H: 1,296 x 481 x 379 mm; without accumulator box: 1,058 x 481 x 379 mm (VX2 and F7)
  • Weight: 59 kg to 64 kg
  • Buoyancy: 8 kg to 14 kg
  • Extras: Chrome design display panel and labelling in VX2 and F7
  • Special Equipment: Securing device for pilot belt system in F7
See more

Catalog excerpts

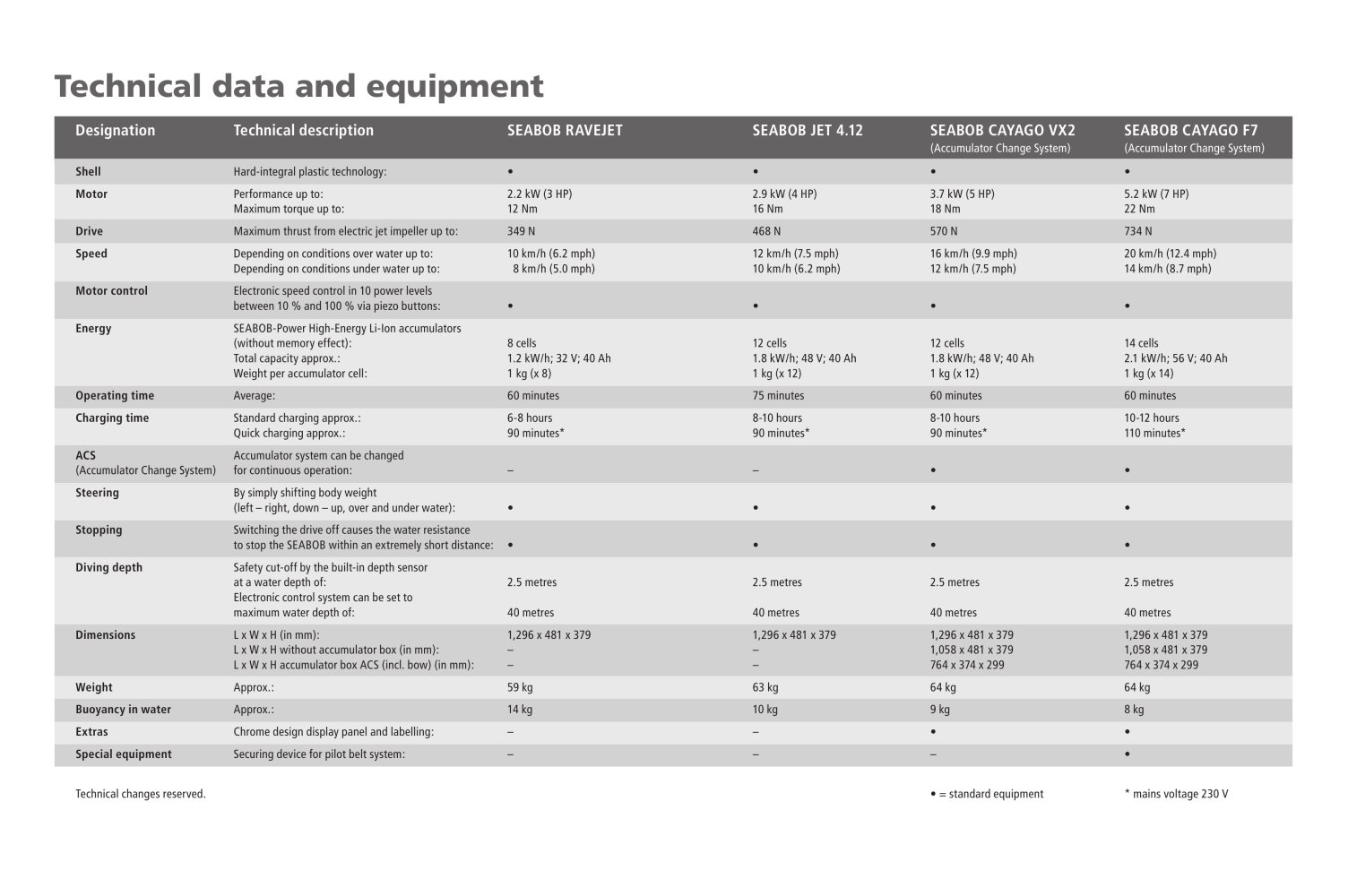

Technical data -1

Technical data and equipment Designation Technical description SEABOB RAVEJET Motor control Operating time Charging time (Accumulator Change System) Diving depth Special equipment Hard-integral plastic technology: Maximum thrust from electric jet impeller up to: Depending on conditions over water up to: Depending on conditions under water up to: Electronic speed control in 10 power levels between 10 % and 100 % via piezo buttons: SEABOB-Power High-Energy Li-Ion accumulators (without memory effect): Total capacity approx.: Weight per accumulator cell : Standard charging approx.: Quick charging approx.: Accumulator system can be changed By simply shifting body weight (left - right, down - up, over and underwater): Switching the drive off causes the water resistance to stop the SEABOB within an extremely short distance: Safety cut-off by the built-in depth sensor Electronic control system can be set to maximum water depth of: Chrome design display panel and labelling: Securing device for pilot belt system: Technical changes reserved. SEABOB CAYAGO VX2 SEABOB CAYAGO F7 (Accumulator Change System) (Accumulator Change System)
