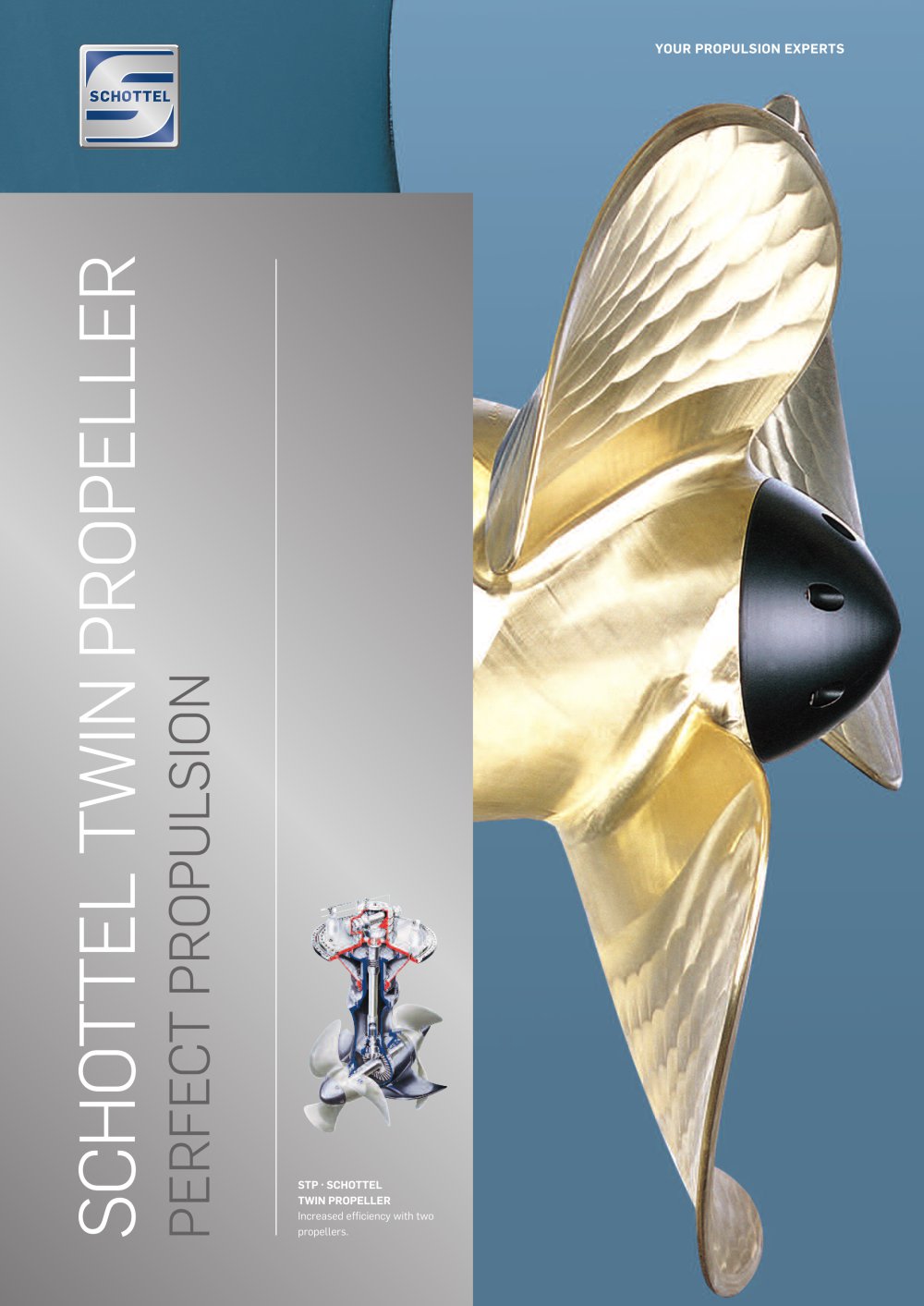

PERFECT PROPULSION SCHOTTEL TWIN PROPELLER YOUR PROPULSION EXPERTS STP · SCHOTTEL TWIN PROPELLER Increased efficiency with two propellers.

SCHOTTEL TWIN PROPELLER – RUDDERPROPELLER WITH TWO PROPELLERS The SCHOTTEL Rudderpropeller (SRP) has been setting standards in the field of steerable propulsion systems for decades. Proven in service worldwide, this system converts the engine power into optimum thrust power and also offers the possibility of rotating the underwater part through 360°, thus allowing the full input power to be used for manoeuvring the ship. loads. This is because the Twin Propeller technology reduces the load acting on each individual propeller by distributing the power over two propellers, thereby increasing...

STP · Twin Propeller Power input Upper gearbox Steering gear Installation flange Vertical power transmission shaft Push propeller Pull propeller Underwater gearbox Propeller shaft • Distribution of the power to 2 propellers results in a low propeller load • Recovery of the swirl losses of the pull propeller by means of the integrated diffuser system consisting of strut and fins • Streamlined propeller housing • Substantially higher efficiency than Z drives with a single propeller • Higher power transmission possible than with a single propeller • Lower risk of cavitation due to the lower...

MAXIMUM RELIABILITY IN ALL APPLICATIONS OFFSHORE SUPPORT VESSELS The STP produces not only higher thrust in open-water service but also higher static thrust than a single open propeller Z-drive and is thus also outstandingly suitable for offshore support vessels with dynamic positioning requirements. The low pressure fluctuations and noise emissions along with the application potential for high open-water speeds make the STP ideal for propelling yachts and passenger vessels of all types. OFFSHORE SUPPORT VESSEL HAVILA BORG 2 x SCHOTTEL Twin Propeller Type STP 1212 (1600 kW each) FERRY SYLT...

INSTALLATION IN THE WATER OR DRY-DOCK The STP can be installed in a dry-dock from below with the aid of a flange. When installed from below, the STP can be either bolted or welded to the flange. Installation from above is also possible, thus the unit can be installed even if the vessel is already afloat. This allows maintenance or exchange even if there is no dry-dock available. STANDBY VESSEL VOS INNOVATOR 2 x SCHOTTEL Twin Propeller Type STP 550 (750 kW each) ELECTRIC OR HYDRAULIC STEERING The STP can be supplied with either hydraulic or fully electric steering. A fully electric steering...

STEERING SYSTEMS – PRECISE AND USER-FRIENDLY Propulsion systems are only as good as their steering. Optimally adapted data exchange between the different components (propulsion units and joystick or steering console) is therefore top priority. A further priority is a user interface that is as intuitive as possible, enabling safe manoeuvring even with frequent changes of master. Here too, SCHOTTEL steering systems set the course, both literally and figuratively. In close cooperation, electronics engineers and propulsion specialists develop complete steering and control systems (SST)...

STP · Twin Propeller STANDBY VESSEL VOS INNOVATOR 2 x SCHOTTEL Twin Propeller Type STP 550 (750 kW each) HOTEL VESSEL A-ROSA AQUA 4 x SCHOTTEL Twin Propeller Type STP 200 (300 kW each) STANDBY VESSEL OCV ATLANTIS DWELLER 2 x SCHOTTEL Twin Propeller Type STP 1010 (1100 kW each) FIELD SUPPORT VESSEL VOS SEEKER 2 x SCHOTTEL Twin Propeller Type STP 550 (800 kW each) PLATFORM SUPPLY VESSEL SEABED VIKING 2 x SCHOTTEL Twin Propeller Type STP 1212 (1600 kW each) MOTOR YACHT WATERLILY 2 x SCHOTTEL Twin Propeller Type STP 440 (746 kW each) DOUBLE-ENDED FERRY STAVANGERFJORD 4 x SCHOTTEL Twin Propeller...

PROFESSIONAL PARTNERSHIP -THROUGHOUT THE VESSEL’S LIFE As a SCHOTTEL customer, you benefit from individual, in-depth advice and support at all stages of a project, from planning and commissioning through to preventive maintenance. A dense worldwide service network is ready to offer assistance and ensures the swift supply of spare parts - along with experienced SCHOTTEL technicians if required. The name of SCHOTTEL traditionally stands for quality in engineering, with over 90 years of experience in design and the precision workmanship of a family-owned enterprise. Our innovative propulsion...
