120 SERIES

120 SERIES
1 / 1 PageView full catalog

120 SERIES

Product catalog summary
Specifications:
The document outlines the specifications for the Series 120 Gen 2 Furler Set, including various components such as the furler, shackles, and accessories. Key specifications include:
  • Furler & Shackle: Maximum Working Load (MWL) of 1800kg (3970lb), Breaking Load (BL) of 3600kg (7940lb), and a weight of 383g (13.5oz). The furler line diameter is 8mm (5/16").
  • Top Swivel & Shackle: MWL of 1800kg (3970lb), BL of 3600kg (7940lb), and a weight of 162g (5.7oz).
Accessories:
  • Snap Shackle Adaptor: MWL of 1280kg (2820lb), BL of 3850kg (8490lb), and a weight of 130g (4.6oz).
  • 2:1 Fairlead: MWL of 1760kg (3880lb), BL of 4100kg (9040lb), and a weight of 96g (3.4oz).
  • Thimble: Made from anodised AL6061, weighing 23g (0.8oz).
  • HR Shackle: BL of 4400kg (9700lb), weighing 55g (1.9oz).
  • Furler Rotation Stop: Weighs 10g (0.3oz).
  • Top Swivel Lashing Pin: MWL of 1800kg (3970lb), BL of 3600kg (7940lb), and a weight of 48g (1.7oz).
  • Quick Release Pin: MWL of 1800kg (3970lb), BL of 3600kg (7940lb), and a weight of 14g (0.5oz).
See more

Catalog excerpts

120 SERIES-1

SPECIFICATION SHEET FURLER & SHACKLE MWL = 1800kg (3970lb) BL = 3600kg (7940lb) WEIGHT * = 383g (13.5oz) FURLER LINE Ø = 8mm (5/16") SHACKLE = 8mm HR RS212010 - TOP SWIVEL & SHACKLE WITH FLUSH PIN MWL = 1800kg (3970lb) BL = 3600kg (7940lb) WEIGHT * = 162g (5.7oz) SHACKLE = 8mm HR *Weight doesn't include Shackle 22.0 RS212040 - THIMBLE MATERIAL = AL6061, ANODISED WEIGHT = 23g (0.8oz) RS212050 - HR SHACKLE, 8mm (PLUS FLUSH PIN) BL = 4400kg (9700lb) WEIGHT = 55g (1.9oz) RS212070 - FURLER ROTATION STOP WEIGHT = 10g (0.3oz) RS212020 - SNAP SHACKLE ADAPTOR MWL = 1280kg (2820lb) BL = 3850kg (8490lb) WEIGHT = 130g (4.6oz) RS212080 - TOP SWIVEL LASHING PIN, 8mm MWL = 1800kg (3970lb) BL = 3600kg (7940lb) WEIGHT = 48g (1.7oz) RS212090 - QUICK RELEASE PIN, 8mm MWL = 1800kg (3970lb) BL = 3600kg (7940lb) WEIGHT = 14g (0.5oz) THE DOCUMENT & THE DESIGN ON IT IS THE EXCLUSIVE PROPERTY OF RONSTAN INTERNATIONAL PTY. LTD. & IS THE SUBJECT OF COPYRIGHT. Series 120 Gen 2 Furler Spec Sheet

 Open the catalog to page 1

All Ronstan catalogs and brochures

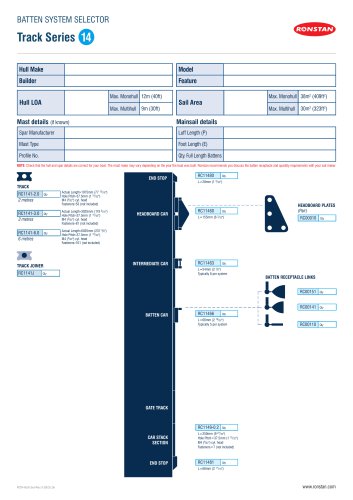

  1. BATTEN SYSTEM SELECTOR
