RS100 PUMP-OUT PEDESTAL
RS100 PUMP-OUT PEDESTAL
- Hot-dipped galvanized steel internal chassis
- UV-stabilized external shell
- 360-degree low energy LED lighting
- 10m ship-to-shore hose
- 30-minute run-dry safety failure
- Valve operated euro-probe with optical viewing lens
- Built-in variable setting pump-out timer, non-return valve, and electrical protection switchgear
- Free-to-use or pay-to-use options
- Easy installation
- Materials: ABS Granulate Natural Polyethylene, Hot-Dipped Galvanized Steel, Powder Coated Aluminum/304 Stainless Steel
- IP Rating: IP65 Weather Proof
- Weight: 40kg (including pump), 17.5kg (pump only)
- Operating Temperature: -30°C to +60°C
- Dimensions: 480mm x 1255mm x 480mm (W x H x D)
- Voltage: 230v or 400v (1Ø or 3Ø)
- Type: RS100
- Maximum Operation Pressure: 1.6 Bar
- Voltage: 230v and 400v (1Ø or 3Ø)
- Weight: 17.5kg
- Flow Rate: Up to 80 l/min at 0 meters with clean water
- Type: 360 Degree Low Energy LED
- Rating: 4300k 4x1 Watt
- Shell colors and materials
- Branding vinyls
- Payment facility
- Keyswitch control
- CE Certified
- BS7671 Wiring Regulations
- BS EN 61439-2:2011, BS EN 61439-5:2015
- Low Voltage Directive 2014/35/EU
- Electromagnetic Directive 2014/30/EU
- Corrosion Resistant / Salt Mist Tested Panels ISO 9227
- Flame Retardant to UL94
Catalog excerpts

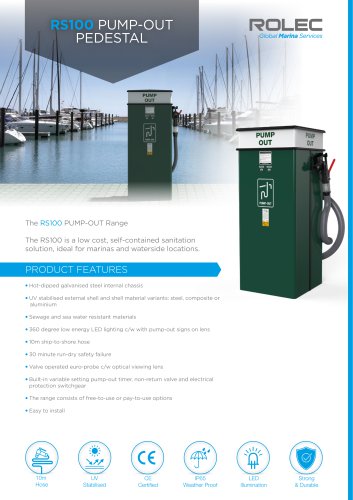

Global Marina Services PEDESTAL PUMP The RS100 is a low cost, self-contained sanitation solution, ideal for marinas and waterside locations. PRODUCT FEATURES • Hot-dipped galvanised steel internal chassis • UV stabilised external shell and shell material variants: steel, composite or aluminium • Sewage and sea water resistant materials • 360 degree low energy LED lighting c/w with pump-out signs on lens • 30 minute run-dry safety failure • Valve operated euro-probe c/w optical viewing lens • Built-in variable setting pump-out timer, non-return valve and electrical protection switchgear • The range consists of free-to-use or pay-to-use options
Open the catalog to page 1
• Shell colours and materials • Branding vinyls • Payment facility • Keyswitch control Images are for marketing purposes only and are not contractual © 2017 Rolec Services Ltd Ralphs Lane, Frampton West Boston, Lincolnshire UK. PE20 1QU
